Overview

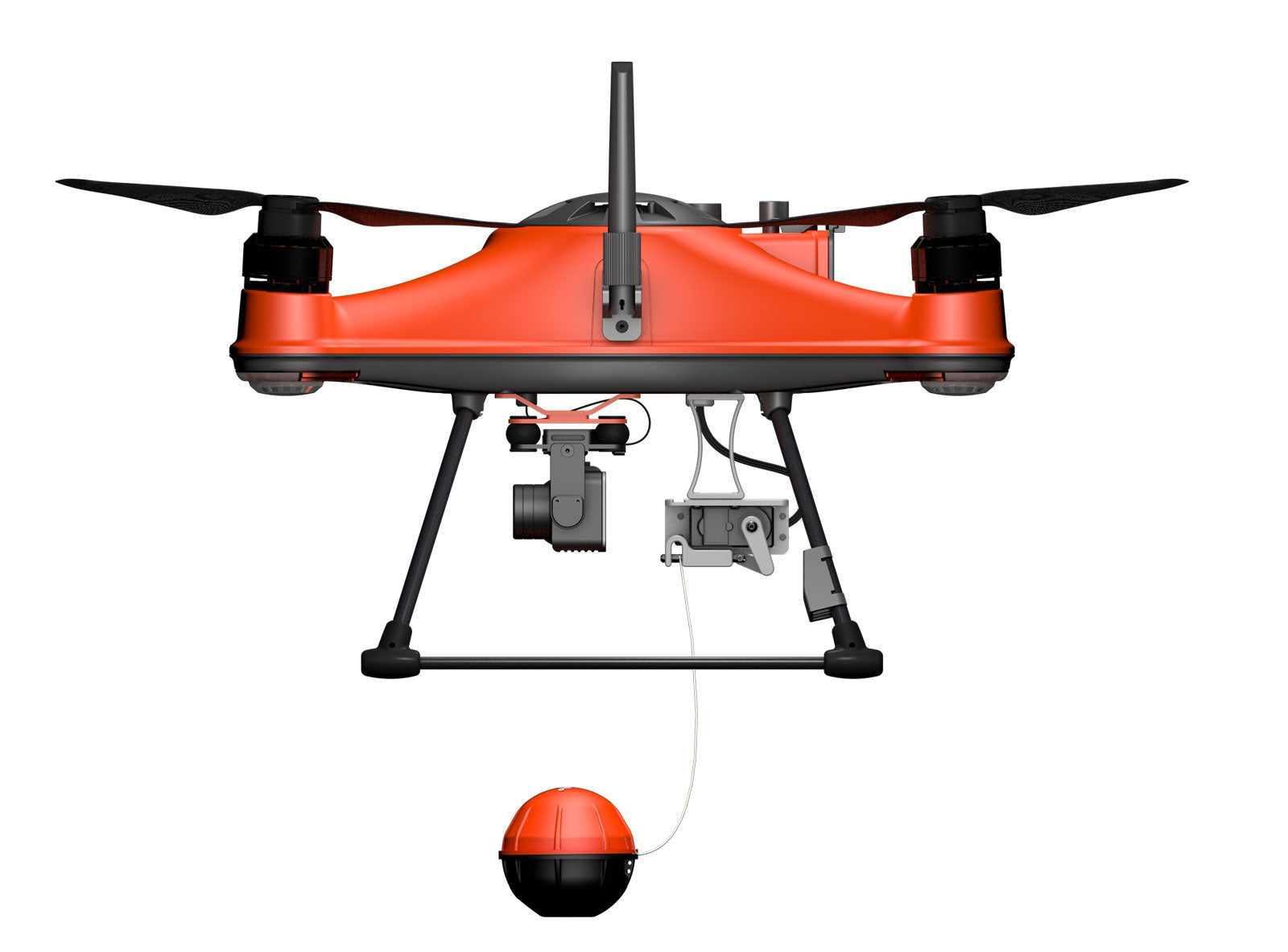

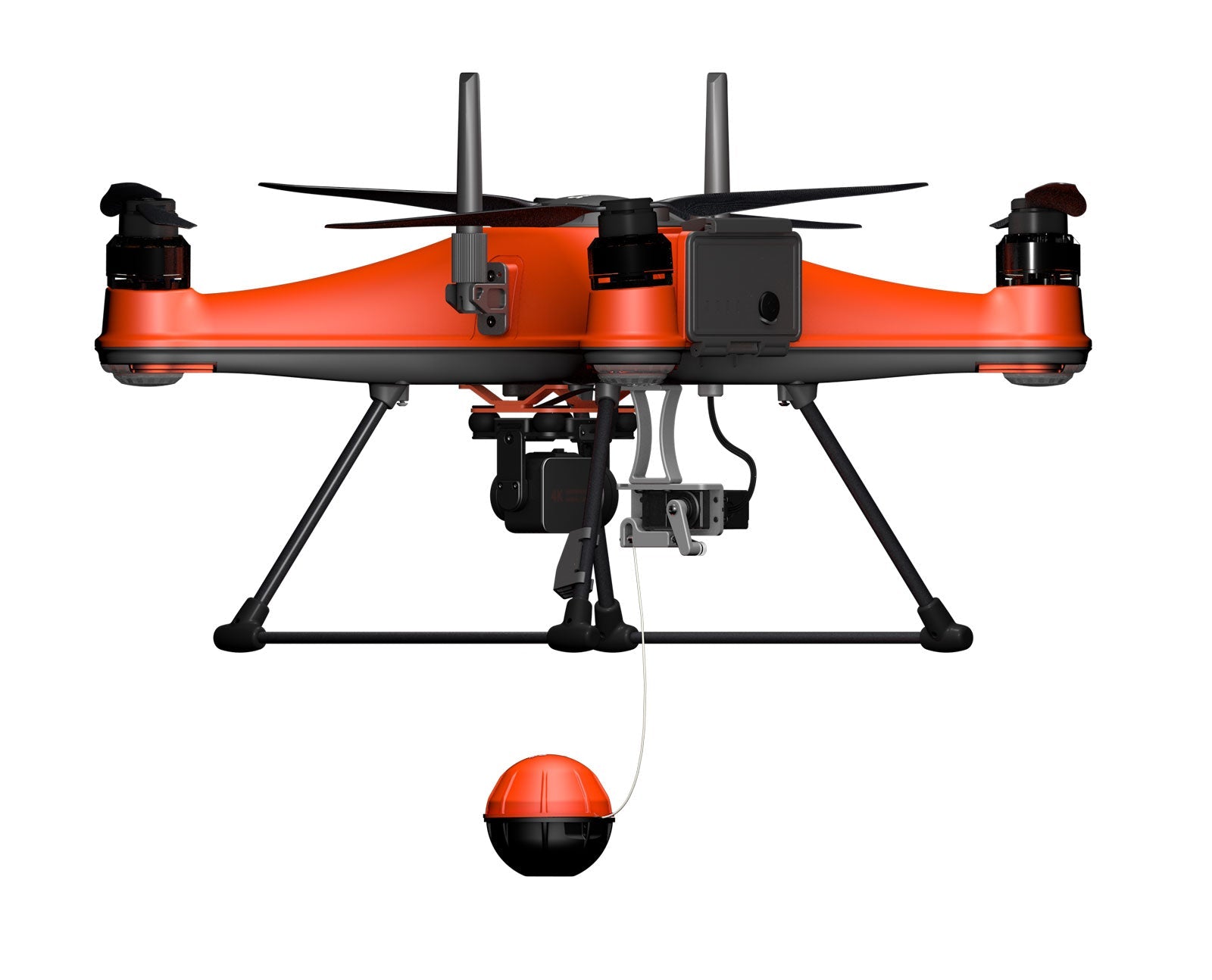

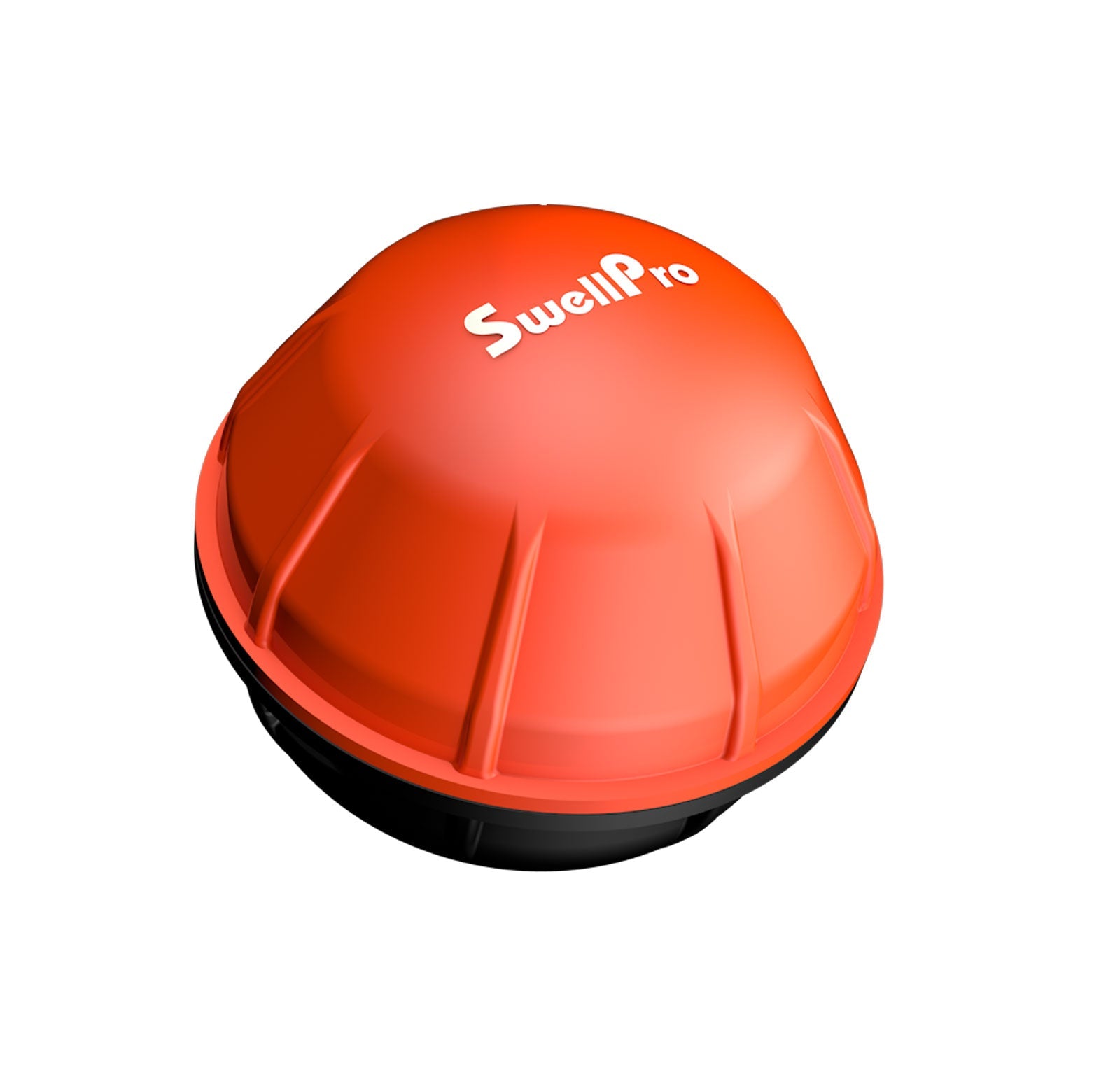

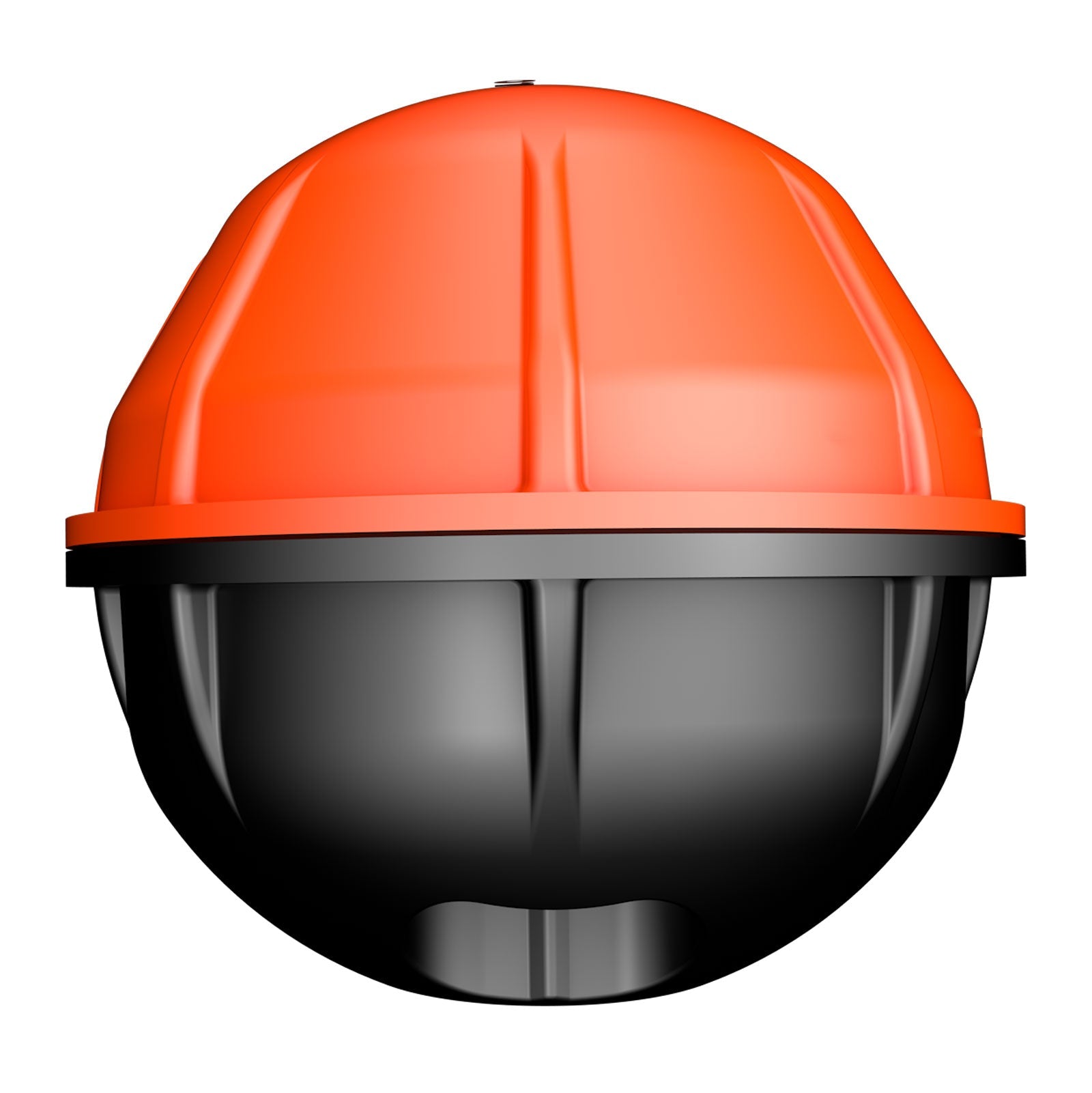

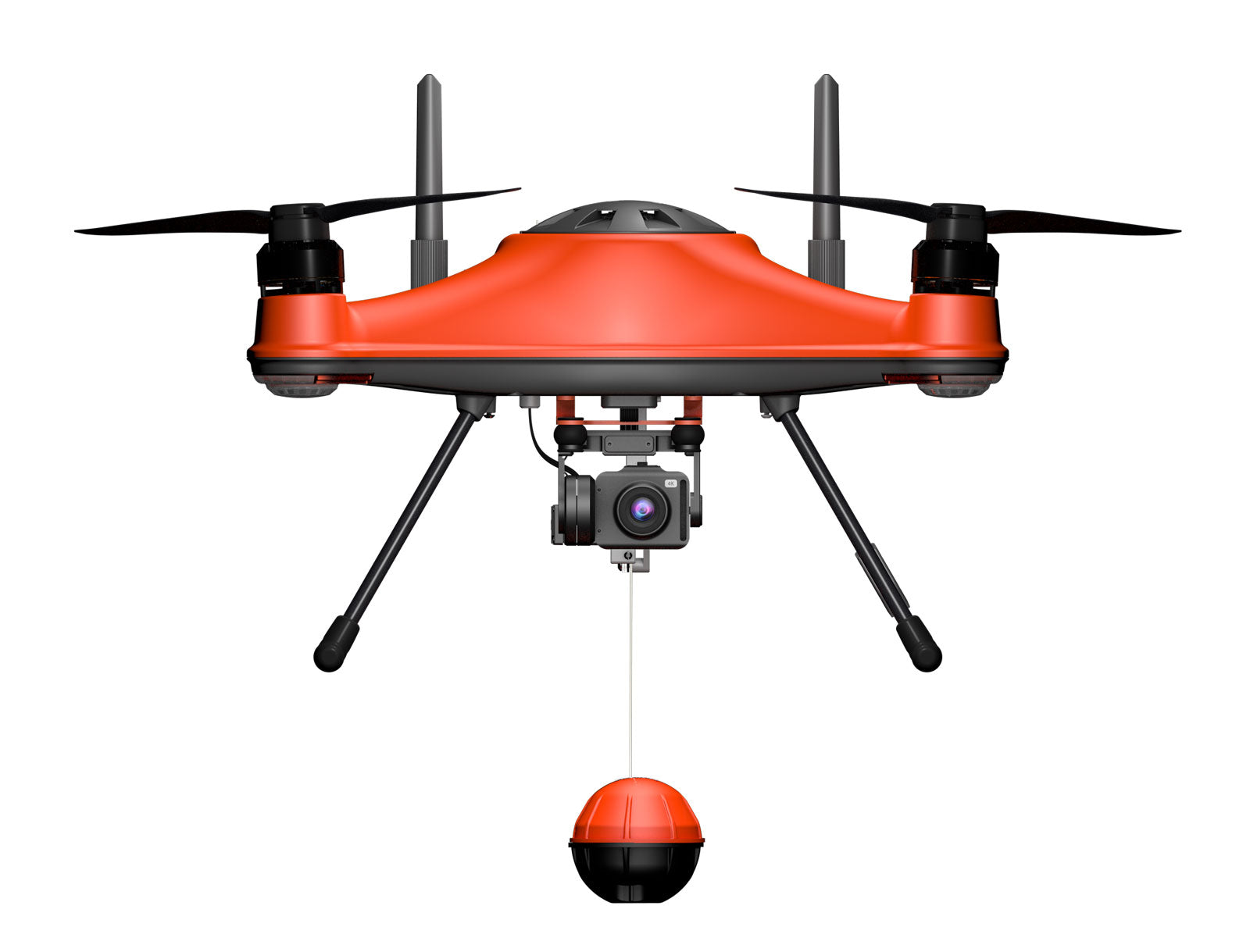

The first and only wireless sonar fish finder that sends sonar images to its companion mobile APP instantly through the signal bridge of the Splashdrone 4.

Sit & relax at the shore and let the FFD give you detailed images of fish and data of underwater terrains. The fish finder can be automatically switched on when it touches water.

View & Download FFD Manual As A PDF Document

View & Download The App



Spec Sheet

Dronar 01 (Fish Finder)
Waterproof Rating	IP68
Depth Range:	1.9ft - 131ft (0.6m - 40m)
Depth Precision:	0.1m
Sensitivity	100 Levels
Sonar Frequency:	125 kHz Single Beam
Detection Cone Angle:	30°
Audible Alarms:	Fish, Depth, Low Battery
Operating Range	1 mile/1.5km with Splashdrone 4. Used on it's own range is 262ft/80m
Operating Temperature	-20c - 70c /-4f - 158f
Interface:	Dronar APP
Battery:	3600 mAh, 11.1 V; 39.96 Wh
Battery Life	3-5 Hours
Charging Time	3 Hours (5v/1A)
Wireless Connection:	2.4G/5.8G Wi-Fi



Video

Overview

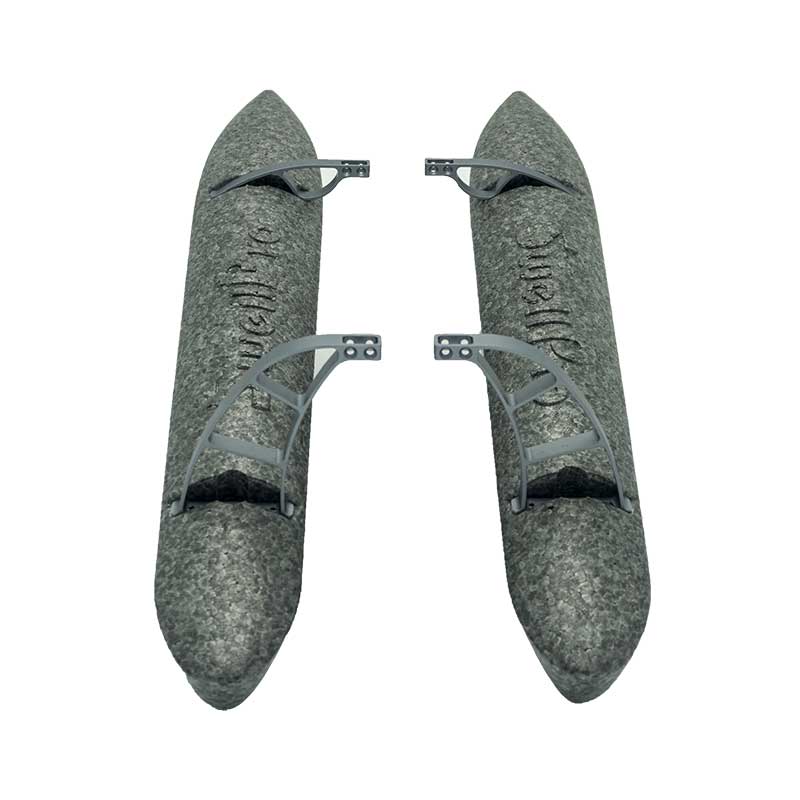

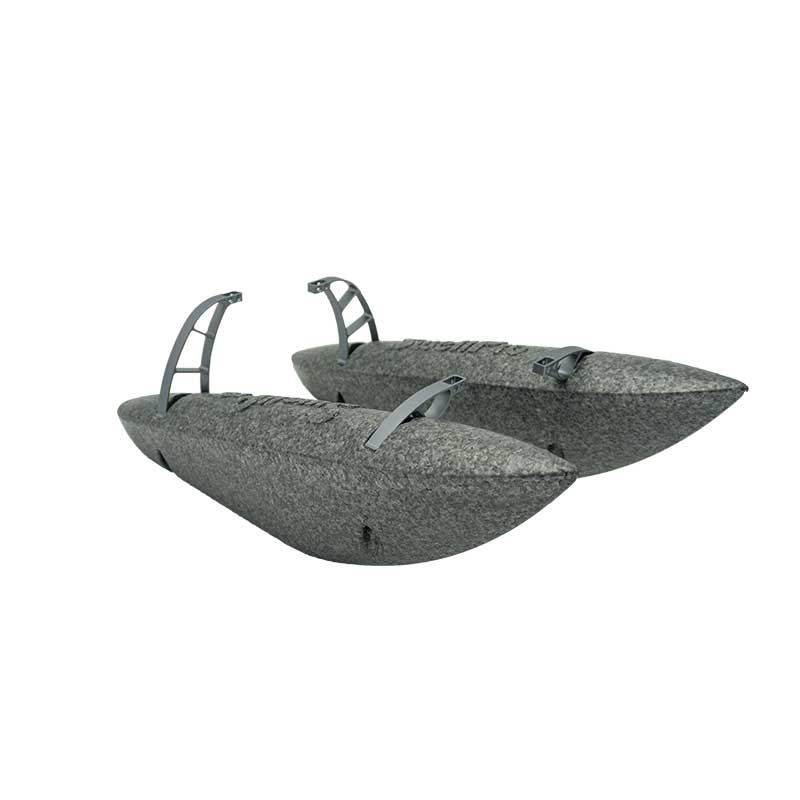

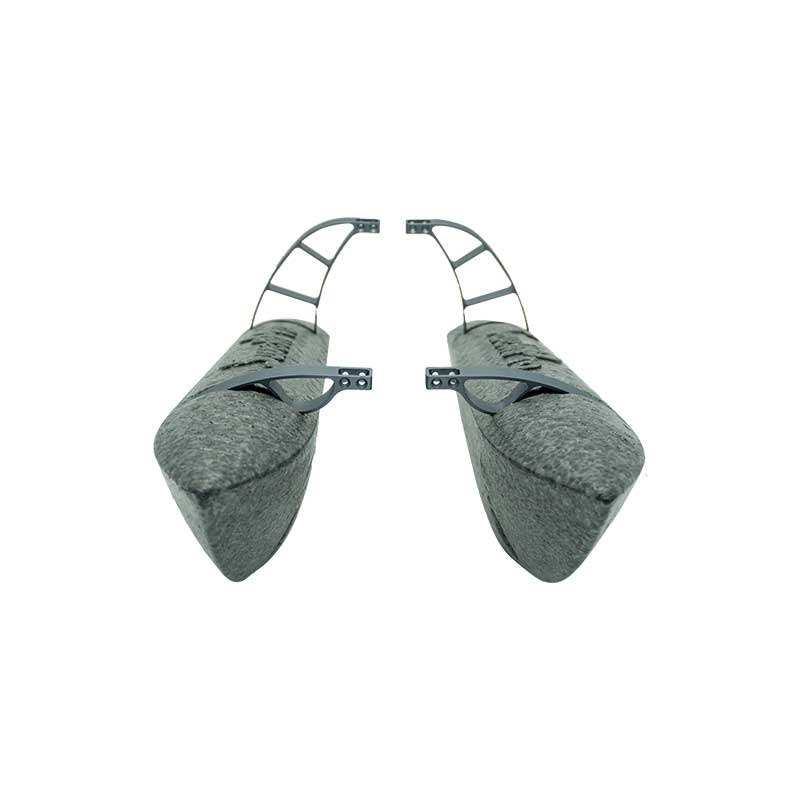

Add on these floats to your Splashdrone 4 to enable you to take above water footage whilst floating or to collect deeper footage by adding on the Gimbal Extension Bar.

Enter Boat Mode by holding the button down on your controller, this will stop the aircraft from taking off and allow you to explore the surface with ease. Great for cave exploration excersises.



Video

Overview

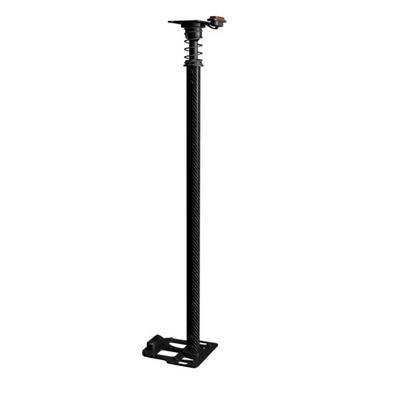

Used to extend your camera further underwater. Also great when used with the Boat Kit.



Spec Sheet

Extension Bar
Weight	366g
Length：	40 cm
Material	Carbon fiber tube & alluminum base

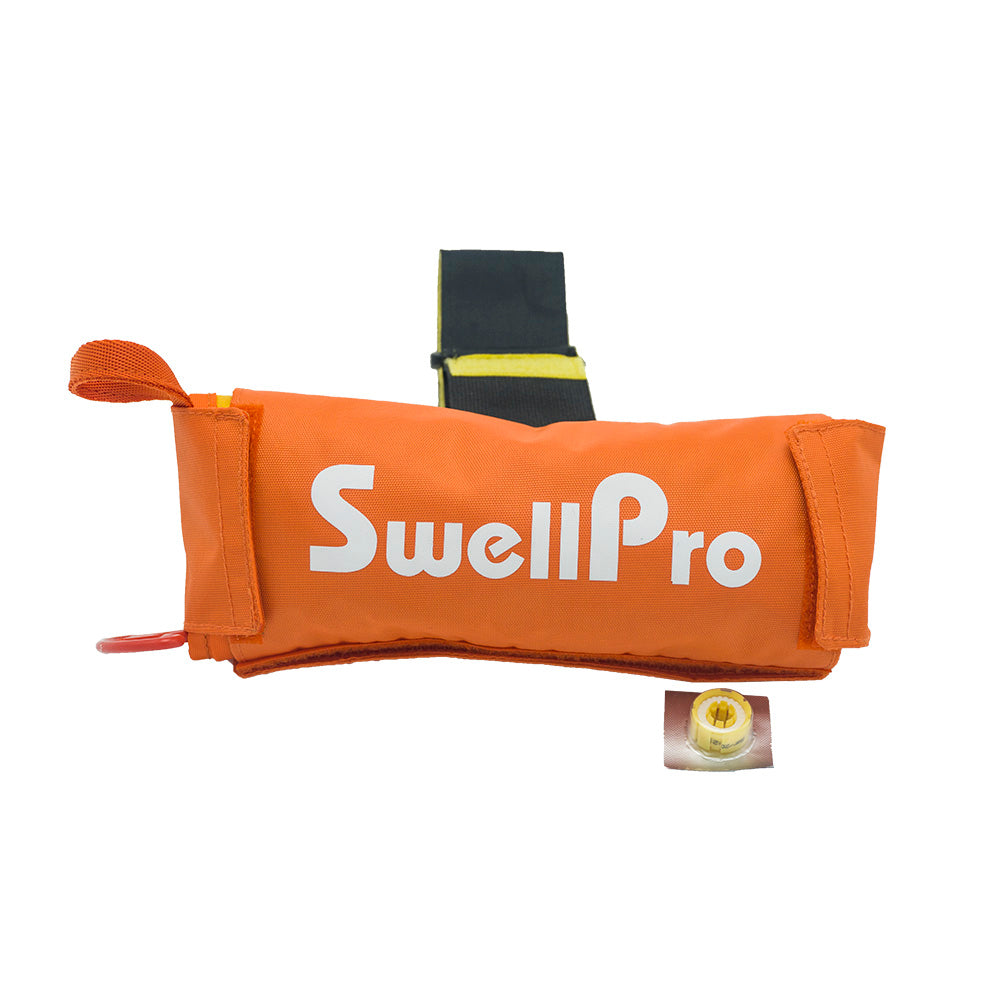

Overview

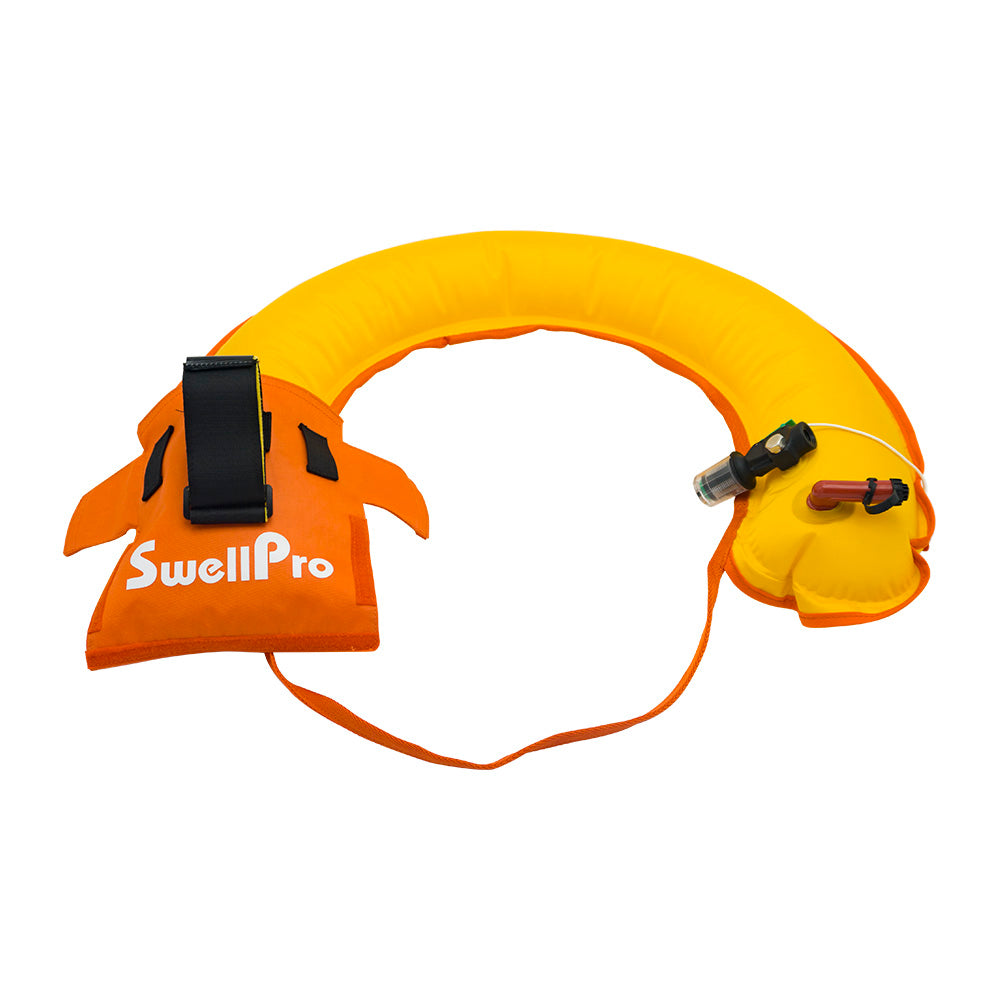

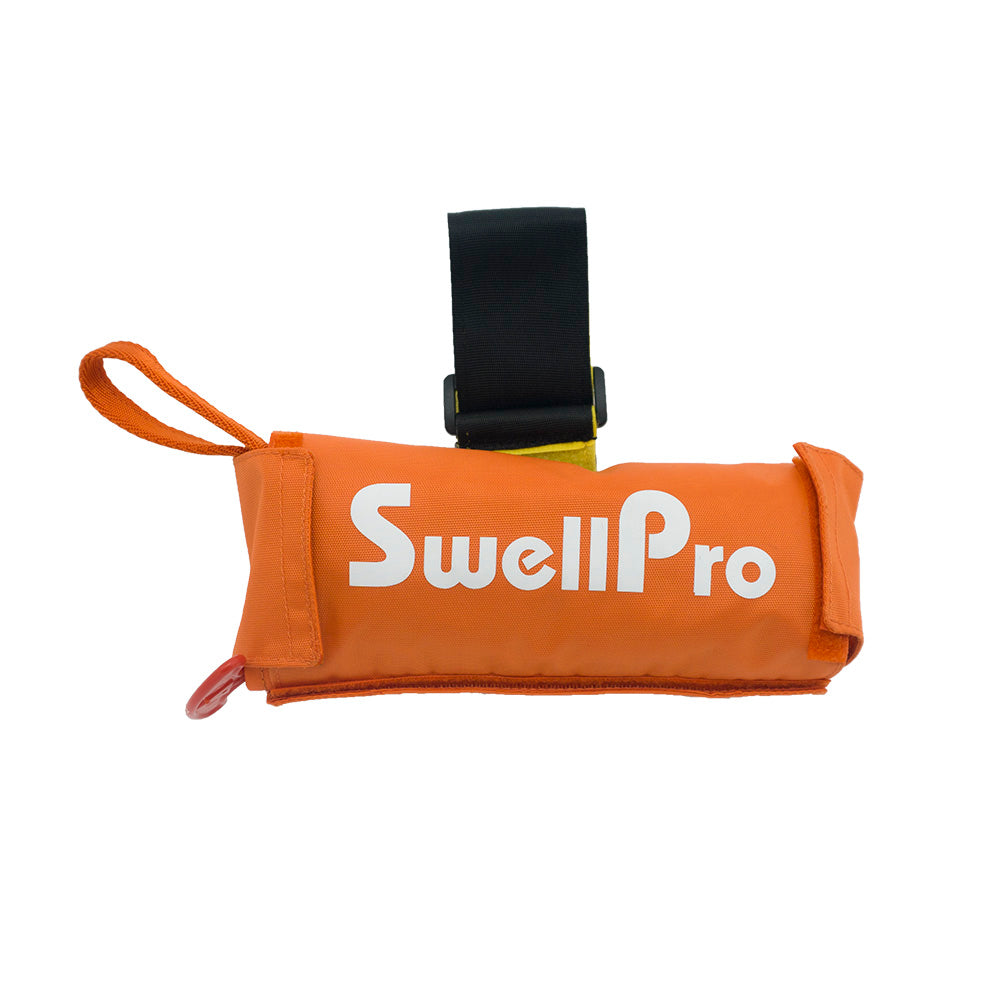

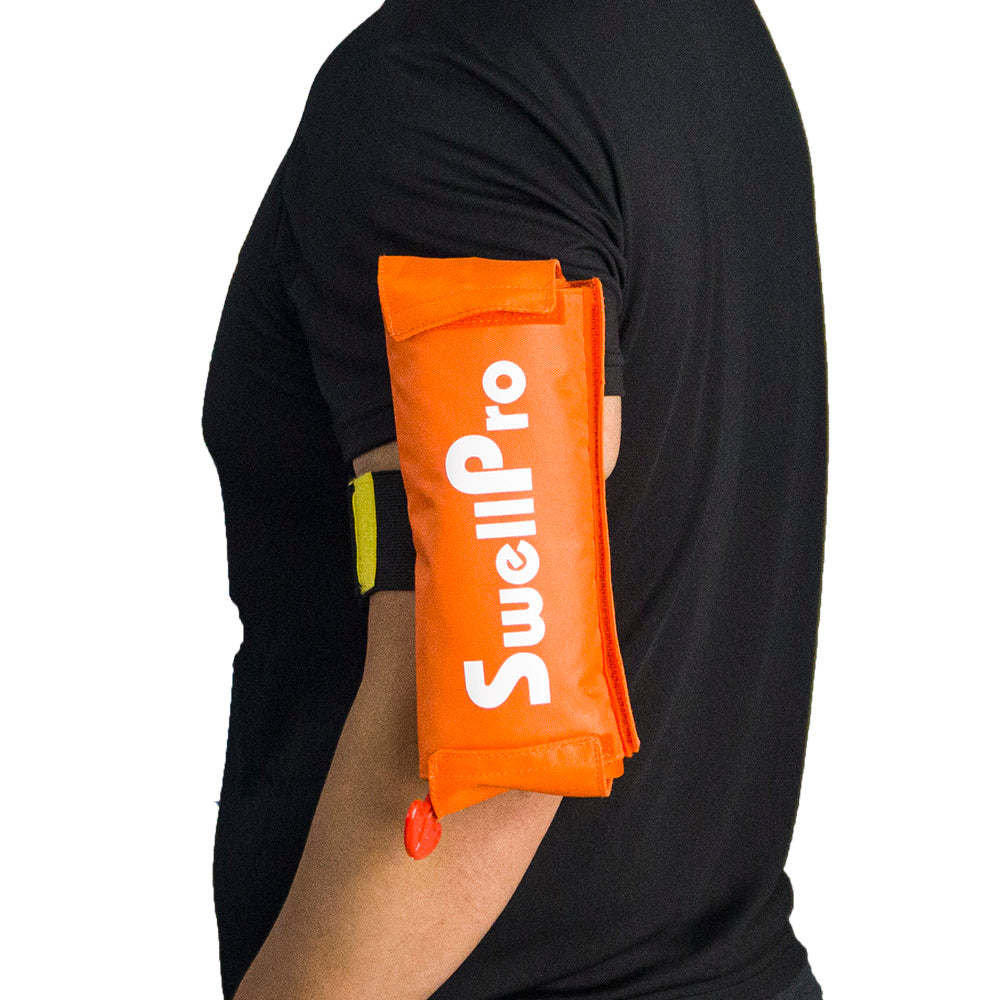

Auto Inflating Buoyancy Aid

Quick release, perfect fit for Swellpro drones.
Used for open water rescue and scuba diver rescues.
Constructed from polyethylene for excellent durability.
Extremely light-weight for longer usage



Spec Sheet

Self-inflating Life Buoy (LB1)
Weight：	366g
Size：	205*100*65mm
Material：	Waterproof polyester Oxford neoprene
Airbag material：	Nylon+ TPU
Inflation Time：	less than 5s
Buoyancy：	150N
Buoyancy time：	more than 24 hrs
Loss of buoyancy after 24 hours：	≤5％
Carbon dioxide weight：	3 / 8-24UNF，24g

Overview



Spec Sheet

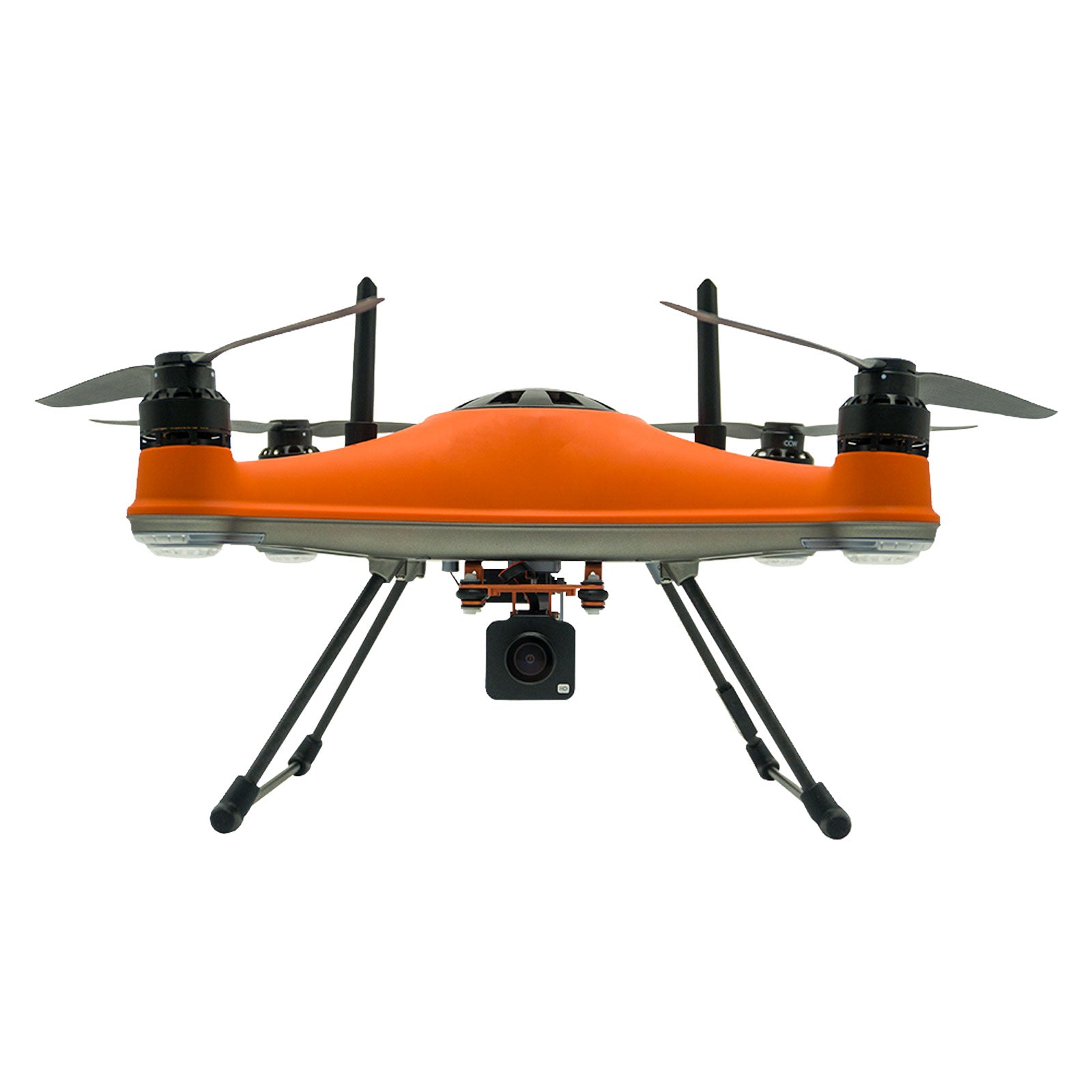

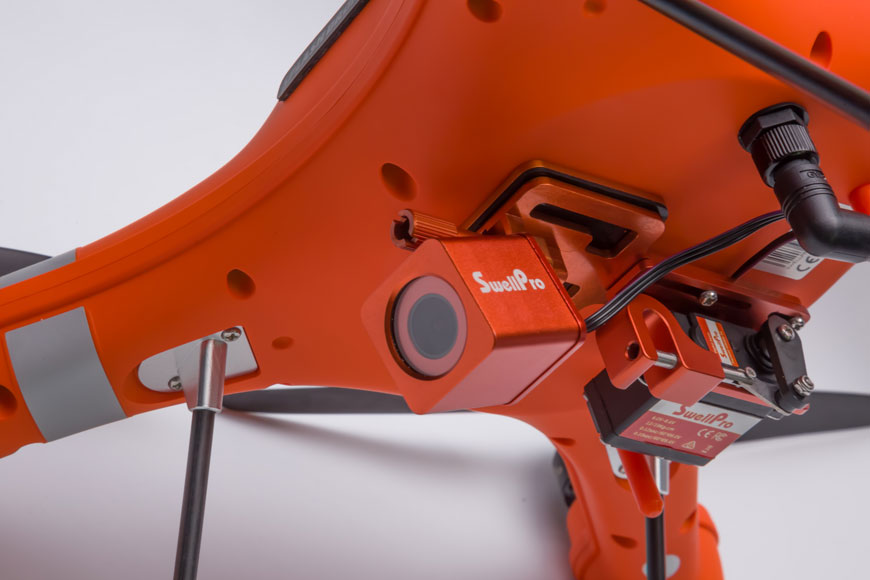

Fixed Angle Camera (FAC)
Waterproof：	IP67
Weight：	Approx.85g
Size：	45*44*40mm
Image Sensor:	1/2.7" 2M SONY CMOS
Lens:	F2.2mm f/5.06, FOV: 130°
Burst：	Shut/3/5/10pcs
Interval	1/3/5/10s
Video Resolution:	FHD：1920*1080 30/60p，HD：1280*720 120/60p
Max Video Stream:	64Mbps
Picture Format:	JPEG
Video Format:	MP4 / MOV
Support Memory Card:	Micro SD CARDS with a maximum capacity of 128GB, write speed ≥15 MB/s, and transmission speed of Class 10 or above or UHS-1 rating are supported
Working temperature：	-10℃ to 40℃

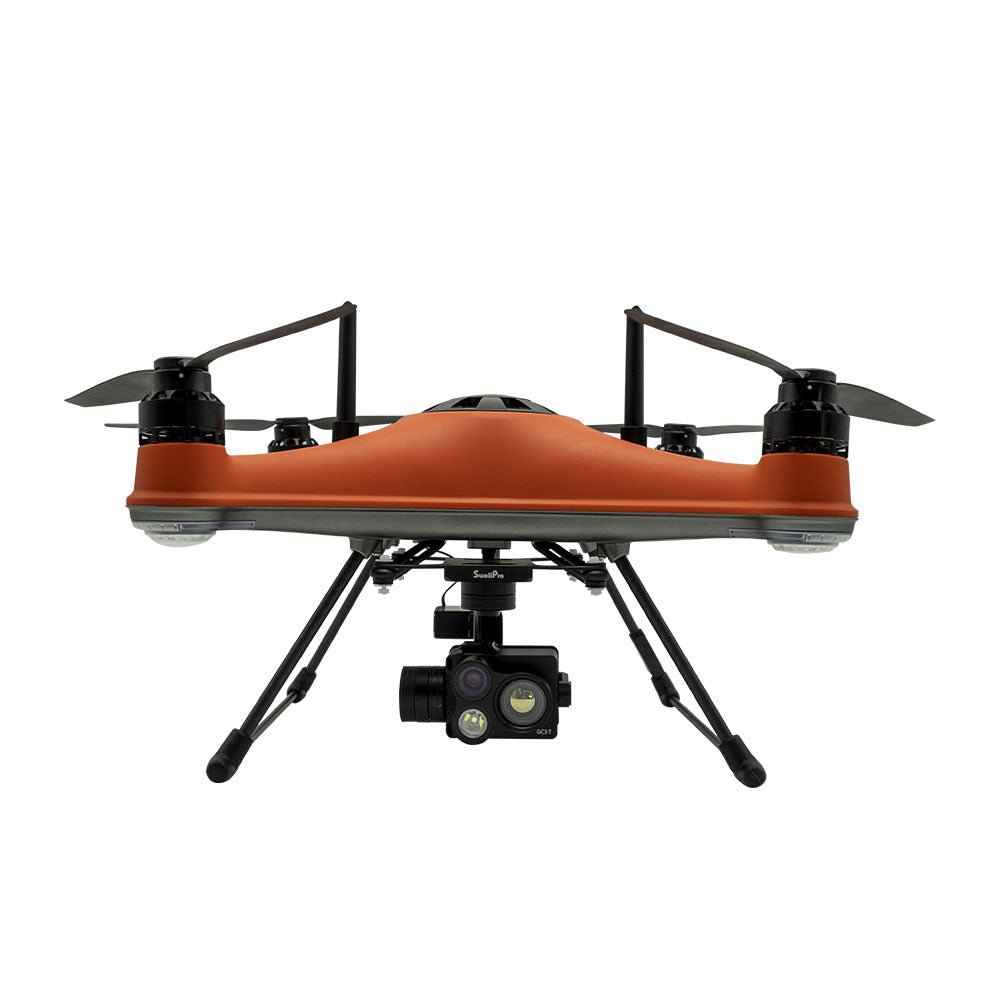

Overview

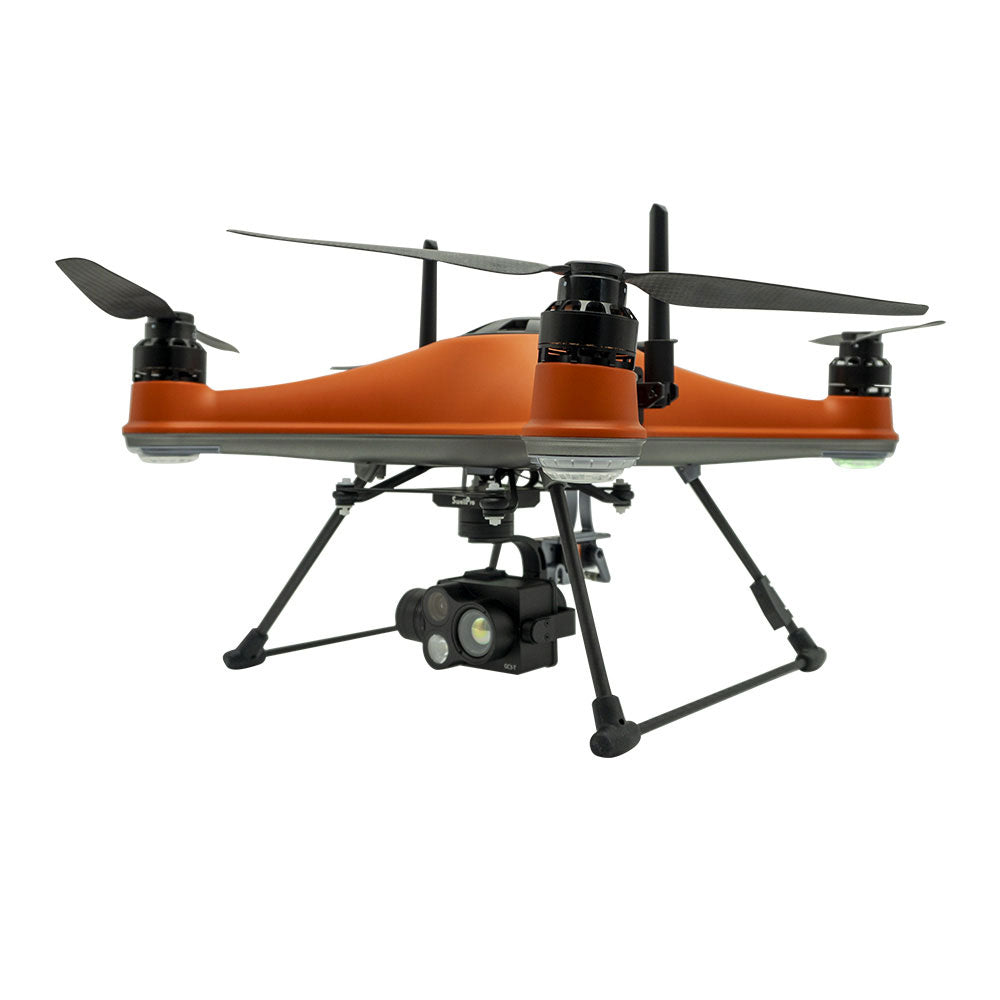

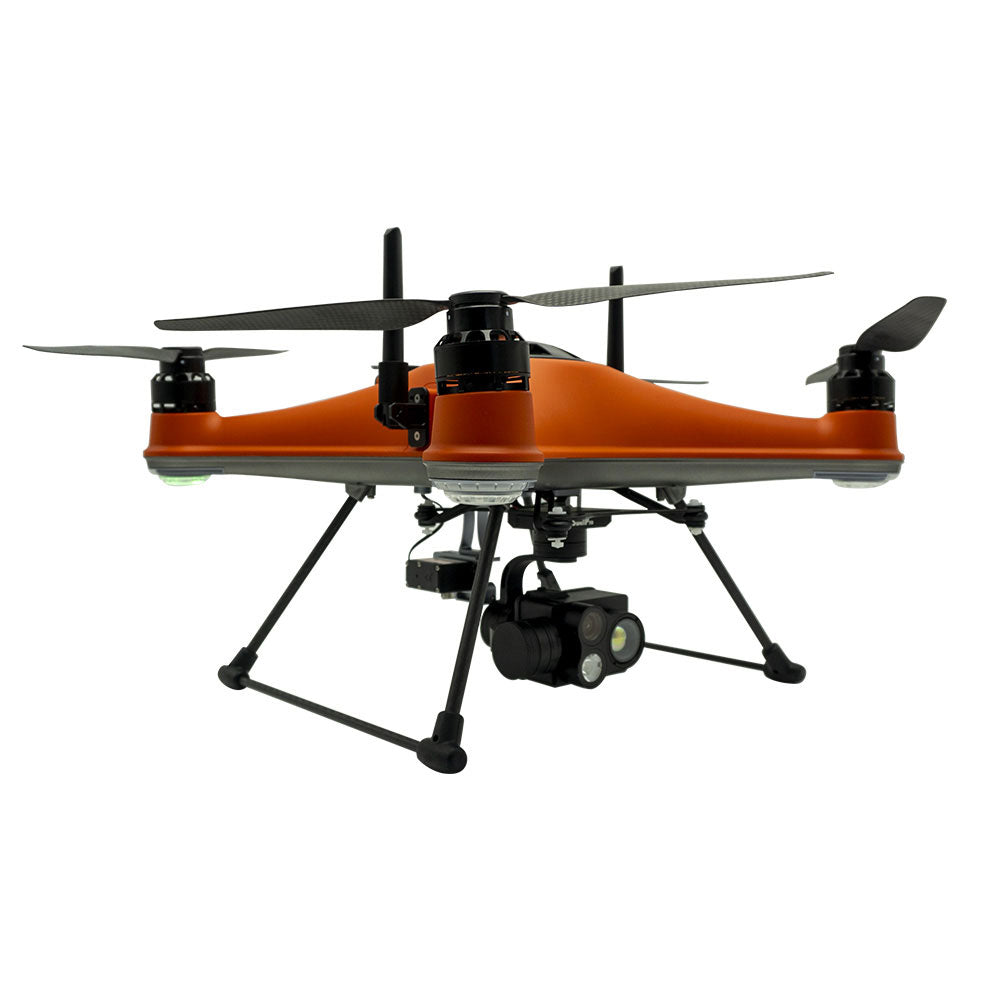

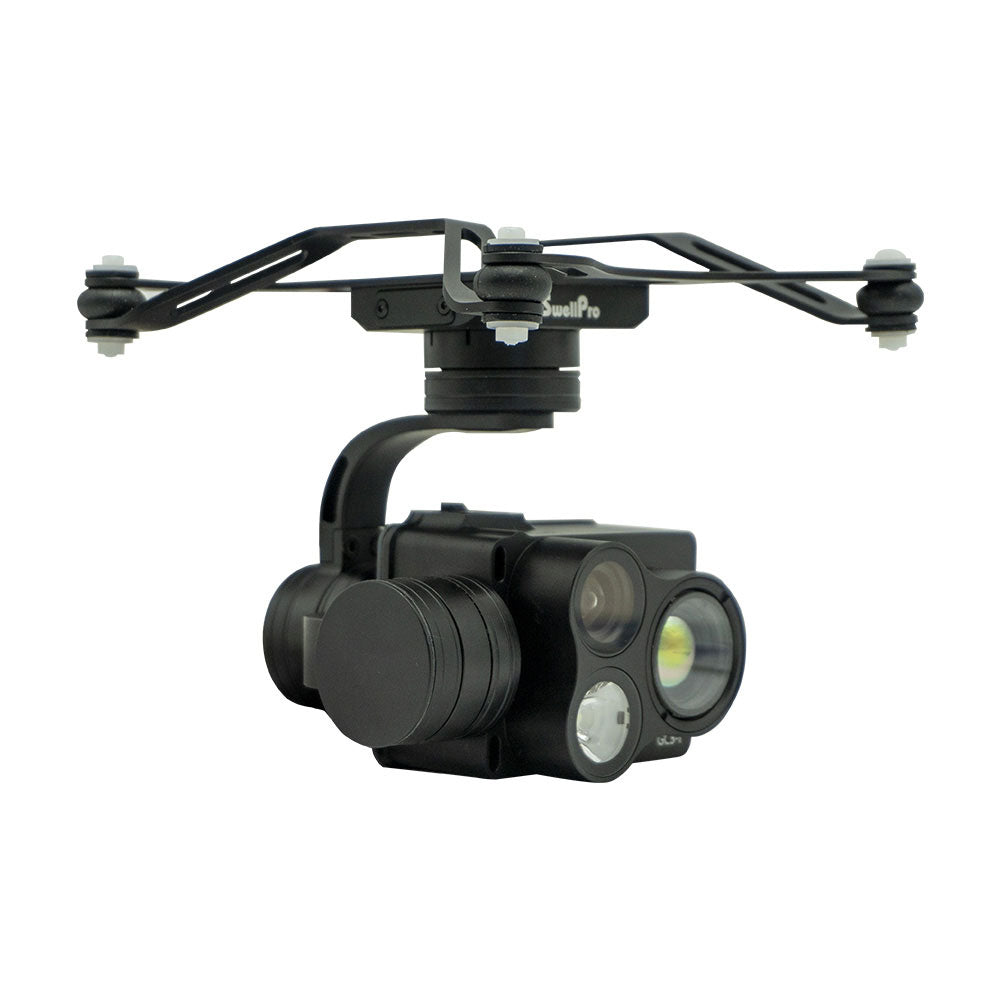

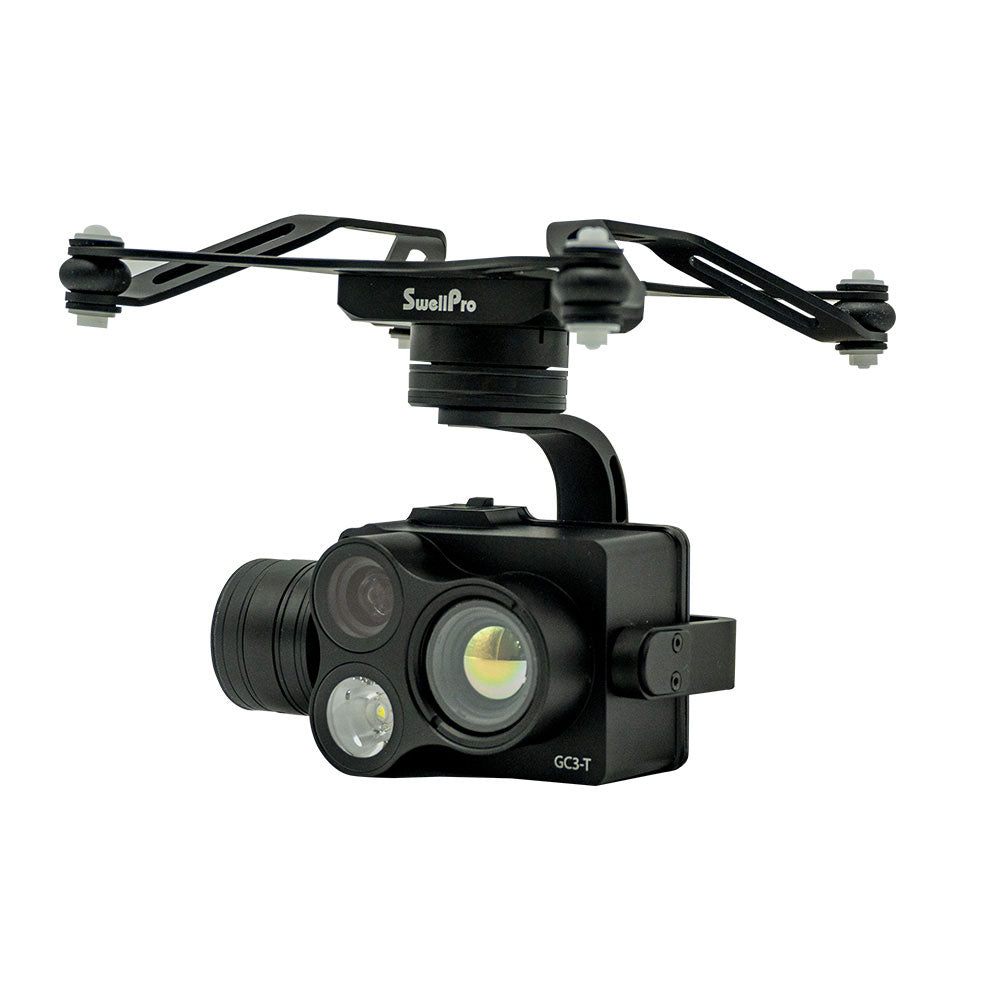

Swellpro's waterproof 3 axis thermal camera combines both a high resolution thermal infrared camera and a full HD low-light camera with a dimmable LED flashlight, which can provide both infrared and visible light imaging simultaneously.

Use the thermal imaging to identify objects of interest, then quickly switch to the low-light mode to better identify the object with more detail. The integration of the GC3-T with the SD4 empowers lots of industries to accomplish their missions smarter and faster with far less risk and cost.

The aerial thermal imaging can help firefighters see through smoke and farmers monitor crop health from above, or to assist in search and rescue operations.

View & Download GC3-T Manual As A PDF Document

Please contact us for details on downloading and using the thermal imaging software for use with this camera.



Spec Sheet

3Axis Thermal Gimbal Camera GC3-T
Waterproof：	IP67
Axis：	3 axis(pitch,roll,yaw)
Pitching angle：	-90°to 0°
Maximum control speed:	Pitching 60°/s
Weight：	Approx. 450g
Size：	110*100*115mm
Low Light Camera
Image Sensor:	1/2" 12M Starlight CMOS
Lens:	FOV: 66°
Burst：	Shut/3/5/10pcs
Interval	Shut/1/3/5/10s
Video Resolution:	FHD: 1920*1080 30/60p | HD: 1280*720 120/60p
Max Video Stream:	64Mbps
Picture Format:	JPEG
Video Format:	MP4 / MOV
Support Memory Card:	Micro SD CARDS with a maximum capacity of 128GB, write speed ≥15 MB/s, and transmission speed of Class 10 or above or UHS-1 rating are supported
Working temperature：	-10℃ to 40℃
IR Camera
Image Sensor:	Vanadium oxide uncooled infrared focal plane detector
Lens:	19mm/25mm
Resolution@frame rate:	640*512 @30p/48p/50p
Palette:	White hot / black hot / Rainbow / Rainbow high contrast / iron red / lava / Sky / medium gray / grey red / purple orange / Special 1 / warning red / ice fire / cyan red / special 2 / gradient red / gradient green / gradient blue / warning green / warning blue
Crosshairs：	Show (default), hide, move
contrast ratio：	Slider adjustment (0-255), default middle value
Brightness:	Slider adjustment (0-511), default middle value
DDE gear (image enhancement):	Off / On (default on)
Temperature measurement OSD on / off:	Off / On (the default displays the highest, lowest, and center point temperatures)
Temperature measurement unit：	Centigrade, Kelvin, Fahrenheit
Temperature measurement alarm：	Off, low temperature alarm, high temperature alarm, high and low temperature alarm
Low temperature alarm setting:	-20℃～+150℃
High temperature alarm setting:	-20℃～+150℃

Video

Camera Comparison

Overview

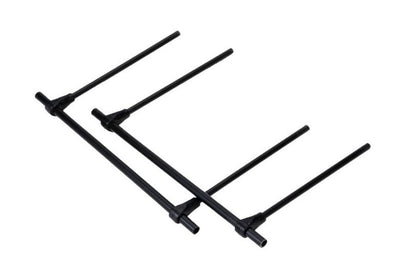

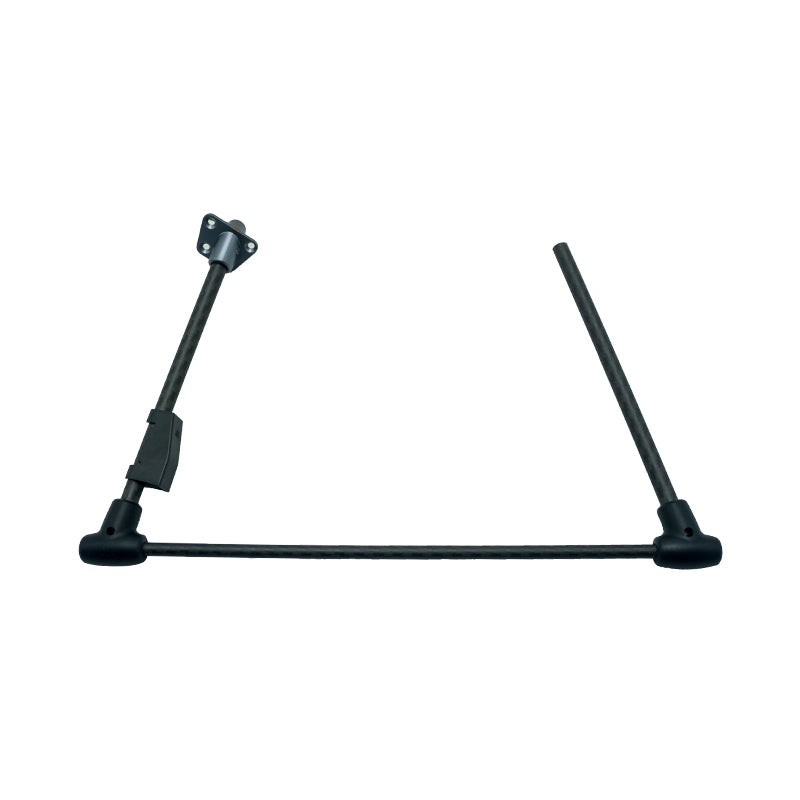

The Splash Drone 4 quick-release landing gear is made with carbon fibre tubes, rubber joints and CNC machined alloy screw parts. Also includes a compass at the base.

Overview

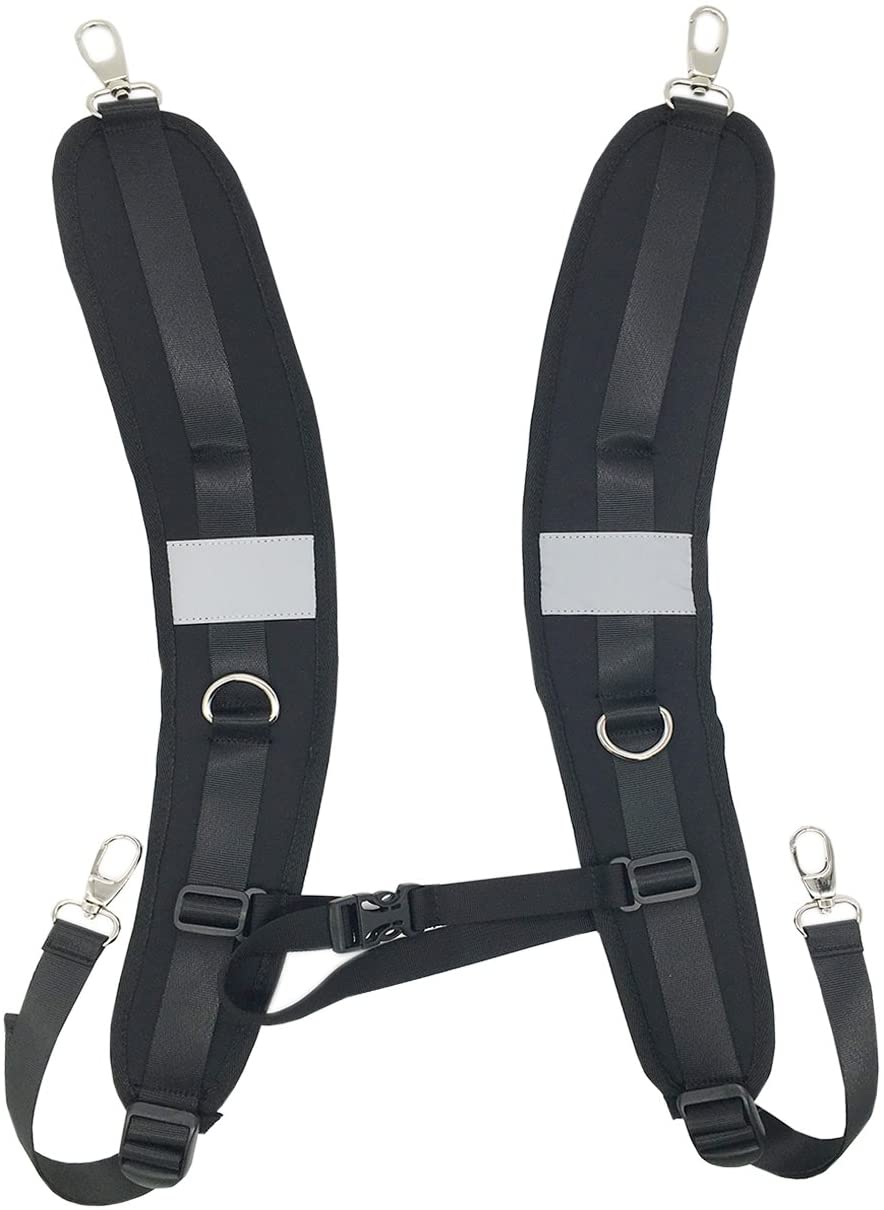

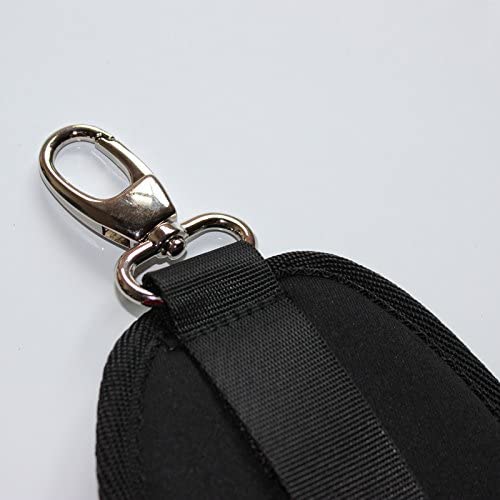

Back straps that can be used with the Spry+ Case. Making transportation even easier.

Product Description

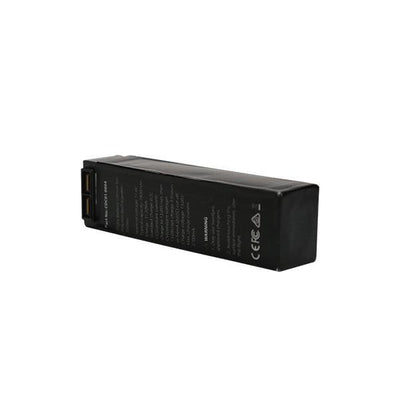

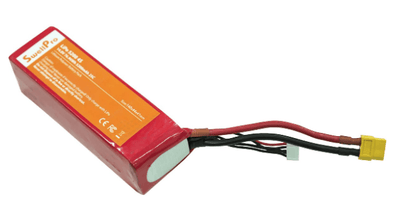

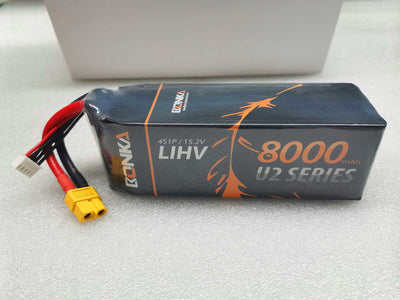

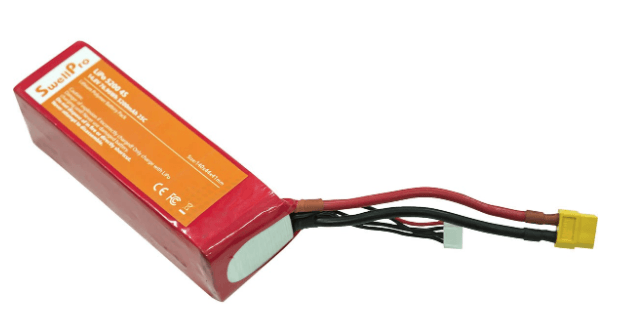

Alternative battery to fit the SD3+,

Nominal Voltage	15.2V
Rated Capacity/Energy	8000mAh 121.60Wh
Weight	609g
Dimensions	48mmx44mmx136mm

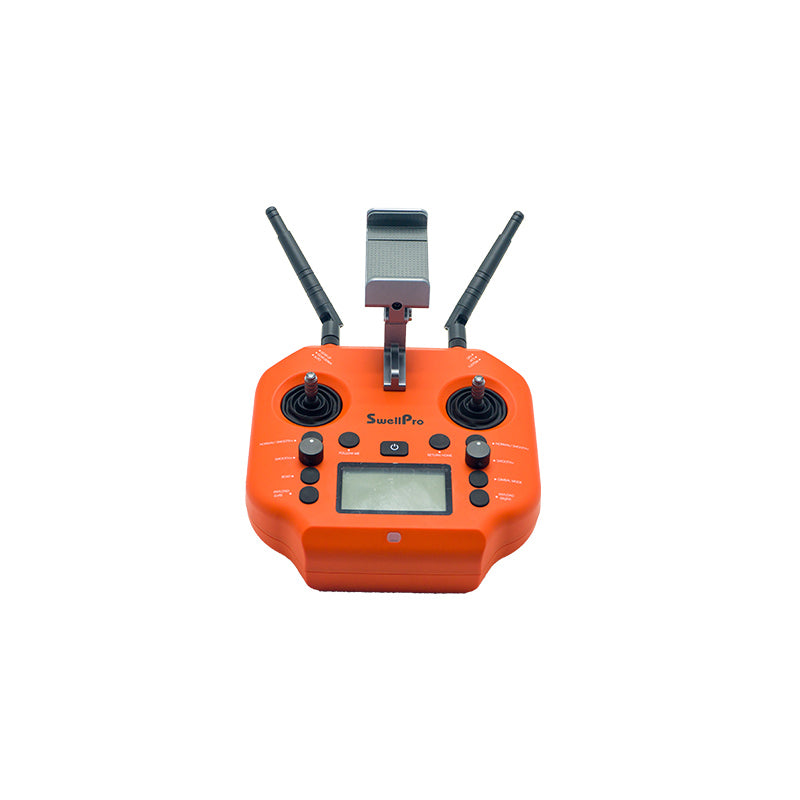

Overview

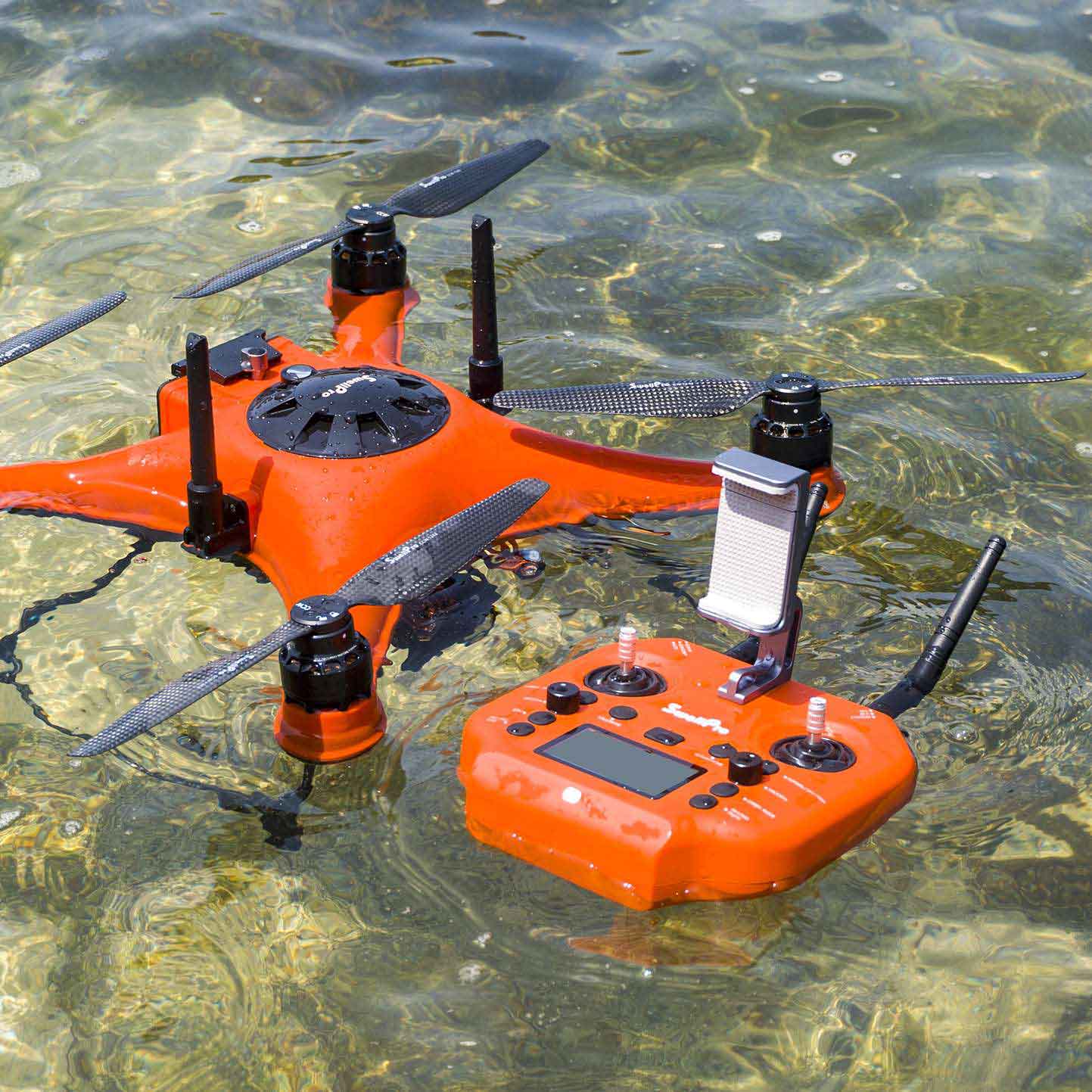

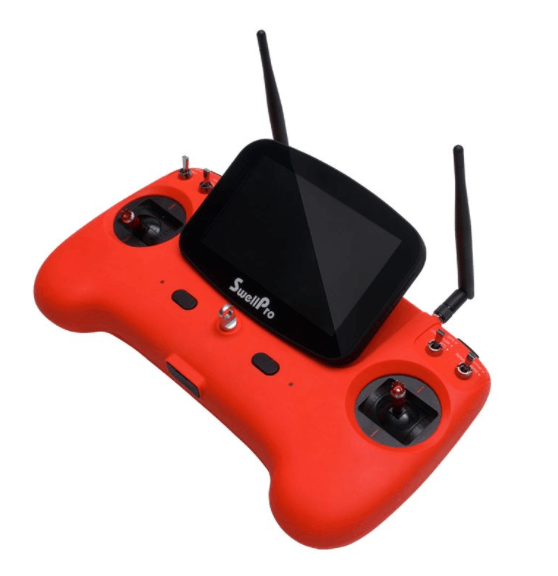

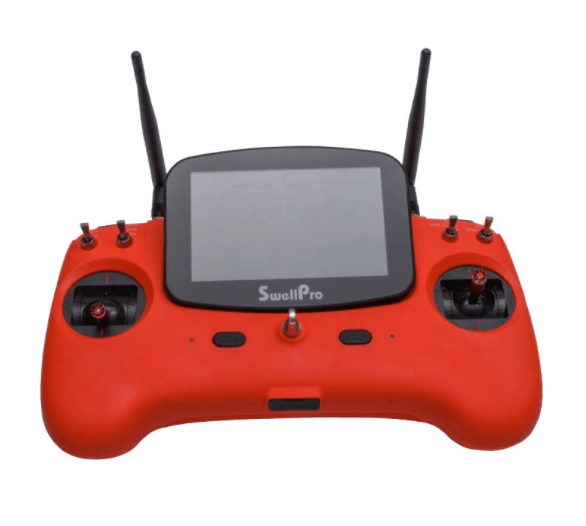

Fully waterproof IP66-rated multifunction remote controller

The SwellPro SD4 remote controller has been carefully designed to provide worry free operation in harsh environments whilst remaining easy to use. Its IP66 rating ensures that it is protected from strong jets of water as well as sand and debris.

Built-In High-Quality Battery

An integrated SONY battery provides a maintenance-free power solution for the remote controller and up to 8 hours of battery life or 12 flights per charge.

Considered Design

All aspects of the new SD4 remote control have been refined and considered. The layout provides intuitive control of all aircraft features while the milled aluminum smart phone bracket ensures that your attached device is secure and can be easily adjusted to the optimum angle for viewing. In addition to audible alarms, the remote controller also vibrates to warn the pilot of issues.

Digital Telemetry Display

The integrated high-brightness 2-inch digital display provides critical aircraft telemetry and flight data giving the pilot real-time aircraft status even when flying without a tablet or phone attached.

Wi-Fi Multi-Point Hotspot

To ensure waterproofing of the remote controller and connected devices, the SD4 remote controller can provide a high-speed WiFi connection rather than cabled. A pioneering design allows multiple devices to be connected simultaneously, allowing different apps and devices to be used at the same time during flight.

Built-in GPS

The remote controller’s built-in GPS module allows the SD4 to include the pilot’s precise location in its flight calculations, enabling real-time tracking and dynamic return-home functions, such as returning to a moving boat.

Innovative flight controls

The patented "Smooth+" flight dials allow the pilot to switch from joystick control of the roll and yaw to a dial to finely adjust and maintain a desired altitude. Whether filming or surveying, with Smooth+ the pilot can “dial-in” just the right amount of aircraft movement to achieve and maintain smooth pans, orbits and sweeps - hands-free!

Spec Sheet

Remote Controller (MRC)
Waterproof Rating:	IP66
Operating Frequency:	5180 - 5875 MHz
Transmitter Power (EIRP)	FCC/IC: ≤ 24 dBm CE/SRRC/MIC: ≤ 20 dBm
Real-time Video Transmission	720P@30fps
Latency	200 ms (Dependant on actual shooting environment and mobile devices)
Battery	2S 3600mAh
Working Time:	7 hours
Working Current/Voltage:	0.3A/7.4V
Ethernet Port	IP: 192.168.2.220:2222
Wi-Fi Hotspot	IP: 192.168.2.220: 2020; Default password: 12345678
Mobile Device Mount:	Suitable for any size phones; Tablets require larger mount(sold separately)
Screen	2.68 inch, 128x64
Working Temperature	-10℃ - 40℃
Remote Charging time:	3 hours
Power Input:	5V/2A

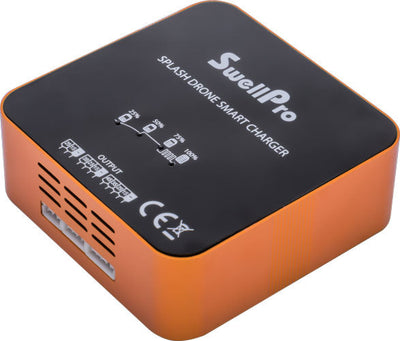

Overview

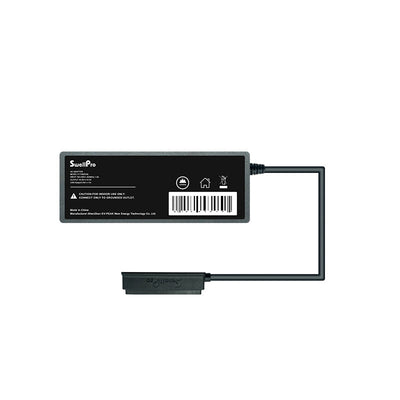

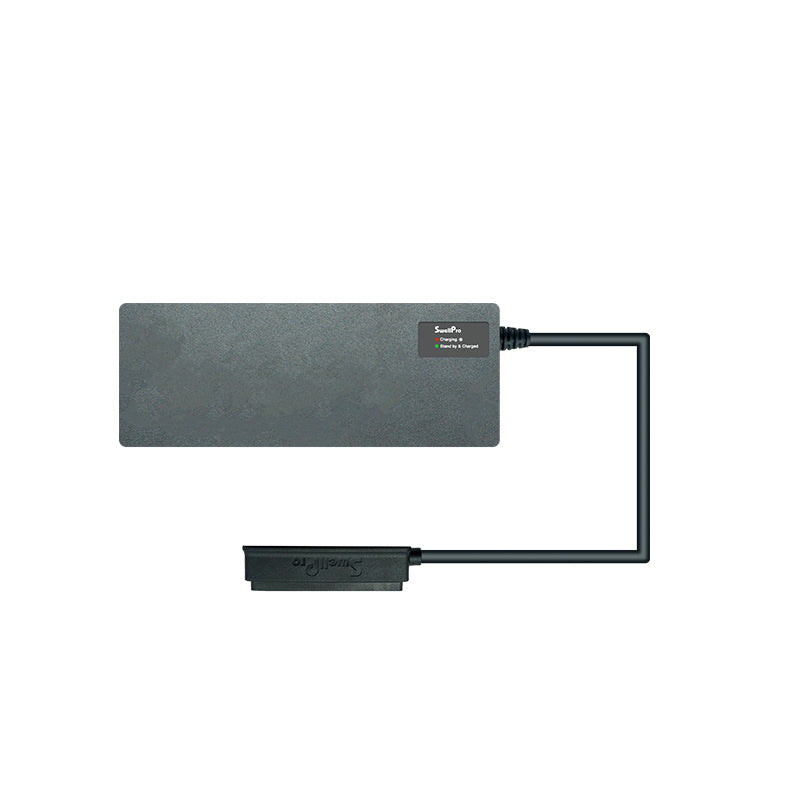

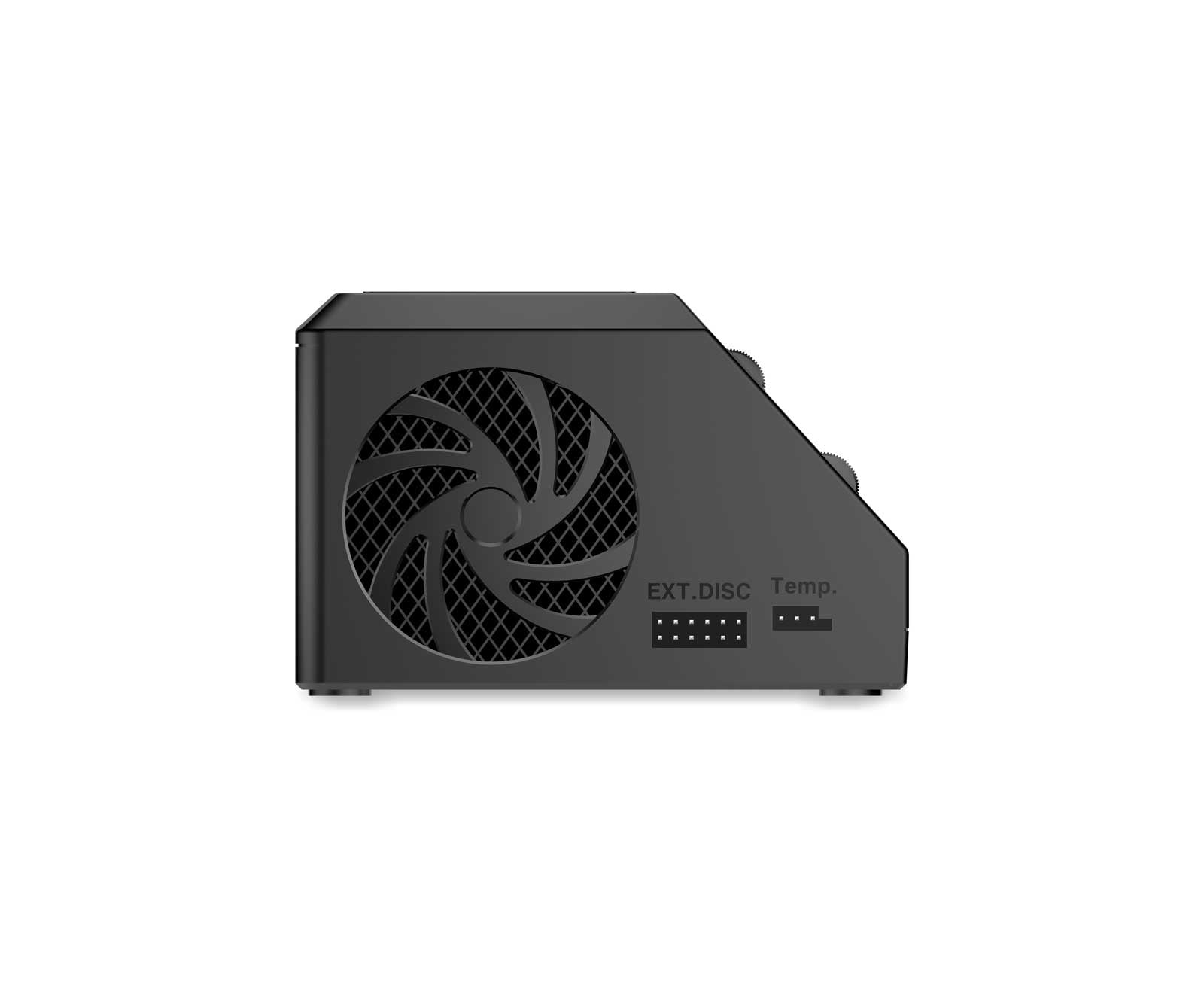

Charger for the Splashdrone 4



Spec Sheet

Charger
Input	100 – 240V, 50/60Hz
Output	16.8V@Dynamic Current / 5V@1.5A
Rated Power：	84.5 W

These can also be used for the FD1 Fisherman Drone

Overview

12 Inch  Quick release carbon fiber propellers x1 pair

1. Quick to release, quick to attach;

2. New design propellers, with greater aerodynamic efficiency, higher lifting capacity;

3. Full carbon fiber, very strong, durable, reliable and lightweight;

4. Only compatible with Splash Drone 3, 3+ & SD4

5. Package in one pair including 1x Clockwise & 1x Counter Clockwise.

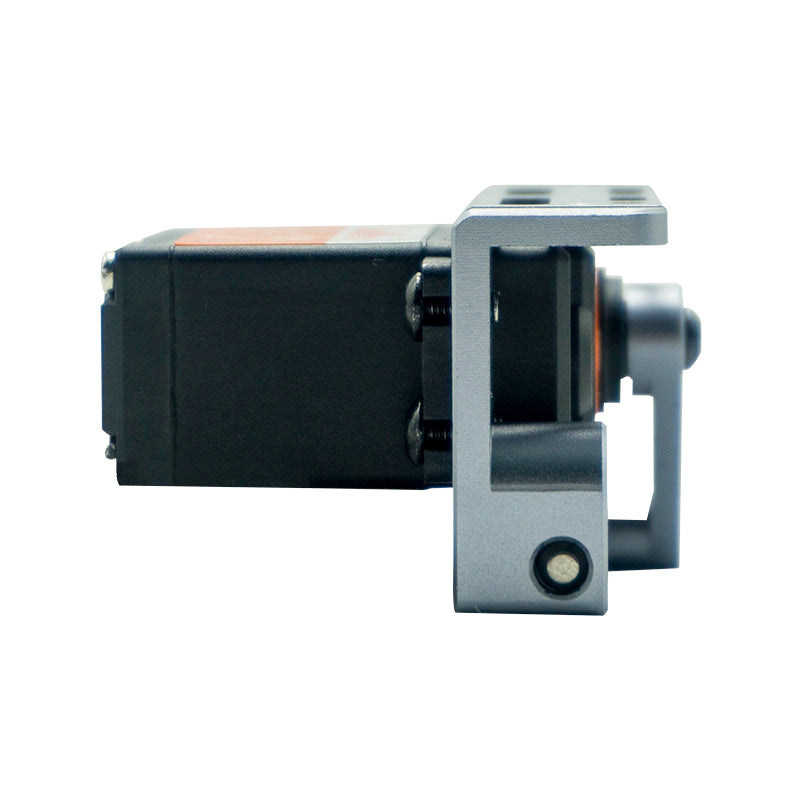

Overview

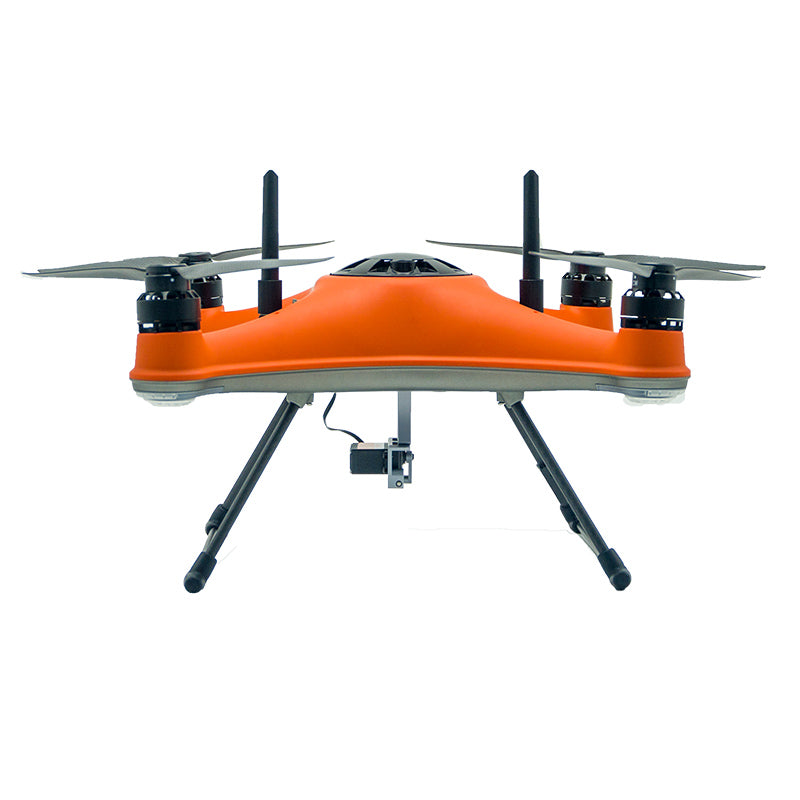

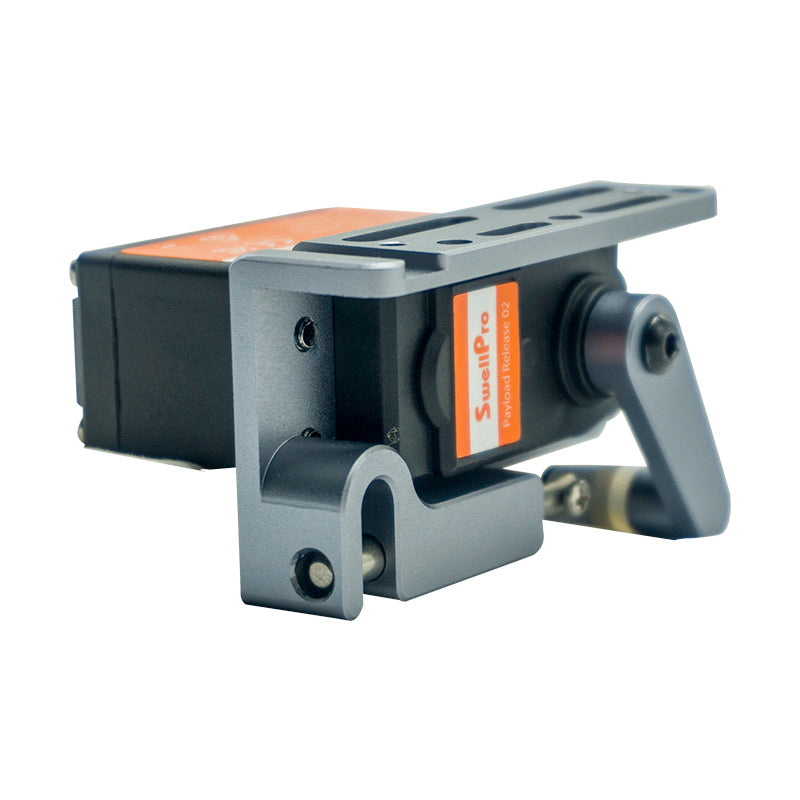

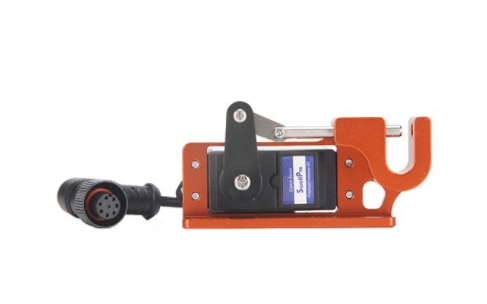

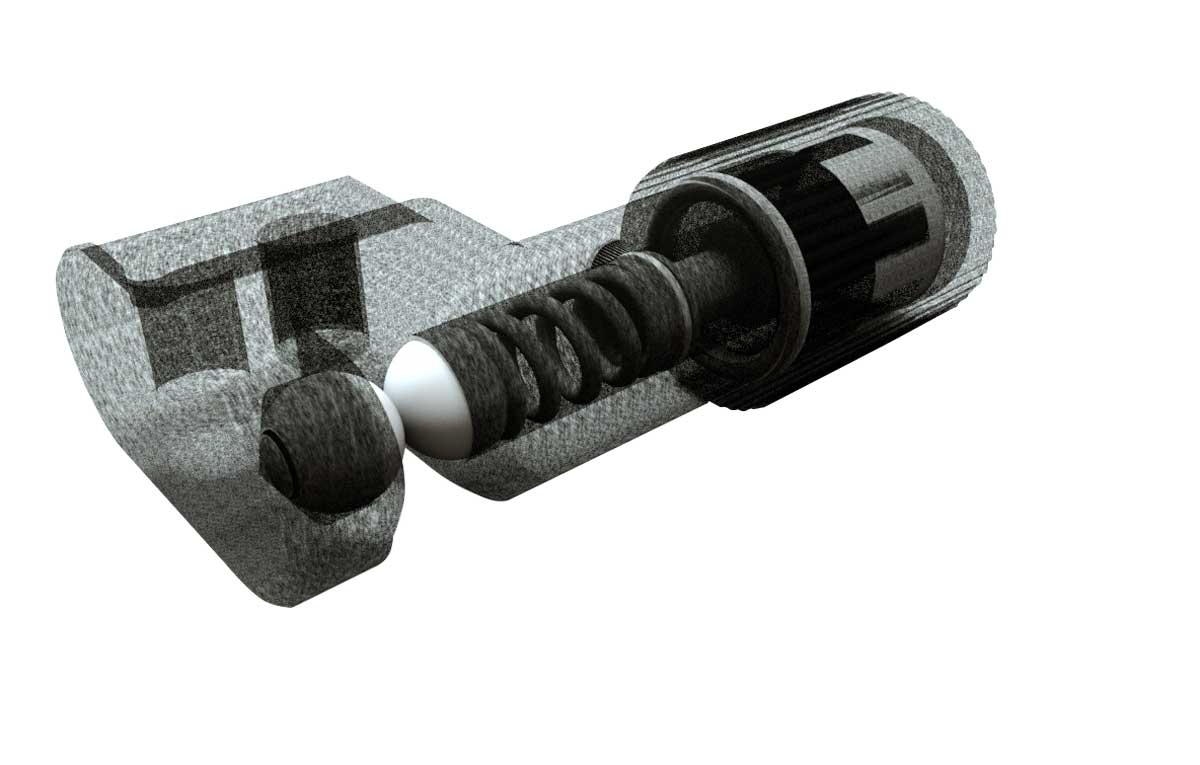

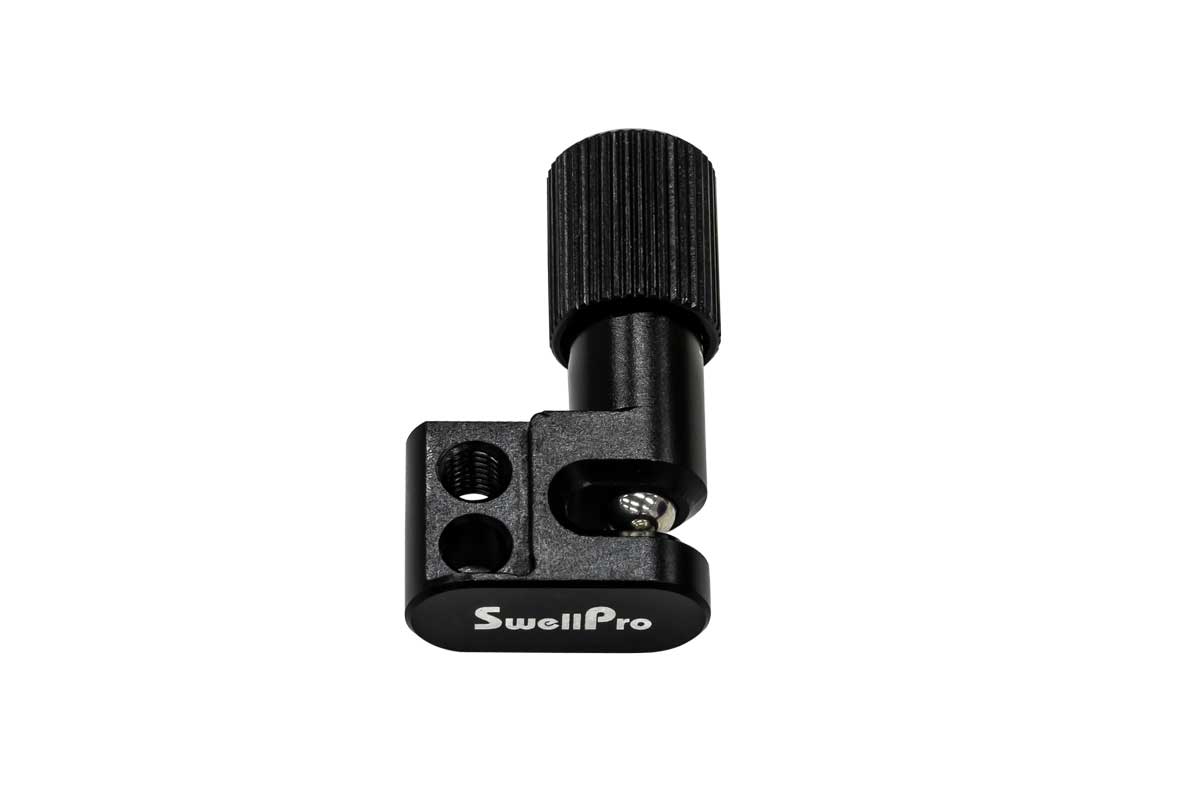

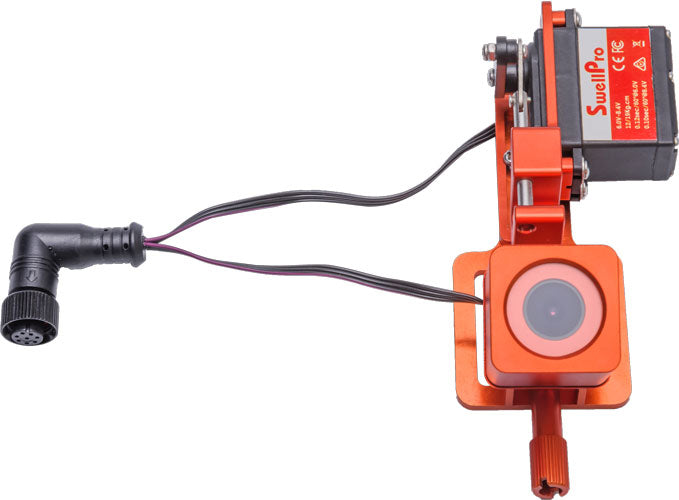

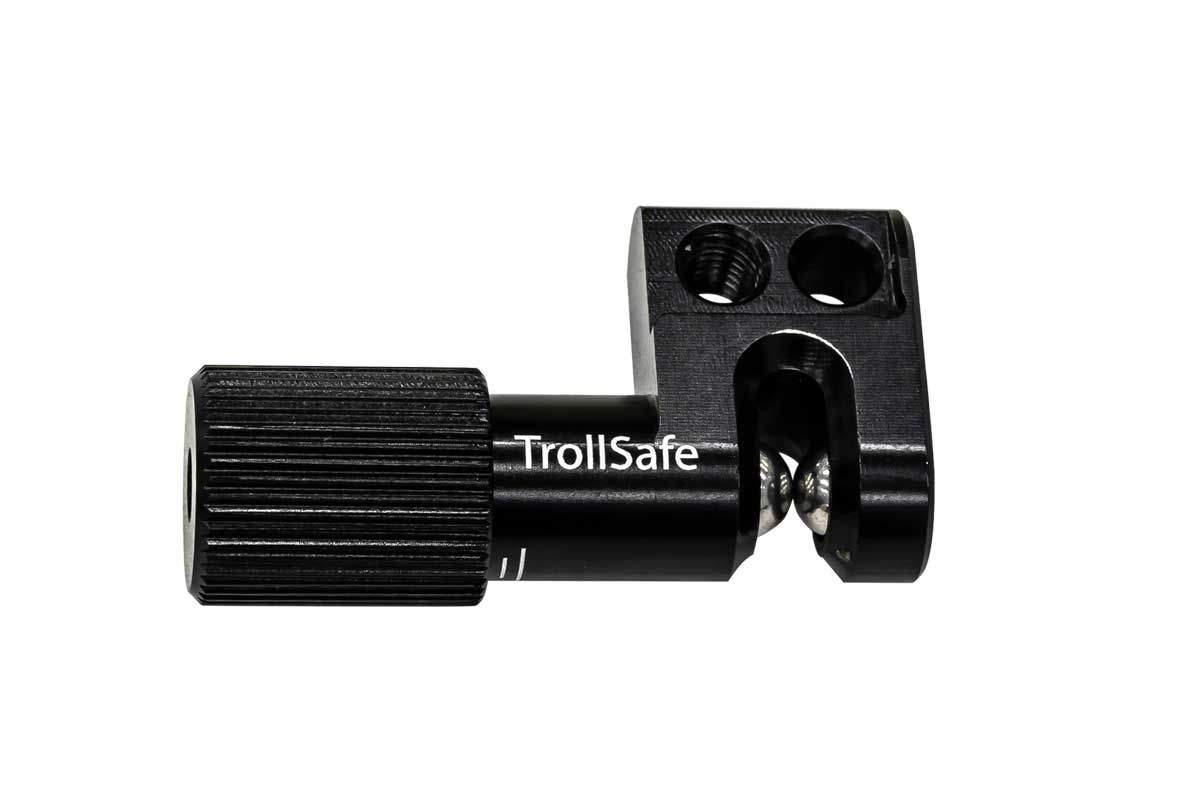

The PL1-S payload release turns the SplashDrone 4 into an aerial bait dropping system that can deliver 2KG of bait and drop the bait at targeted locations up to 4km. The PL-1 can be mounted together with your choice of camera accessories for targeted payload release. Using the SwellPro NaviFLy app, you can program the bait drop or replay flights to successful fishing locations.



Spec Sheet

Payload Release (PL1-S)
Waterproof：	IP67
Dimensions	59*38*50mm
Weight：	96g
Max. loading weight：	2Kg

Overview

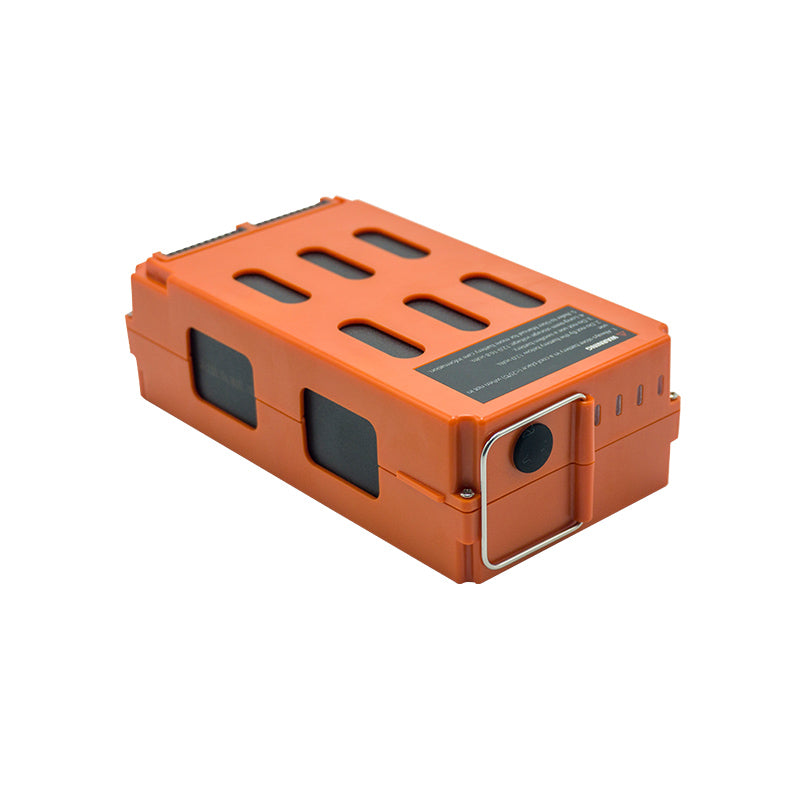

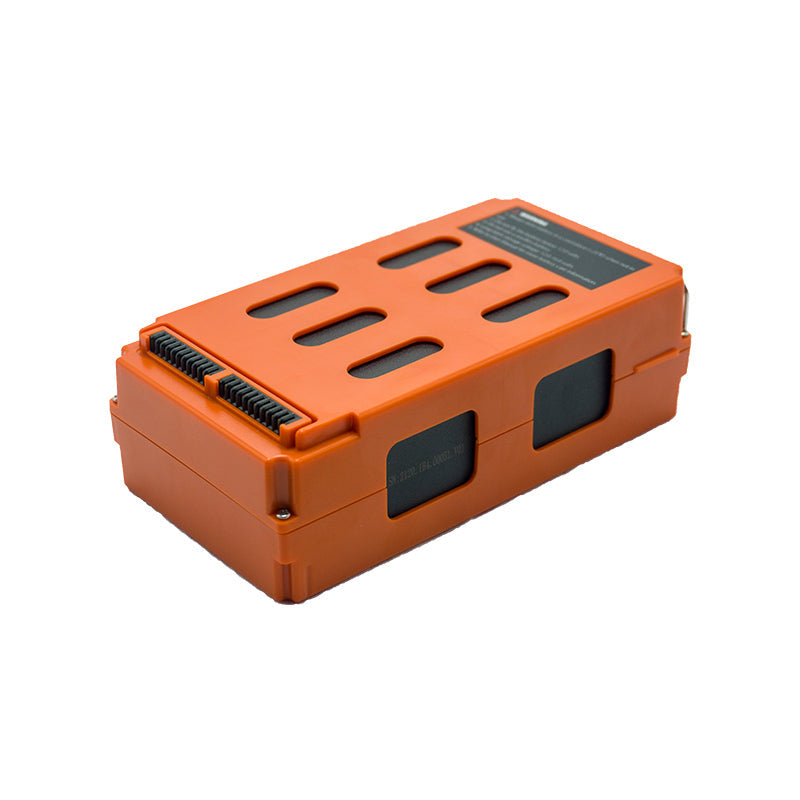

Microprocessor Controlled Smart Drone Battery

Each slide-in SD4 battery has its own integrated microprocessor controller, teamed with 6500mAh of high-performance lithium technology cells to provide up to 30 minutes of flight time. The SD4 smart battery provides:

• Real-time power monitoring and alerts
• Integrated balance charging to ensure battery health, safety and long life by constantly monitoring battery health, state-of-charge and temperature.
• Simpler battery storage and maintenance as the controller manages battery health even when not in the aircraft.
• Fast, slide in battery replacement. Integrated connectors allow for wire-free installation and replacement.
• Battery charging and usage data logging to allow for better battery management and event recording.

Spec Sheet

Nominal Capacity	6600mAh
Voltage	14.8V
Type	Intelligent 4S LiPo
Watt Hours:	97.68 Wh
Size	153.6*82.4*48.3mm
Weight	735 g (±5 g)
Working Temperature	-10℃ - 40℃
Charging Time:	1.5 hour
Max Charging Power:	84 W

Overview

The new GC2-S night-vision camera comes with a dimmable spotlight that allows use even in complete darkness. The high-sensitivity sensor of the GC2-S provides full color images even in dim light when normal cameras cannot return an image.

Download GC2-S User Manual As A Word Document

View & Download GC2-S Manual As A PDF Document

Spec Sheet

2axis Low Light Camera GC2-S
Waterproof：	IP67
Weight：	Approx.220g
Size：	113*92*80mm
Image Sensor:	1/2" 2M Starlight CMOS
Lens:	FOV: 66°
Burst：	Shut/3/5/10pcs
Interval:	Shut/1/3/5/10s
Video Resolution:	FHD: 1920*1080 30/60p | HD: 1280*720 120/60p
Max Video Stream:	64Mbps
Picture Format:	JPEG
Video Format:	MP4 / MOV
Support Memory Card:	Micro SD CARDS with a maximum capacity of 128GB, write speed ≥15 MB/s, and transmission speed of Class 10 or above or UHS-1 rating are supported
Working temperature:	-10℃ to 40℃

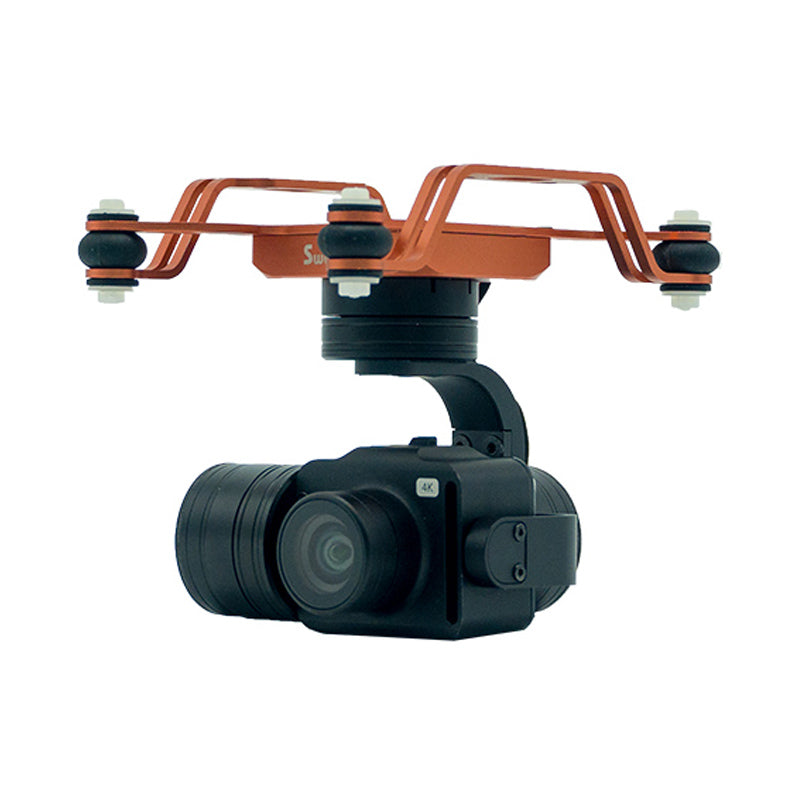

Overview

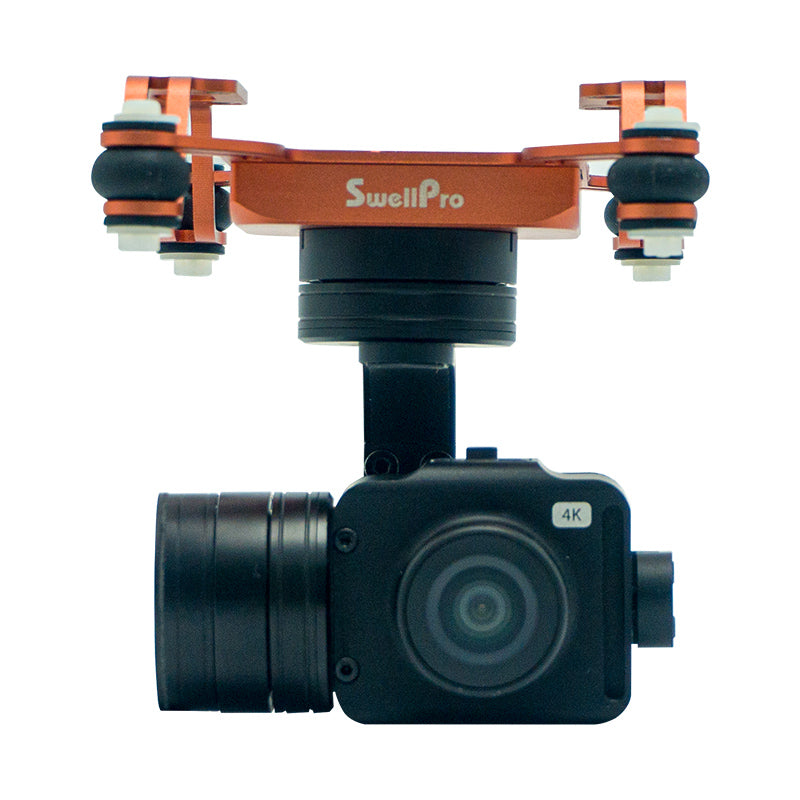

Capture smooth videos and crisp photos with the new, fully waterproof 4K camera stabilized by a 3-axis gimbal.

The powerful gimbal remains stable even after being hit by waves. The GC3-S can shoot photos in RAW. Special filters and manual adjustment of camera parameters whilst airborne allow for greater creative freedom.

Download GC3-S User Manual As A Word Document

View & Download GC3-S Manual As A PDF Document



Spec Sheet

3Axis Gimbal Camera GC3-S
Waterproof：	IP67
Axis：	3 axis(pitch,roll,yaw)
Pitching angle：	-90°to 0°
Maximum control speed:	Pitching 60°/s
Weight：	Approx. 320g
Size：	113*92*110mm
Image Sensor:	1/2.3" 12M SONY CMOS
Lens:	F4.53mm f/2.65, FOV: 92.6°
ISO range:	100 - 3200
Shutter speed	16 - 1/16000 s
Picture Resolution:	4:3/16:9  12M pixel
Photo shooting mode	A single shot
Burst：	3/5/10 pcs
Interval	1/3/5/10s
Video Resolution:	4K: 3840*2160/30P | 2.7K: 2704*1520/60P | FHD: 1920*1080 30/60/120p | HD: 1280*720/240p
Max Video Stream:	64mbps
Picture Format:	JPEG / RAW
Video Format:	MP4，MOV
Support Memory Card:	Micro SD CARDS with a maximum capacity of 128GB, write speed ≥15 MB/s, and transmission speed of Class 10 or above or UHS-1 rating are supported
Working temperature：	-10℃ to 40℃

Overview

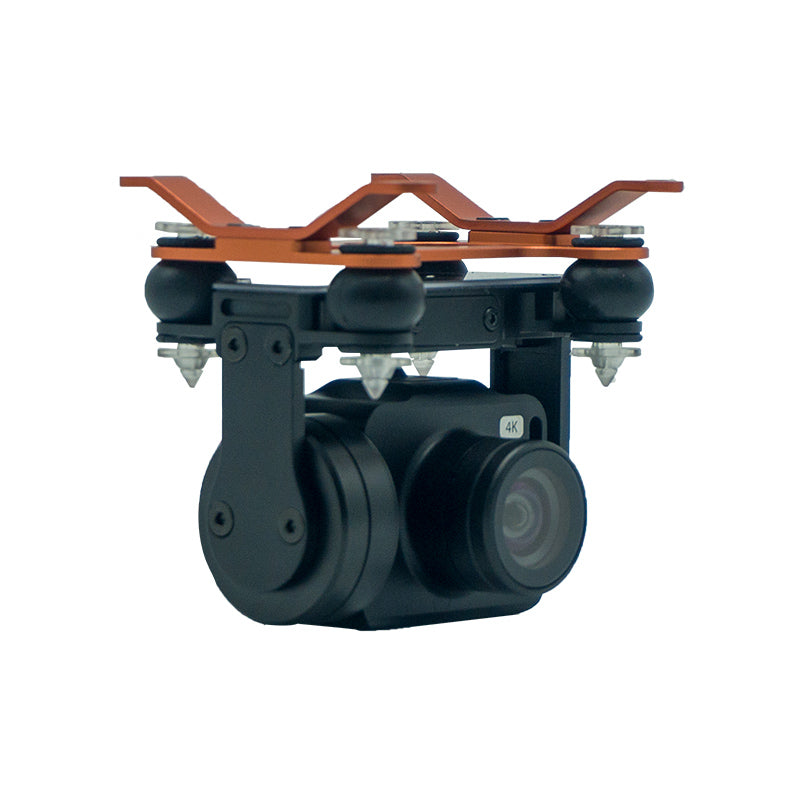

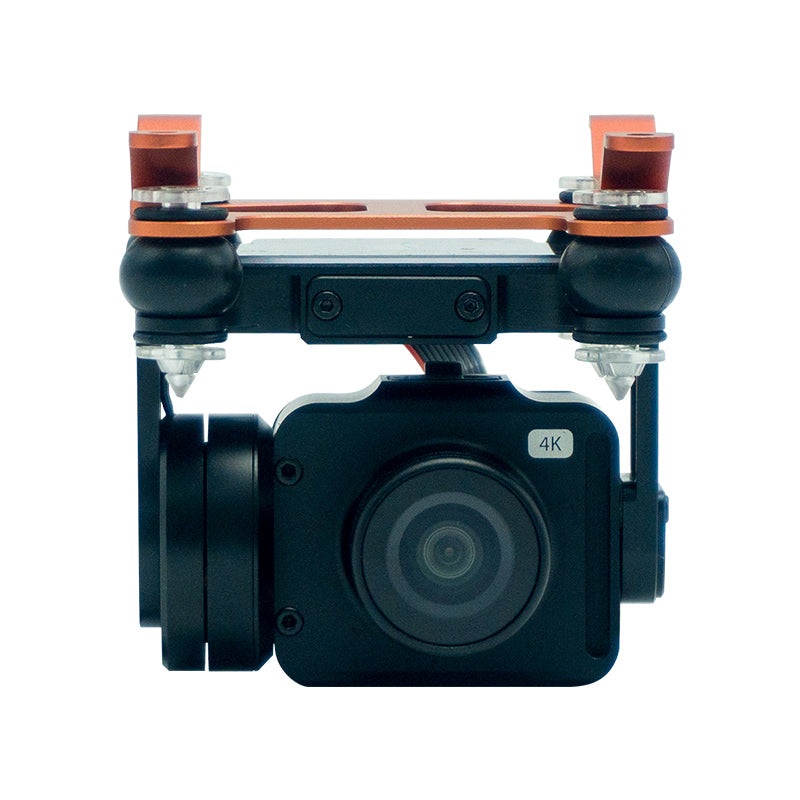

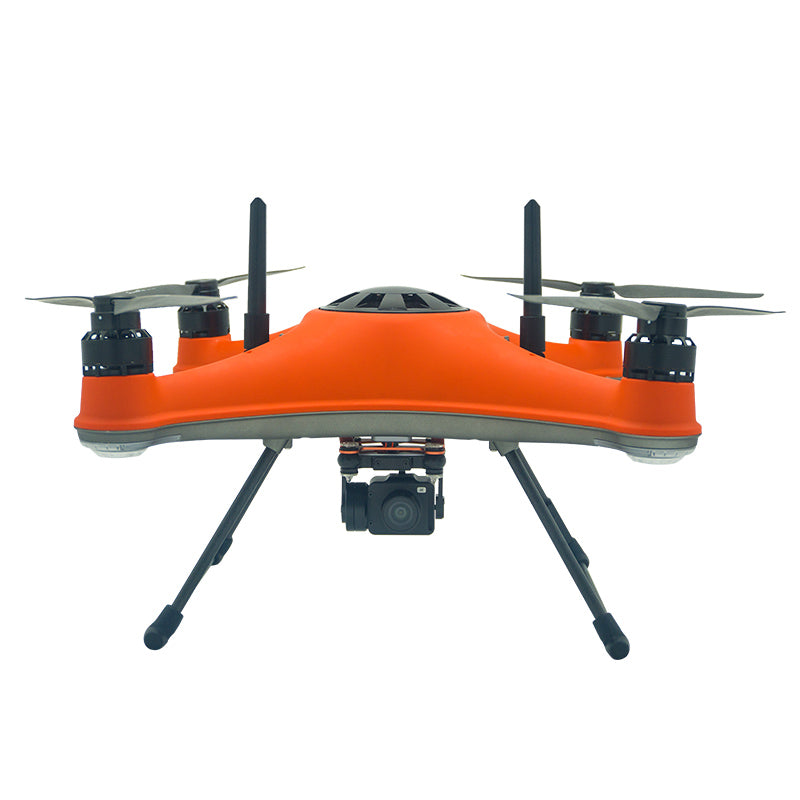

1 Axis Gimbal Camera for the SD4. Pitch up and down.

Download GC1-S User Manual As A Word Document

View & Download GC1-S Manual As A PDF Document

1Axis Gimbal Camera GC1-S
Waterproof：	IP67
Axis：	1 axis (pitch)
Pitching angle：	-90°to 0°
Maximum control speed:	Pitching 60°/s
Weight：	Approx. 145g
Size：	71*55*65mm
Image Sensor:	1/2.3" 12M SONY CMOS
Lens:	F4.53mm f/2.65, FOV: 92.6°
ISO range:	100 - 3200
Shutter speed	16 - 1/16000 s
Picture Resolution:	4:3/16:9  12M pixel
Photo shooting mode	A single shot
Burst：	3/5/10 pcs
Interval	1/3/5/10s
Video Resolution:	4K: 3840*2160/30P | 2.7K: 2704*1520/60P | FHD: 1920*1080 30/60/120p | HD: 1280*720/240p
Max Video Stream:	64mbps
Picture Format:	JPEG / RAW
Video Format:	MP4 / MOV
Support Memory Card:	Micro SD CARDS with a maximum capacity of 128GB, write speed ≥15 MB/s, and transmission speed of Class 10 or above or UHS-1 rating are supported
Working temperature：	-10℃ to 40℃

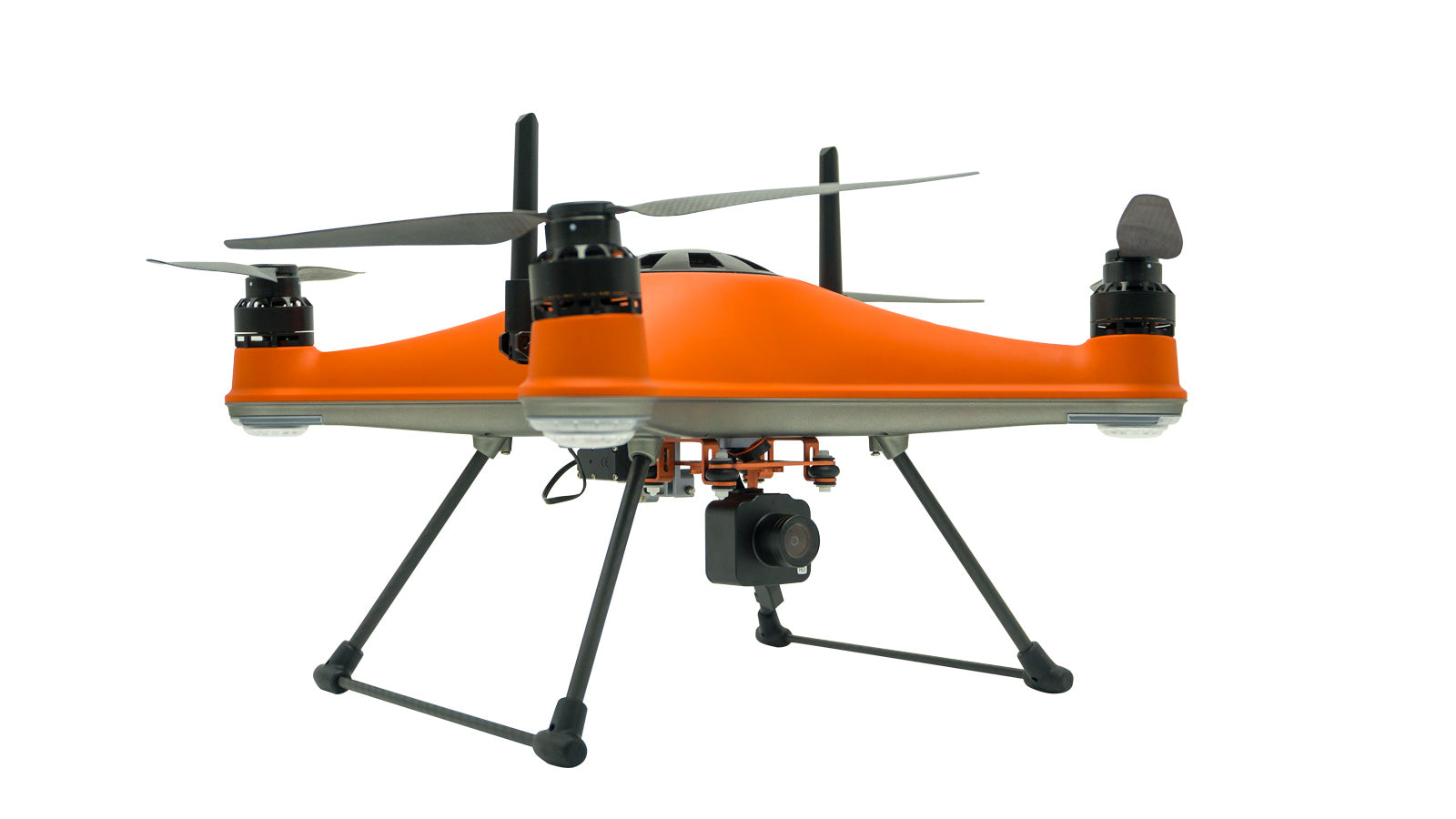

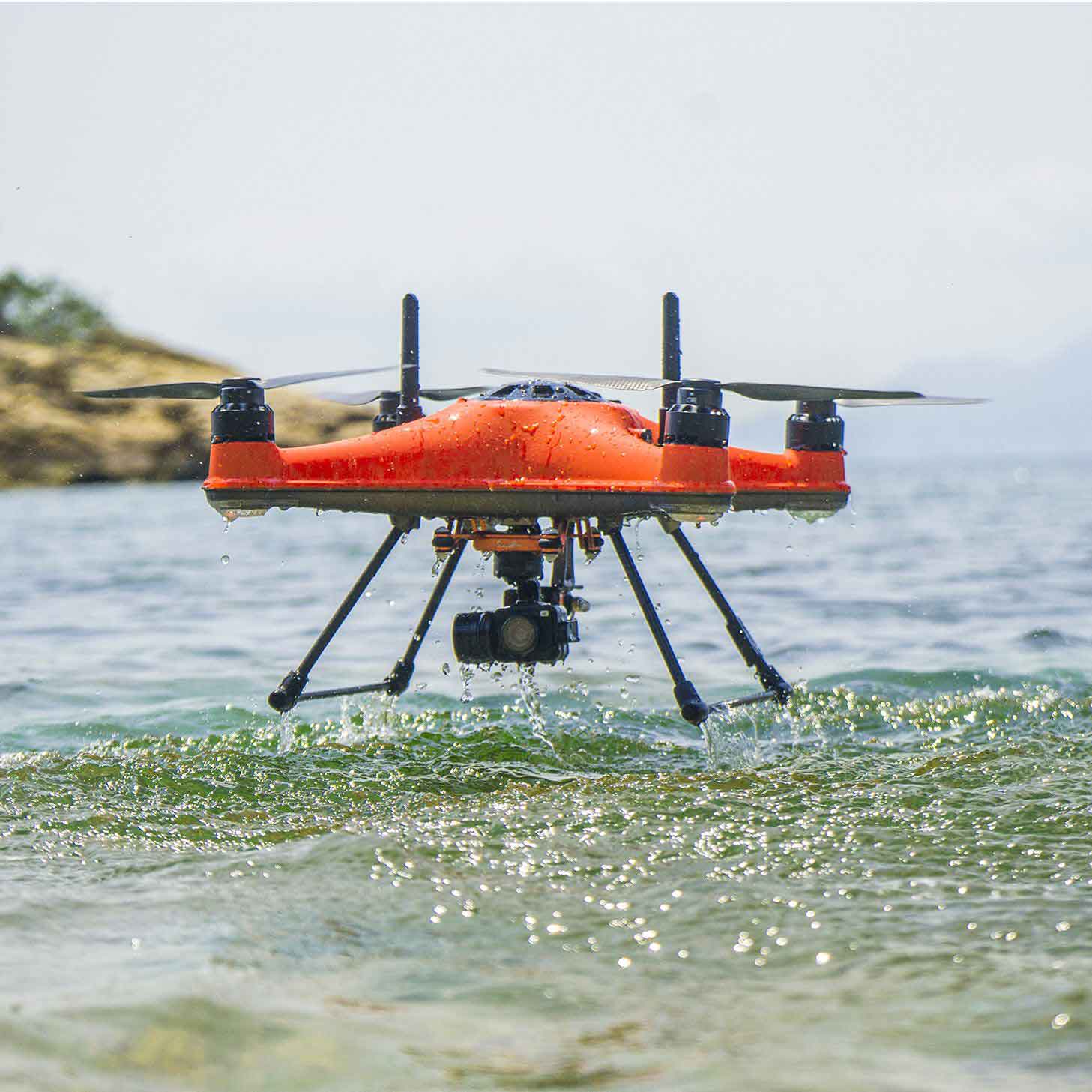

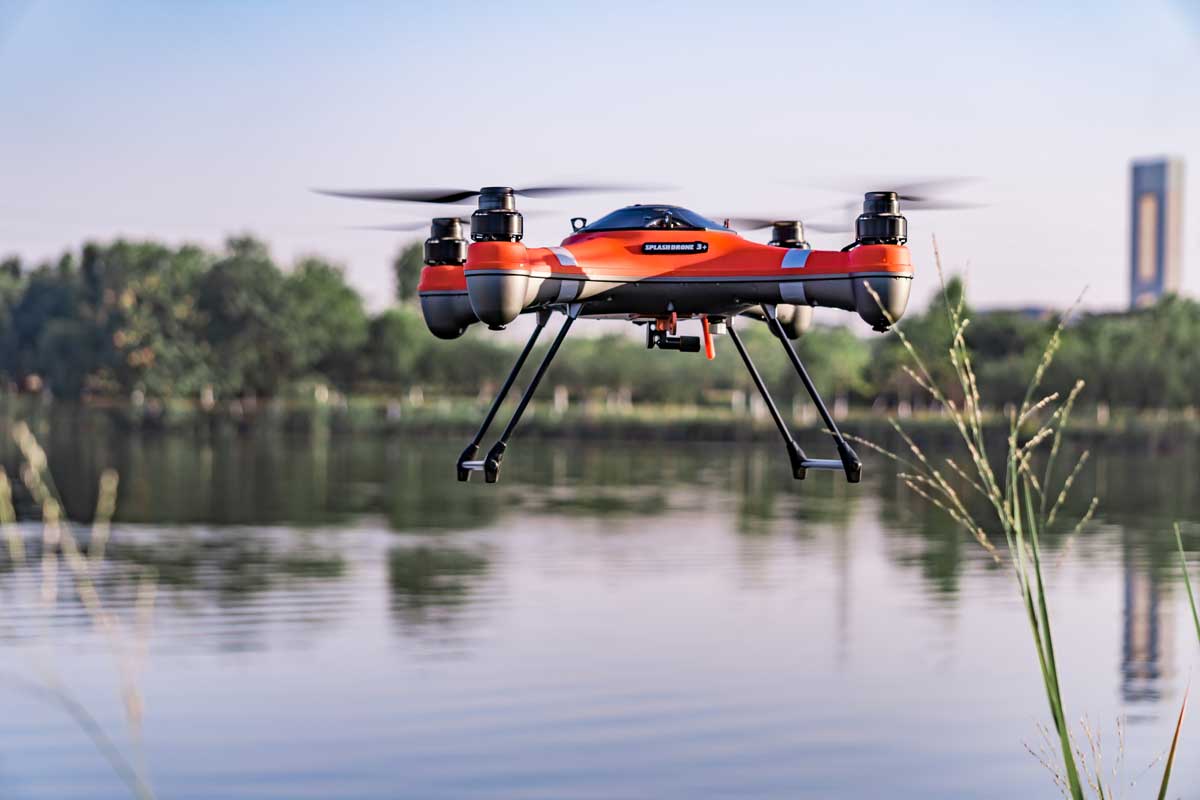

Overview

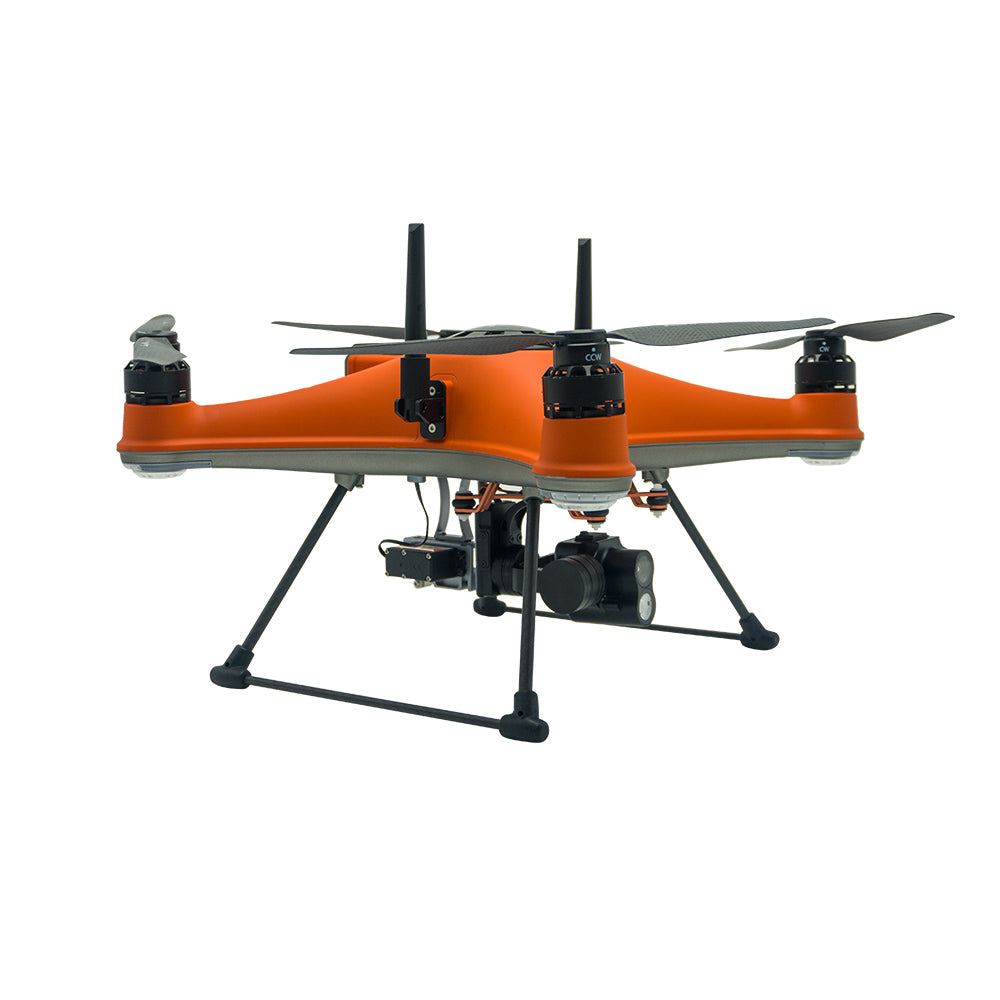

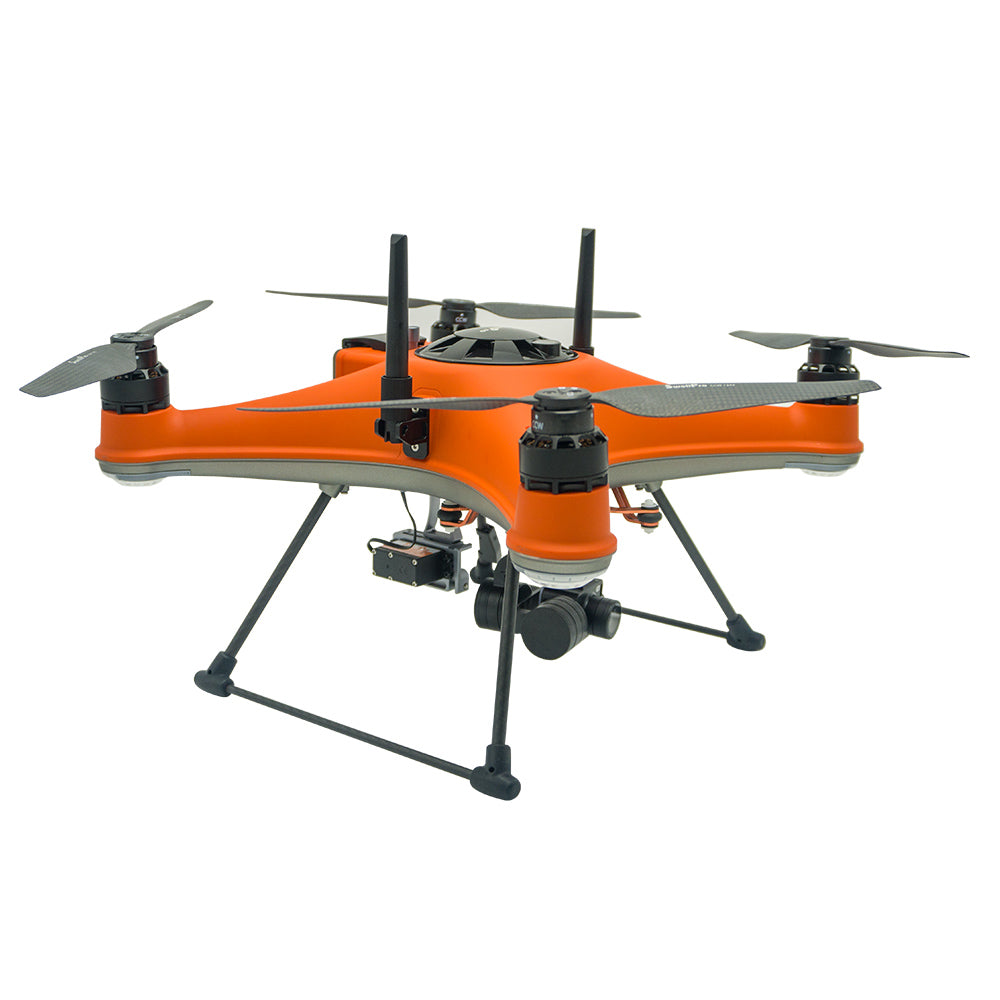

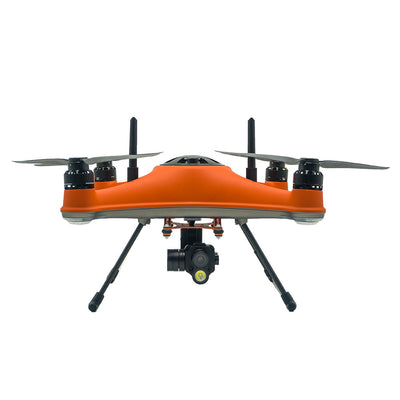

The 5th Generation of the Swellpro Waterproof Drones has arrived - and it's better than ever.

The SD4 represents over seven years of design improvements and experience, resulting in Swellpro's most powerful all-digital floating & flying platform to date.

Without doubt a new benchmark for Waterproof Drones has again been set, quite simply there is no drone in the world like it.

• IP67 Rated Waterproof Drone
• IP66 Rated Controller - Now With The Option To Mount A Smart Phone Or Tablet
• 5KM Image Transmission Range On The Standard Antennas
• Upgraded 30 Minute Flight Time
• 2KG Payload Capacity
• Slide-in Smart Battery

The SD4 comes packed with loads more features and an even bigger range of payloads including the established three axis gimbal camera, which now shoots RAW files.

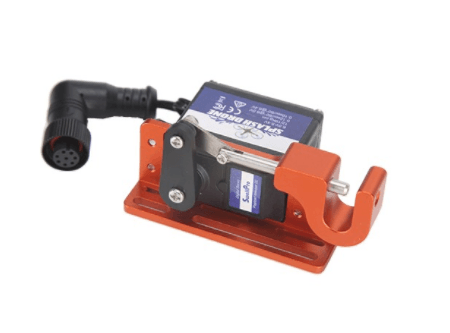

A collection of payload release mechanisms are still available as well as a gamechanging thermal imaging camera option. The Splashdrone 4 also comes equipped with a new and improved powerful mobile APP.

Microprocessor Controlled Smart Drone Battery

Each slide-in SD4 battery has its own integrated microprocessor controller, teamed with 6500mAh of high-performance lithium technology cells to provide up to 30 minutes of flight time. The SD4 smart battery provides:

• Real-time power monitoring and alerts
• Integrated balance charging to ensure battery health, safety and long life by constantly monitoring battery health, state-of-charge and temperature.
• Simpler battery storage and maintenance as the controller manages battery health even when not in the aircraft.
• Fast, slide in battery replacement. Integrated connectors allow for wire-free installation and replacement.
• Battery charging and usage data logging to allow for better battery management and event recording.

High-visibility, innovative waterproof body design

The design of the SD4's fuselage brings together SwellPro engineers' deep experience and understanding of waterproof drones, materials and processes. Its structure is simple in design, attractive in appearance, lightweight, strong and most importantly functional. The body has been designed to facilitate upgrading, repairing or replacement of parts as well as supporting various custom modifications thanks to integrated mounting points. A hinged, waterproof hatch makes changing the slide-in battery module fast and easy.

Powerful propulsion system with tuned flight computer

Following 18 months of intensive R&D, the SwellPro SD4 marries new motors, digital reflux speed controllers (ESC), an all-new custom flight computer and gyroscope to deliver a fully featured multi-purpose flight platform. Able to fly in challenging weather conditions with variable loads, the new SwellPro SD4 provides a reliable and flexible solution to the challenges of operating safely over water for long distances.

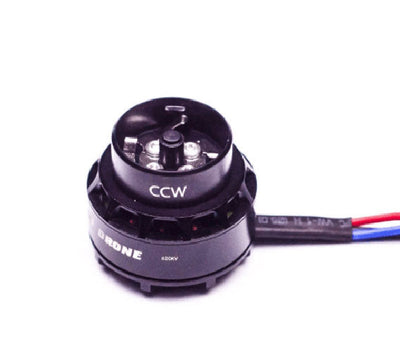

Waterproof motors

The newly designed 3510 motors have strong and stable performance with high load-carrying capacity and excellent flight performance. The motors have been specifically designed for the marine environment with premium materials, excellent waterproof coatings and salt-water rated bearings to resist damage from salt and sand in the marine environment. Please thoroughly rinse after using in saltwater, ensuring there are no salt deposits remaining.

Carbon fiber propellers

The SwellPro SD4 utilizes tuned and balanced 12” quick-release carbon-fibre propellers which are proven, durable and unaffected by marine corrosion. Their stiffness and accuracy of pitch make these an ideal solution for high-performance aircraft. The propellers are secured with quick-release bayonet mounts instead of the more common spin-on propellers that can detach when the drone is on the water.

New Reflux Electronic Motor Speed controllers (ESC)

The SD4 employs new 40A high-speed, digital reflux, energy-saving speed controllers. With fast response, low noise and integrated heat management the SwellPro SD4 has shorter braking distances, more stable flight and lower internal temperatures to help ensure flight safety and reliability.

Payloads up to 2kg

The SD4 can comfortably lift a payload of 1.5kg with a maximum payload weight of 2kg.

Integrated Anti-collision Strobe

On the top of the SD4, a bright white aircraft anti-collision strobe helps the pilot and other aircraft pinpoint the drone in low-light and darkness - meeting the regulatory requirements of many regions. The strobe can be activated or deactivated in flight by the SwellPro app.

Fully digital radio systems for clear, long-distance transmission

Using new advanced wireless digital radios, the SD4 can broadcast its image up to 5km away while airborne. Innovative adjustable antennas can be setup to maximize range depending on the requirements of the mission being flown. When flying just 0.5m above the water, range is still up to 2.8km and floating on the water surface the transmission range is 500m.

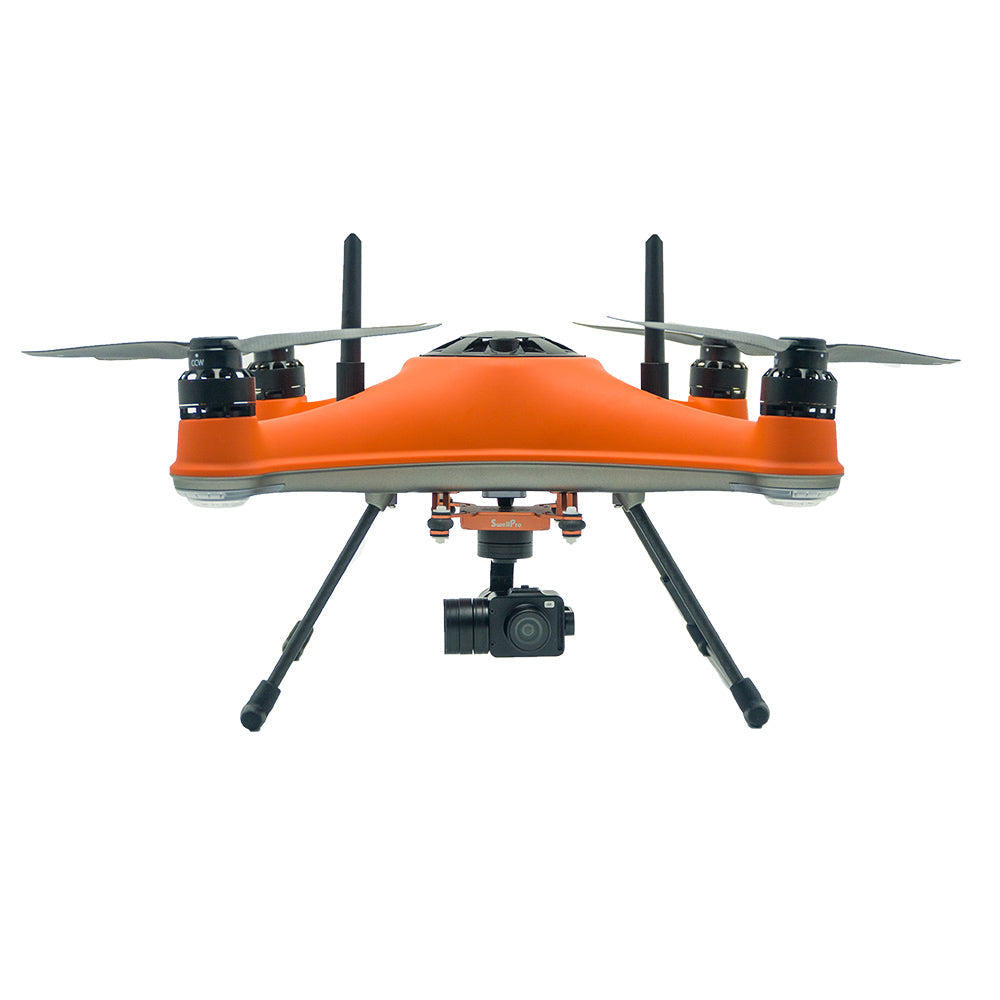

Multi-connect

Unlike many other drones, the SD4 allows for multiple devices and apps to be simultaneously connected to the drone’s flight systems either by multipoint WiFi, ethernet or serial interface.

Automatic Flip Function

If the aircraft is flipped in the water by a wave, the SD4 flight computer immediately locks the propellers for safety. When the pilot re-arms the drone, the drone will automatically perform a self-righting action and be ready for take-off.

Dark Mode

For covert, nighttime missions or to prevent startling wildlife at night, the drone’s navigation lights can be extinguished via the SwellPro app.

Open Platform Integration



Open Flight-Control API Interface

Using the SwellPro Open API, third-party manufacturers and users can interface to the SD4 flight platform. Third-party equipment can gather real-time flight data to provide context to sensor readings and to enable control of aircraft functions, gimbal, camera trigger and third-party instruments for industry-specific uses.

Pass-thru Two-way Serial Data Port

To facilitate third-party integrations, the SwellPro SD4 and remote controller are equipped with a unique pass-thru serial port (UART/TTL) that allows data generated from third-party payload sensors on the drone to be passed directly through to the serial port and WiFi interface of the remote controller. This two-way interface also allows real-time control signals from third-party equipment on the ground to be passed back to the sensor or drone flight computer.

Direct Ethernet Port

As well as multipoint WiFi, the SD4 remote controller also provides a wired ethernet connection. This port replicates the functionality of the WiFi and allows a wired connection for a PC or other physical ethernet equipment.

SDK for Drone, Cameras and Radio System Integration

The SwellPro SDK for SD4 facilitates interfacing to flight instructions and flight telemetry, camera control and settings as well as the digital radio system.

Drone WiFi hotspot

In addition to the WiFi hotspot on the remote controller, the SD4 drone also supports local connections over WiFi for simplified connection of third-party payloads without the need for cables. The drone’s WiFi network is transparently extended down to the WiFi network of the remote controller over the SwellPro datalink.

Payloads

Multiple Payload Options

The all-new SD4 body has been designed for integration with SwellPro accessories as well as custom and third-party modules both above and below the drone. SwellPro accessories like cameras and payload release modules are independent modules that can be mounted together to allow for different combinations according to user needs. Multiple interface ports allow for the simultaneous control and attachment of different modules.



	GC1-S 1 AXIS GIMBAL CAMERA With the same sensor as the GC3-S, the GC1-S can capture high quality 4K videos and crisp photos. It also has a Pro mode and supports RAW photo. More Product Info
	GC2-S 2 AXIS LOW-LIGHT GIMBAL CAMERA The new night vision camera comes with a spotlight that can illuminate nighttime scenes and restore true colors. Even without the LED, the camera itself can still capture decent details in low-light situations. More Product Info
	GC3-S 3 AXIS GIMBAL CAMERA Capture smooth videos and crisp photos with our new, fully waterproof 4K camera stabilized by a 3-axis gimbal. The GC3-S is our flagship gimbal camera. The powerful gimbal remains stable even in water while taking underwater shots. The GC3-S now has a Pro mode and supports RAW photo. ND filters can also be added for greater creative freedom. More Product Info
	GC3-T 3 AXIS GIMBAL THERMAL CAMERA GC3-T waterproof 3-axis gimbal thermal camera combines both a high resolution thermal infrared camera and a full HD low-light camera with a dimmable LED flashlight, which can provide both infrared and visible light imaging simultaneously. More Product Info

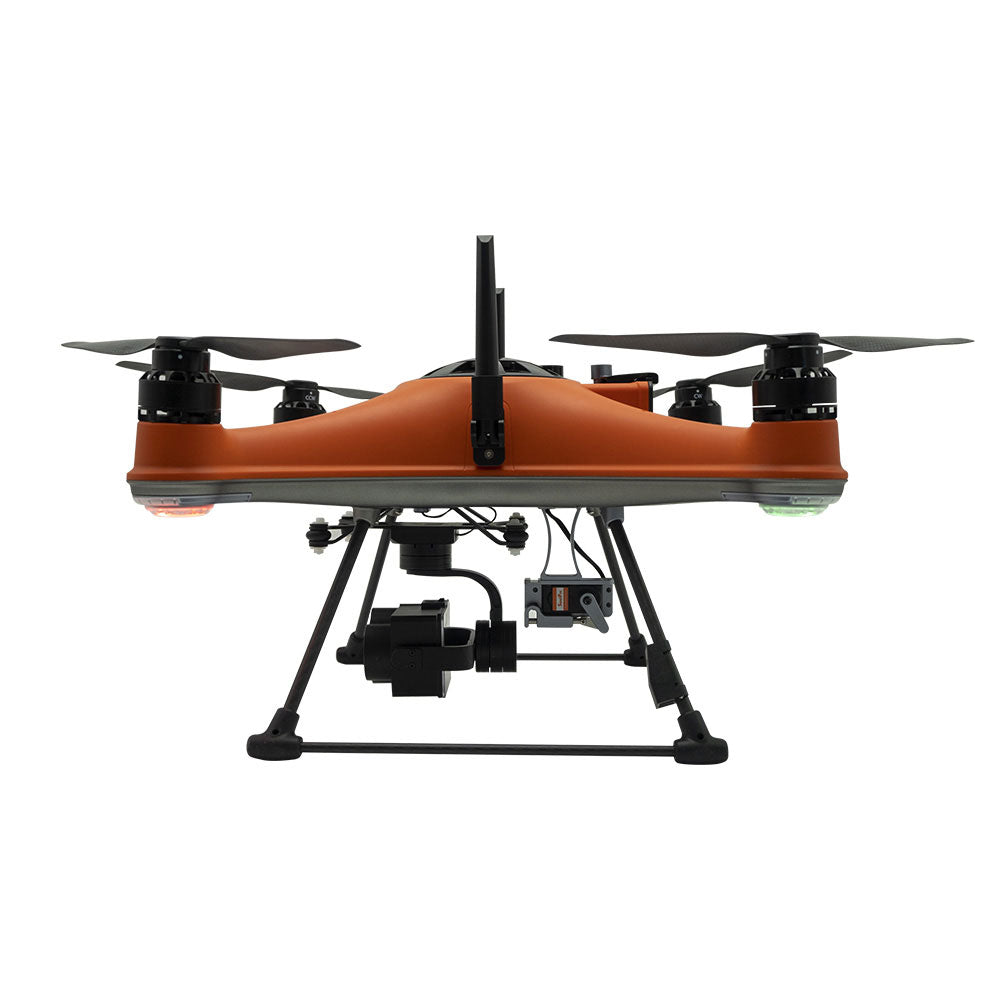

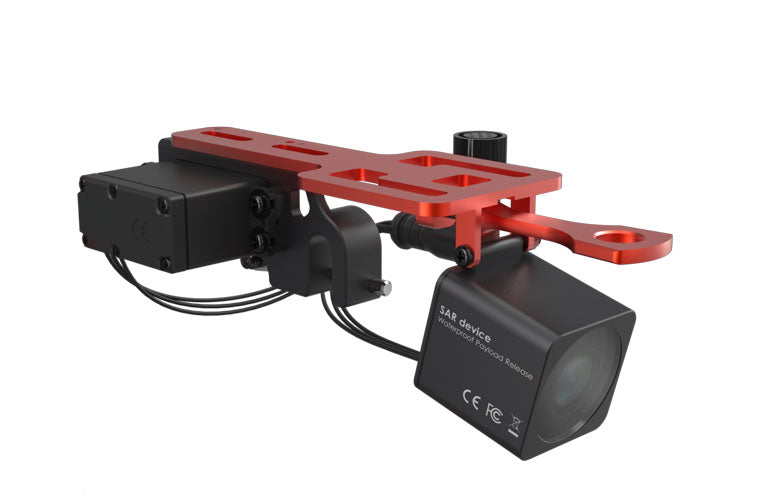

	PL1-S Single Payload Release The PL-1 payload release turns the SplashDrone 4 into an aerial bait dropping system that can deliver 2KG of bait and drop the bait at targeted locations up to 4km. The PL-1 can be mounted together with your choice of camera accessories for targeted payload release. Using the SwellPro NaviFLy app, you can program the bait drop or replay flights to successful fishing locations. See all camera options here More Product Info
	FAC Fixed Angle Camera More Product Info

Spec Sheet

Aircraft
Waterproof Rating：	IP67
Drone Weight (Including Battery & Props	2.18KG
Axis Diameter	450mm
Max Ascend Speed	4 m/s
Max Descend Speed	4 m/s
Max Speed	22 m/s (49MPH) in ATTI mode & 10 m/s (22mph) in GPS Mode
Max Tilt Angle	ATTI: 12.5°; ATTI (fast): 25°
Max Takeoff Altitude:	120m in GPS mode & ATTI mode - there is no limitation
Max Wind Speed Resistance:	8 m/s (18MPH) (11-16knots)(F4); 14 m/s (31MPH) (F7) peak gust
Max Flight Time:	30 mins (no wind & no load); (approx. 25 mins with GC3-S，approx.15 mins with load of 1.5kg)
Max Flight Distance：	5 KM
Max Payload Capacity:	2KG
Propellers：	Carbon fiber quick release propellers
Motors:	#3509 - 740Kv
Operating Frequency:	5180 - 5875 MHz
Transmitter Power (EIRP):	FCC/IC: ≤ 24 dBm CE/SRRC/MIC: ≤ 20 dBm
Working Temperature	-10℃ ~ 40℃
Satellite Positioning Systems：	GPS/GLONASS
Hovering Precision:	±0.5 m (vertical); ±0.5 m (horizontal)
Pass-through Serial Port：	Connect to a third-party device and transfer the data of the third-party device to the remote control
UART:	Allows for TTL serial port to TCP, with baud rate of 115200
Wi-Fi Hotspot	IP: 192.168.1.101:2222
Power Input：	12V/2A | 5V/2A

Controller

Fully Waterproof IP66-Rated Multifunction Remote Controller

The SwellPro SD4 remote controller has been carefully designed to provide worry free operation in harsh environments whilst remaining easy to use. Its IP66 rating ensures that it is protected from strong jets of water as well as sand and debris.

Built-In High-Quality Battery

An integrated SONY battery provides a maintenance-free power solution for the remote controller and up to 8 hours of battery life or 12 flights per charge.

Considered Design

All aspects of the new SD4 remote control have been refined and considered. The layout provides intuitive control of all aircraft features while the milled aluminum smart phone bracket ensures that your attached device is secure and can be easily adjusted to the optimum angle for viewing. In addition to audible alarms, the remote controller also vibrates to warn the pilot of issues.

Digital Telemetry Display

The integrated high-brightness 2-inch digital display provides critical aircraft telemetry and flight data giving the pilot real-time aircraft status even when flying without a tablet or phone attached.

Wi-Fi Multi-Point Hotspot

To ensure waterproofing of the remote controller and connected devices, the SD4 remote controller can provide a high-speed WiFi connection rather than cabled. A pioneering design allows multiple devices to be connected simultaneously, allowing different apps and devices to be used at the same time during flight.

Built-in GPS

The remote controller’s built-in GPS module allows the SD4 to include the pilot’s precise location in its flight calculations, enabling real-time tracking and dynamic return-home functions, such as returning to a moving boat.

Innovative flight controls

The patented "Smooth+" flight dials allow the pilot to switch from joystick control of the roll and yaw to a dial to finely adjust and maintain a desired altitude. Whether filming or surveying, with Smooth+ the pilot can “dial-in” just the right amount of aircraft movement to achieve and maintain smooth pans, orbits and sweeps - hands-free!

Remote Controller (MRC)
Waterproof Rating:	IP66
Operating Frequency:	5180 - 5875 MHz
Transmitter Power (EIRP)	FCC/IC: ≤ 24 dBm CE/SRRC/MIC: ≤ 20 dBm
Real-time Video Transmission	720P@30fps
Latency	200 ms (Dependant on actual shooting environment and mobile devices)
Battery	2S 3600mAh
Working Time:	7 hours
Working Current/Voltage:	0.3A/7.4V
Ethernet Port	IP: 192.168.2.220:2222
Wi-Fi Hotspot	IP: 192.168.2.220: 2020; Default password: 12345678
Mobile Device Mount:	Suitable for any size phones; Tablets require larger mount(sold separately)
Screen	2.68 inch, 128x64
Working Temperature	-10℃ - 40℃
Remote Charging time:	3 hours
Power Input:	5V/2A

App

Apple Download	Android Download

To coincide with the launch of the SD4, SwellPro have developed a new, powerful mobile app that enhances and optimizes operation of the SD4. Connected wirelessly to the SD4 remote controller, the app allows logging, planning, recording of missions as well as the control and parameter setting of your cameras and other modules in flight. Running the SwellPro app when you fly adds advanced functionality like mapping, routing and intelligent modes to the standard flight modes in the remote controller.



---

If you are using the SDFly 2 App, and there is no image showing on the App. Please switch to the original APP, download links below.



Apple Download	Android Download



GPS Mode

In this native mode the multi-mode GPS module, barometer, gyroscope and accelerometers work together to realize intelligent flight functions such as accurate height setting, fixed-point hovering, intelligent flight and intelligent return. In this mode the maximum flight speed is 22mph, the maximum ascent speed is 9mph, and the maximum descent speed is 7mph.

Follow Pilot Mode

Utilizing the GPS data stream from the remote controller, the SD4 can faithfully follow the position of the pilot on a moving boat and record stable, high-definition video. The Follow motion algorithm tracks the position and angle of the remote controller relative to the drone and supports leading, parallel or chasing camera positions. Choose your preferred angle and height and the SD4 will keep the subject in frame. With good GPS coverage, the SD4 can follow at speeds up to 22 mph.

ATTI Mode

In this mode, the flight computer maintains aircraft altitude and attitude but does not stabilize position. This mode is particularly useful when landing the drone on a moving boat. The maximum flight speed in this mode is 40mph. With good GPS coverage, automated return home functionality is maintained.

Manual+ Mode

For truly advanced flying, the Manual+ mode allows experienced pilots to directly control the flight characteristics of the aircraft usually managed by the flight computer. In this mode, the aircraft will maintain whatever attitude the pilot chooses. Altitude, speed and attitude of the aircraft are all pilot controlled, providing a truly acrobatic flight experience. Experience pilots only should use this mode.

Orbit Mode (circle)

Hover above a point of interest (POI) and select Orbit mode. The SD4 will reverse 10m and then automatically orbit, keeping the point of interest in the center of the circle. The remote controller allows adjustment of the height, speed, direction, radius and camera position of the orbit. You can also choose Orbit Follow which will orbit whilst following a moving object at a chosen radius.

Intelligent Orbit

Using the SwellPro app, the pilot can select a map coordinate for a programmed orbit. Set the orbit circle radius, the number or revolutions, speed, height, and direction and the SD4 will fly to the location and perform the maneuver automatically while keeping the camera tracking the point of interest.

Headless Mode

In this mode, regardless of the drone’s orientation, pulling back on the remote controller’s pitch joystick will make the SD4 fly back towards the pilot’s position.

Cruise Mode

Set the speed and direction of flight and in Cruise mode the SD4 will automatically hold these settings for you when you release the joysticks. Height, speed and direction can still be adjusted with the remote controller.

Dynamic Return

The SD4 constantly records the GPS position of the pilot, allowing the aircraft to always return to the pilot even if they have moved from the original take-off point. This dynamic home-point location is used if the aircraft needs to return home due to a loss of control signal error or if the pilot initiates a return to home command.

Tap-to-Fly

The SD4 can autonomously fly to a selected location on the map and hover awaiting further commands. Tap the desired location on the map or input the coordinates manually, then then set the altitude and speed and the SD4 will do the rest.

Plan routes or Playback Flights

Using the SwellPro app, you can preplan a mission by selecting a series of waypoints on the map with individual speed, approach and hover heights, wait time and camera angle. Alternatively, you can playback a flight from the logs and the drone will accurately replay a prior flight on autopilot. Name and save your missions to the app library of favorite routes for later replay.

Grid Mission Planning

Connect up to 256 waypoints to form a mission area and the SD4 will perform a uniform grid pattern flight path at the selected speed and interval settings. This is particularly useful for search and rescue, surveys, inspections and orthomosaic photography.

Last Known Position

The remote controller always displays the current coordinates of the aircraft. Should the drone be flown out of range or crashed, the remote controller will continue to display the last-know position of the drone to aid recovery.

Overview

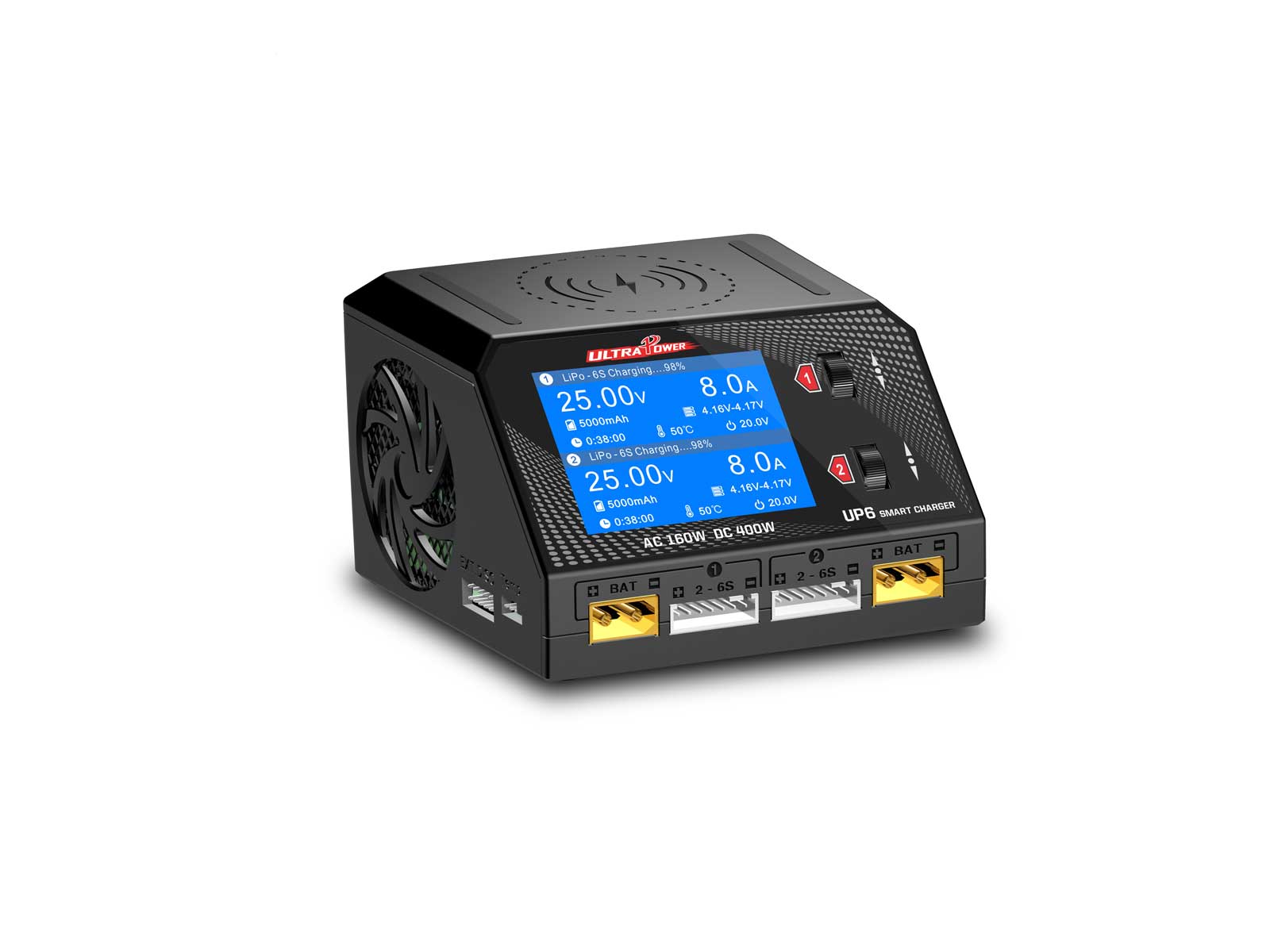

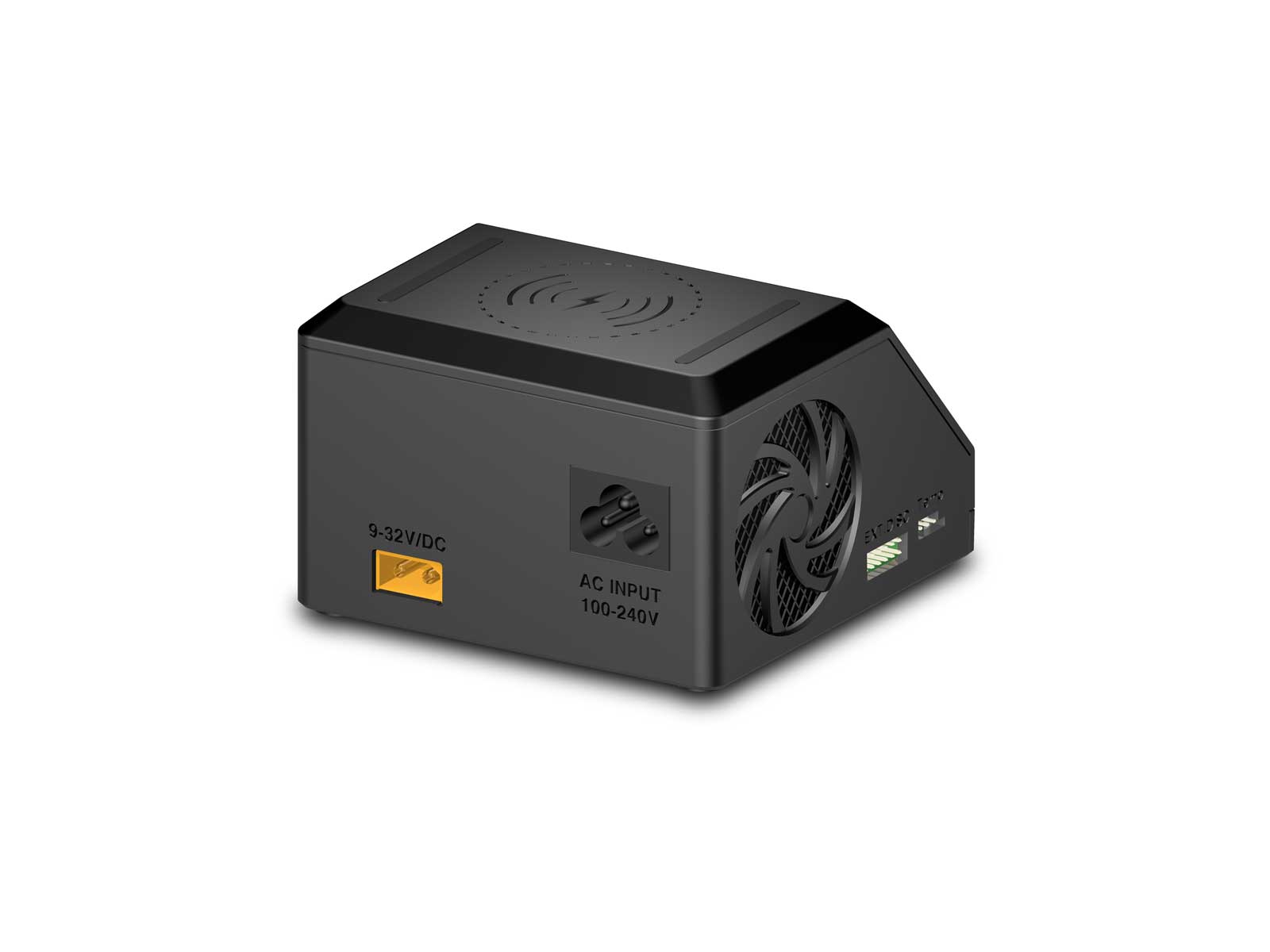

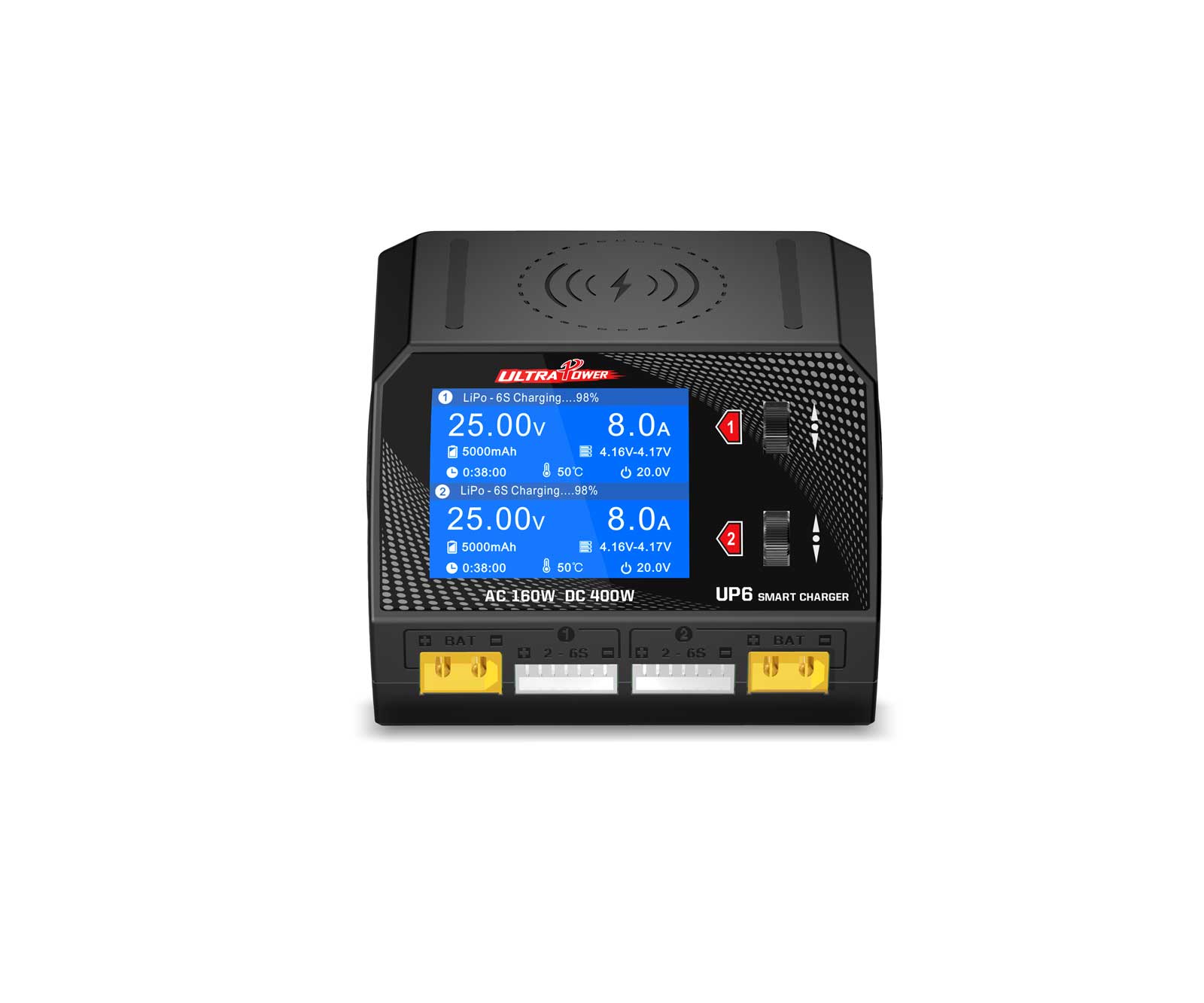

Wireless Phone Charging

Specification

Overview

Specification

Overview

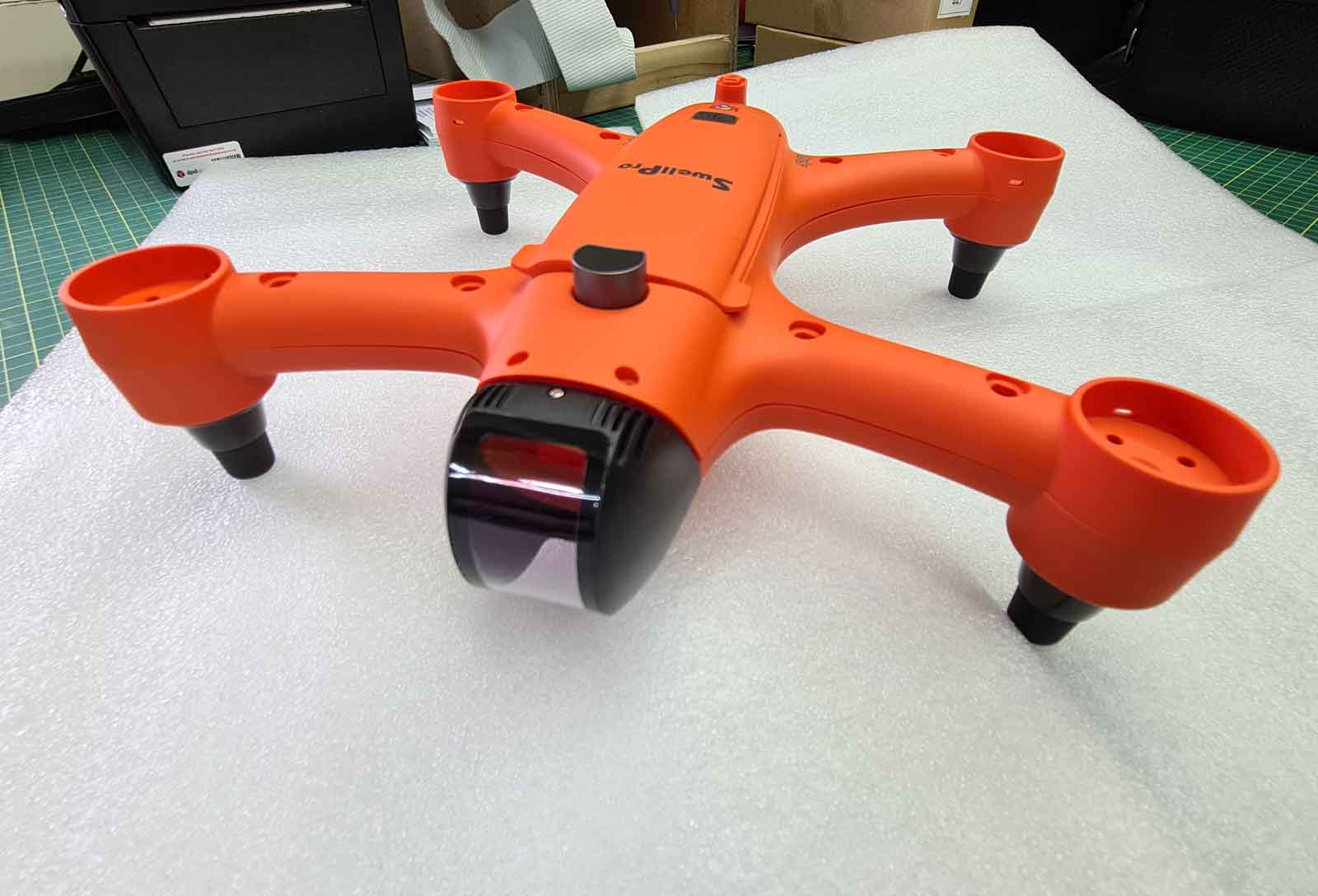

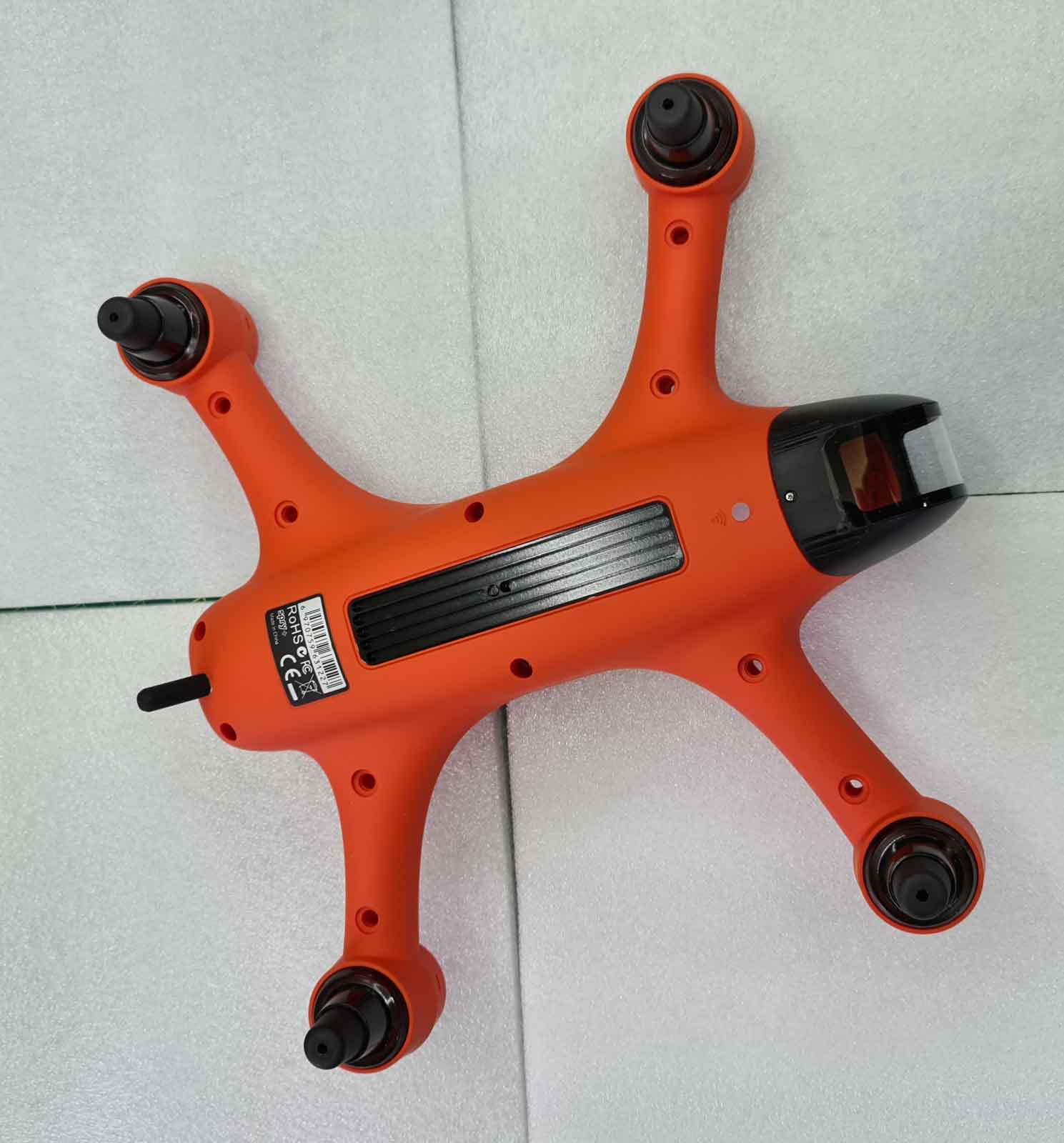

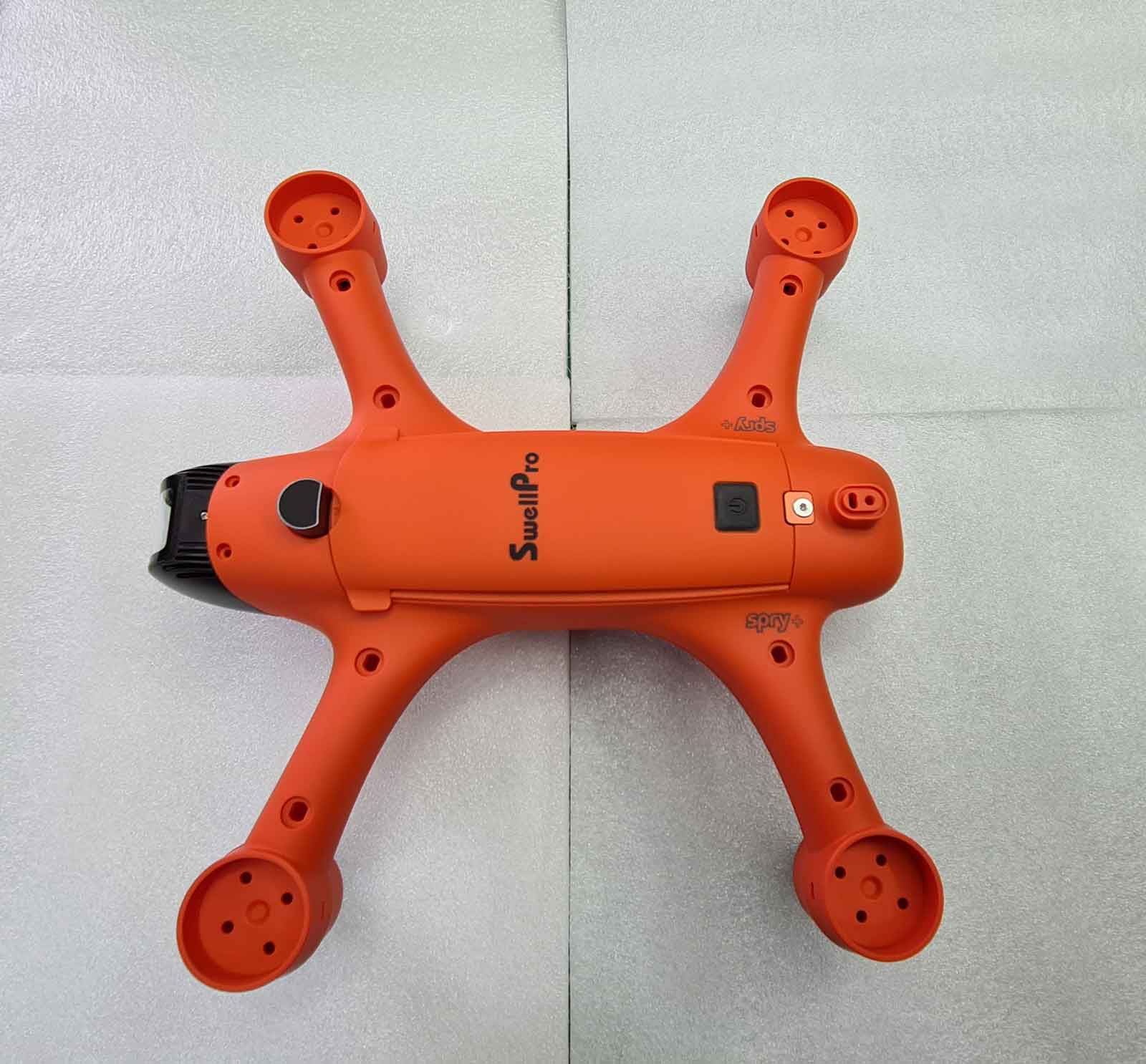

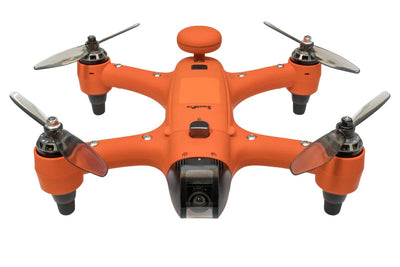

Empty shell for the Spry+ complete with glass dome.
Spry+ screw set available seperately here

Overview

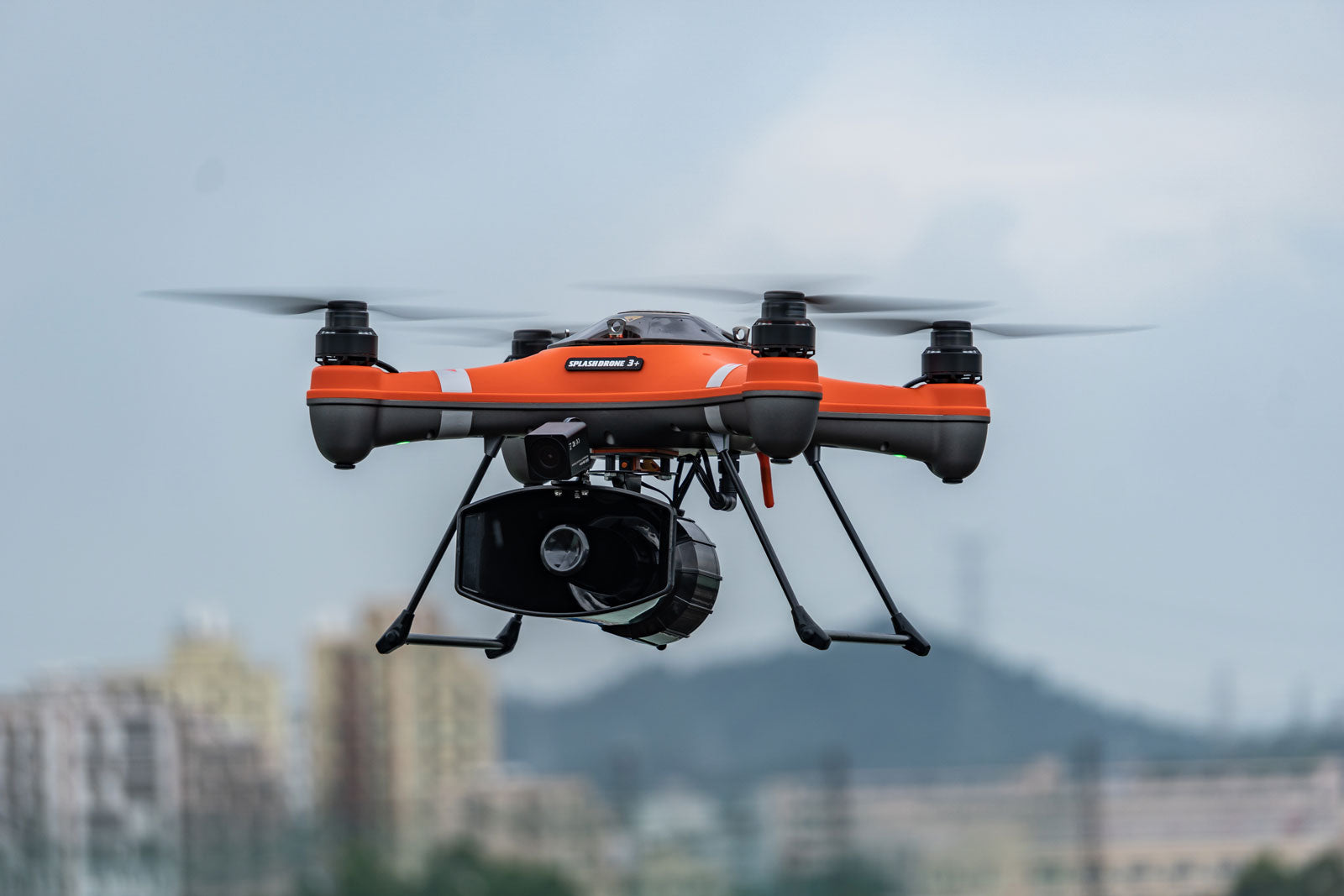

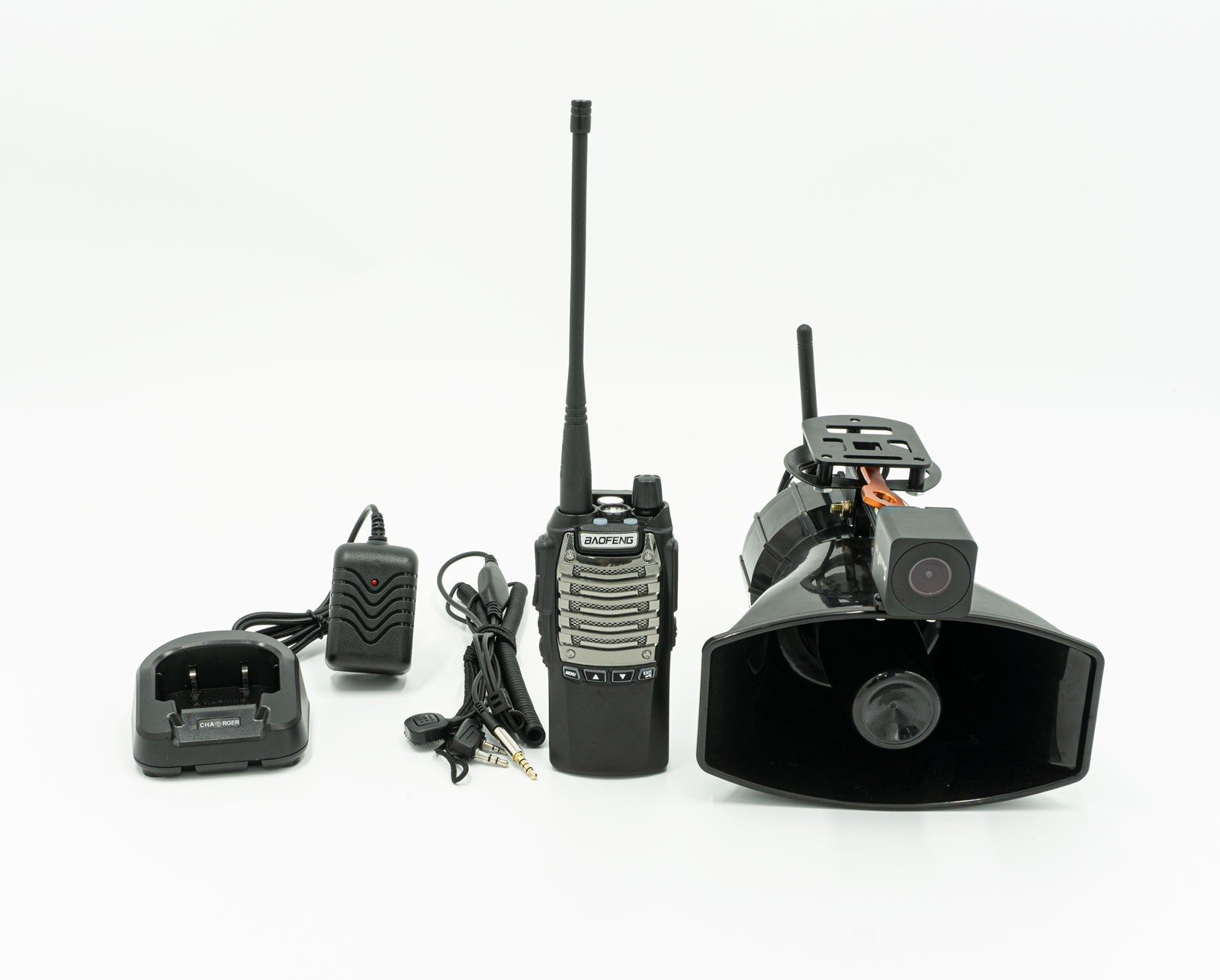

The HHQ wireless megaphone from SwellPro gets your message to where it needs to be.

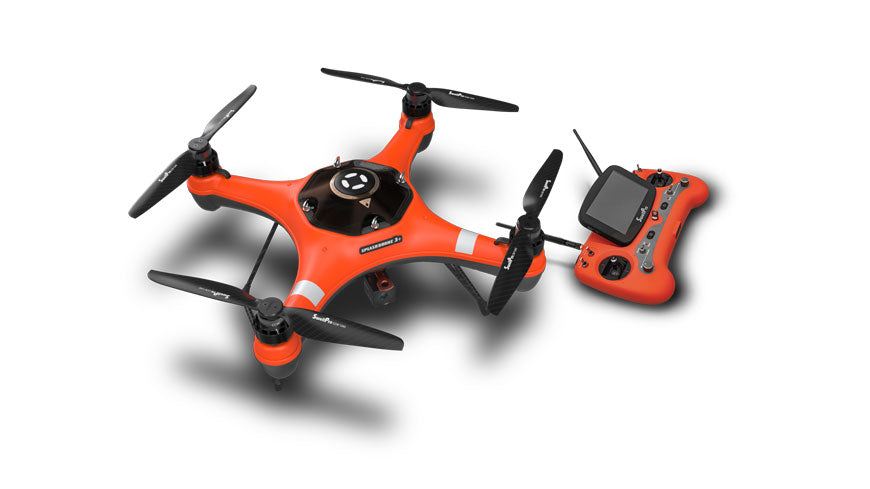

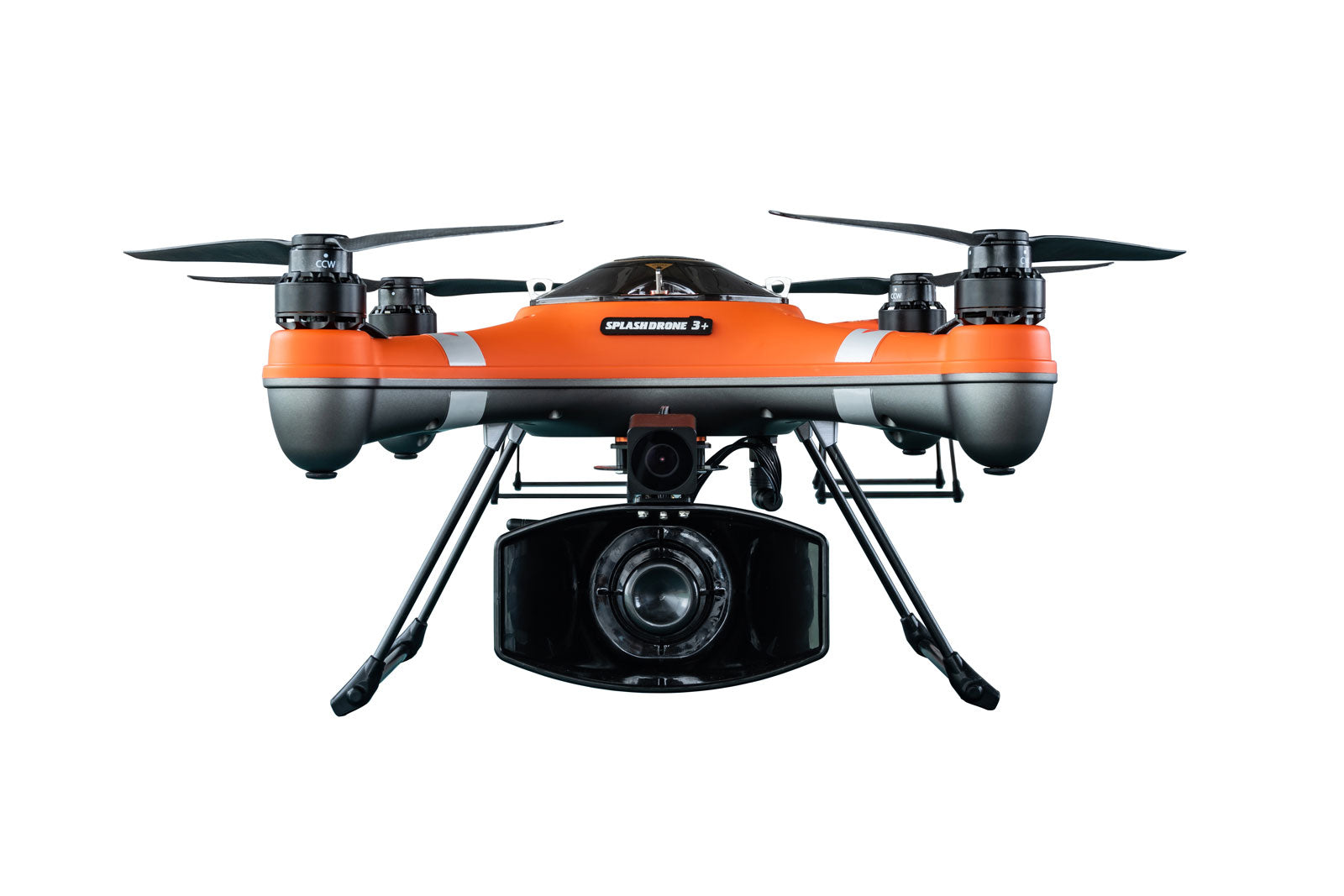

Designed for the SplashDrone SD3+, the HHQ combines a color camera with a 100 watt waterproof, remote loudhailer.

The all-weather, waterproof SplashDrone 3+ with HHQ megaphone module is a simple, cost-effective tool to observe a scene in real-time and provide clear, loud instructions to people on the ground. At an altitude of 30 meters, the HHQ can broadcast live or prerecorded messages, tones, or music clearly for law enforcement or publicity tasks.

Main features:

• Real time voice or recordings
• Wireless transmission range 2km
• FPV real-time monitoring camera
• 100W high quality amplifier
• Effective audio range 40m

Wireless transmission, remote loudhailer

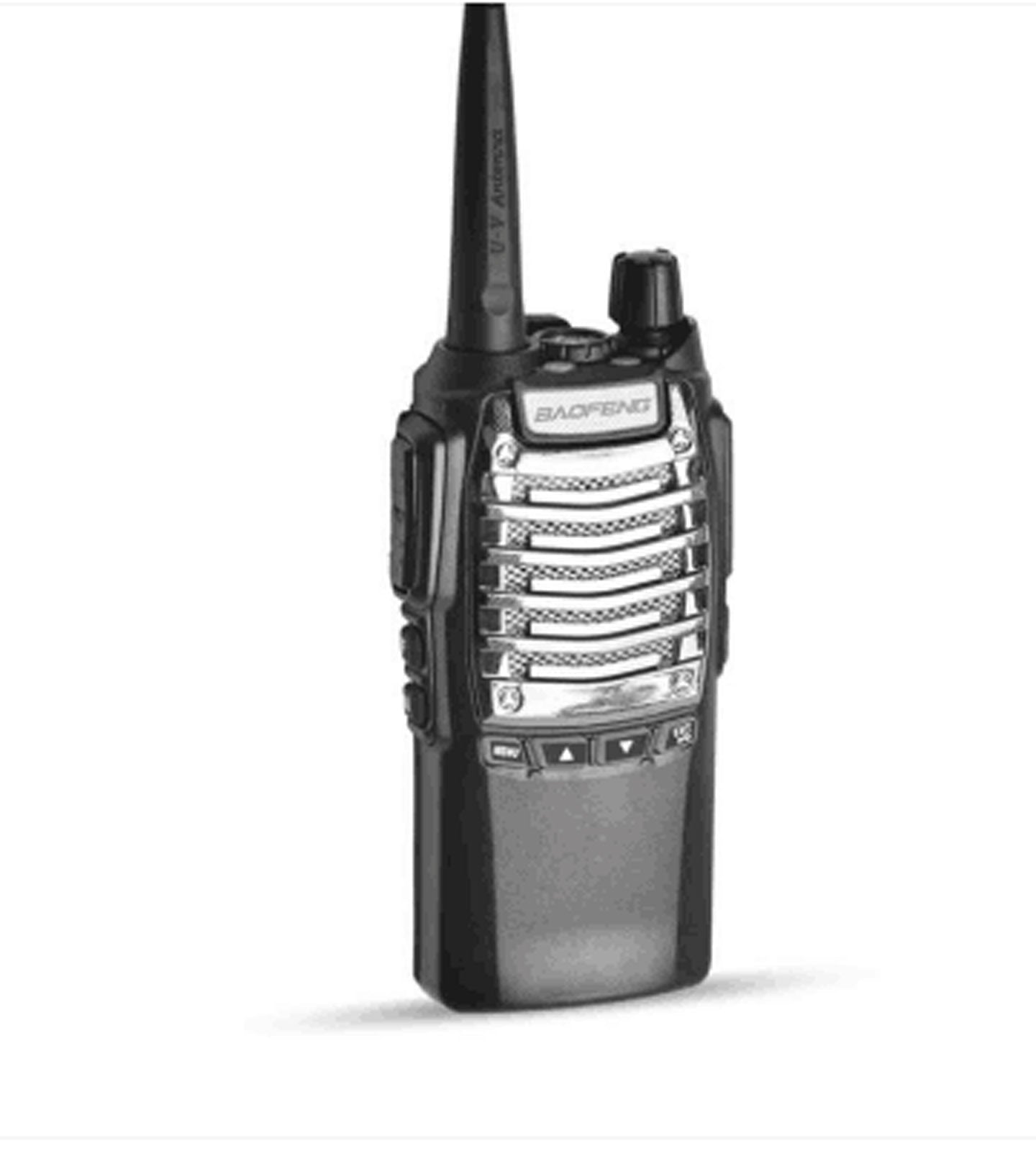

The HHQ megaphone and its paired UHF base station clearly transmit audio up to 2km. The loudhailer can be heard in most scenarios up to 40m away, effectively enhancing the safety and effectiveness of operations with direct, clear instructions from the command centre.

Real-time or recorded broadcast
The included HHQ base station allows the broadcast of live voice or recorded messages and music through a normal headphone jack.

Noisy Environments - Clear Sound
Even in noisy environments, the HHQ high-quality amplifier and loudhailer projects sound clearly to ensure your message cuts through.

FPV Camera, Real-Time Monitoring
The inbuilt FPV camera transmits real-time imagery back to the remote controller screen or goggles ensuring that the pilot can correctly position the drone for effective audio.

A Solution for Many Industries
Whether the situation calls for marketing, crowd control, danger warning, public broadcasting, emergency scene management or something else, the HHQ will get your message through.

Traffic Congestion Management Often the congestion caused by a traffic incident prevents traffic police from getting to the scene. The SplashDrone SD3+ equipped with the HHQ loudhailer can overfly traffic and reach a scene quickly to provide situational awareness and instruction to people at the scene of the problem – even in rain.

Rescue Support Often in rescue situations, helping the victims understand what the rescuers are doing is crucial to a successful operation. With the HHQ, victims can be safely kept informed and reassured while the operation progresses.

Crowd and Riot Control The SwellPro HHQ allows you to position the loudhailer above a crowd, ensuring your message can be delivered without endangering responders.

Specification

LoudHailer:
Speaker power: 100W
Power supply: 12V
Transmission distance: 2km
Size: 177x160x150mm
Weight: 650g

Camera:
Image sensor: pc7070
Resolution: 656x492
FOV：110°
Radio:
Frequency range: UHF 400-480mhz
Working voltage: dc7.4v (rechargeable lithium battery)
Antenna impedance: 50 Ω
Channels: 128
Size: 115.5 * 56.8 * 34.5mm
Frequency stability: ± 2.5ppm
Working modes: Simplex or Duplex channel pairs
Working temperature: - 20 ℃ ~ + 50 ℃
Grounding mode: negative pole

Manual Download

https://cdn.shopify.com/s/files/1/2536/9450/files/HHQ_User_Manual_V1.1_EN.pdf?v=1599576700

Overview

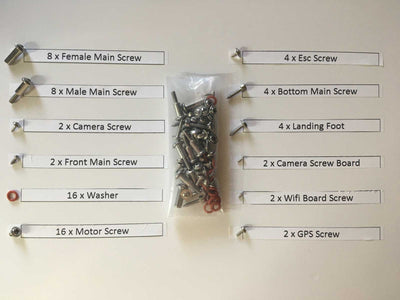

Screw set for Spry+ Drone

Overview

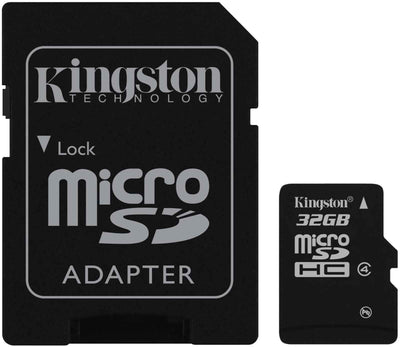

Kingston micro sd uhs-i flash card with adapter. Choose from 16GG 32GB or 64GB storage.

Overview

A handy t-shirt to help you deal with the public whilst out flying!

Size Guide

Size:	S	M	L	XL	XXL	3XL	4XL	5XL
Chest (to fit):	35/37	38/40	41/43	44/46	47/49	50/52	53/55	56/58

Material

Material: 100% cotton.*



• Cotton/Lycra® ribbed collar.
• Taped neck.
• Tubular body (4XL and 5XL have side seams).
• Twin needle stitching.
• Cut out label.



Weight: White 160 gsm, Cols 165 gsm

Overview

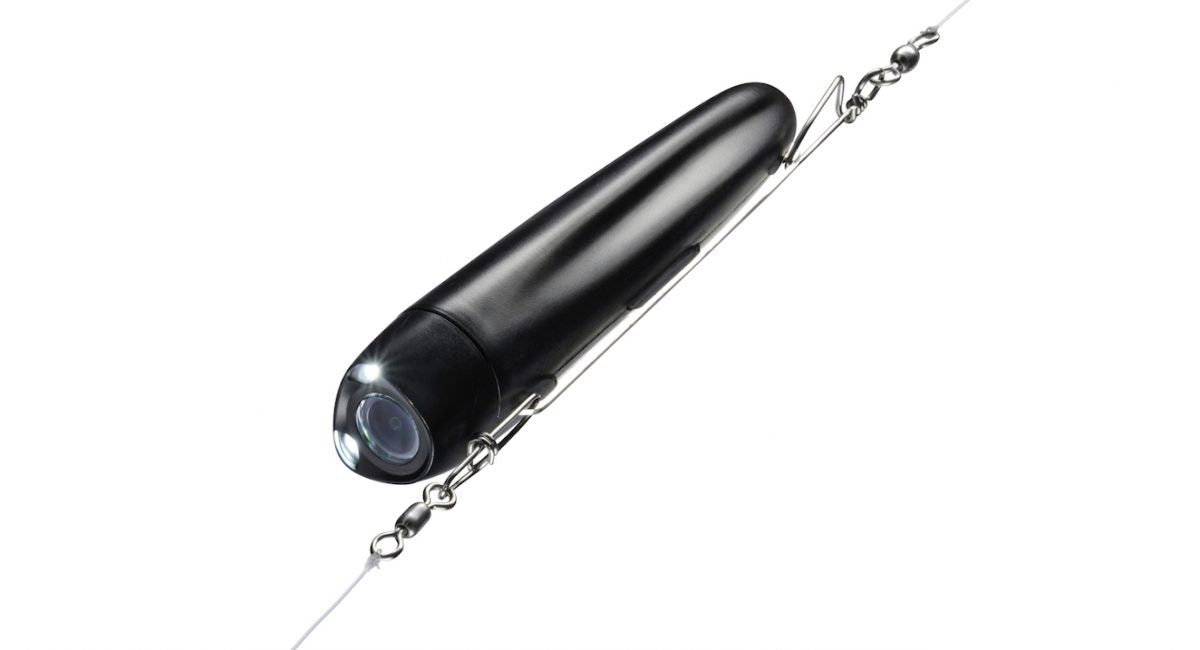

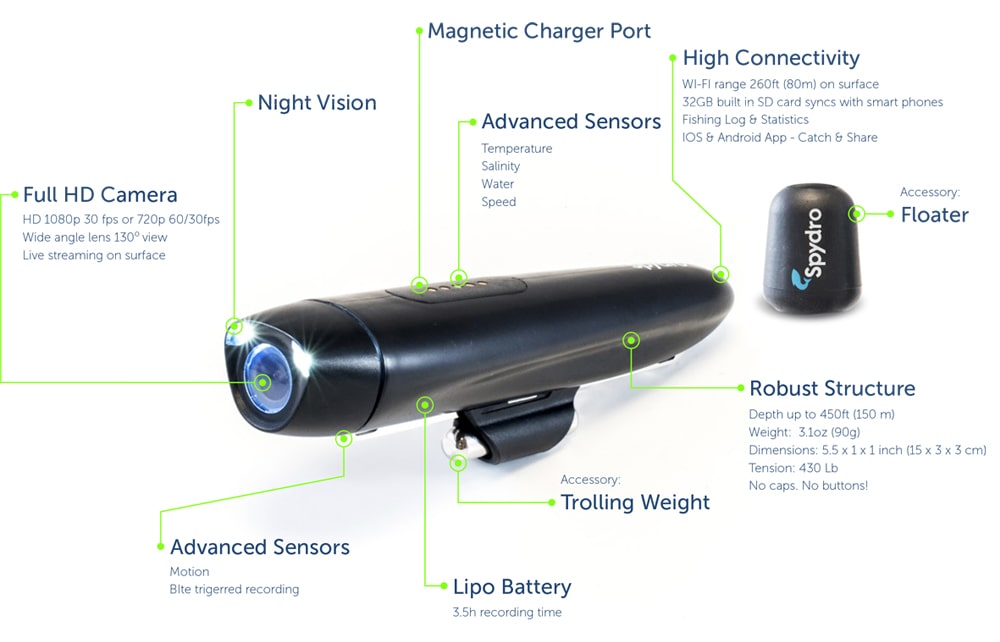

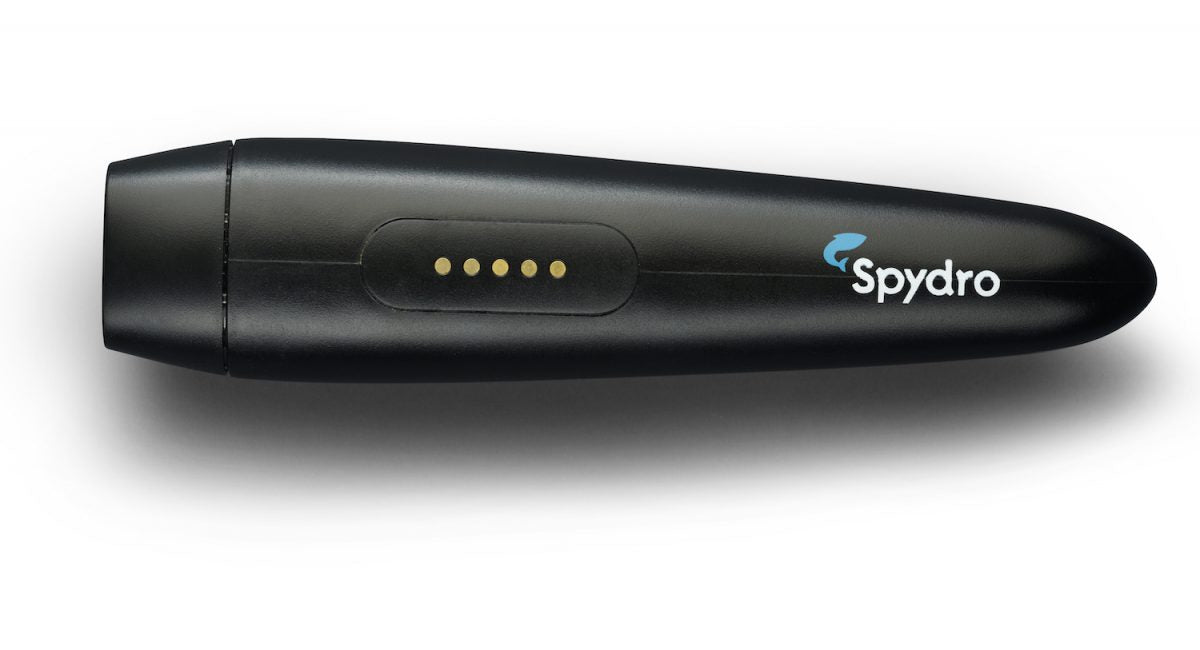

Spydro Underwater Smart Fishing Camera

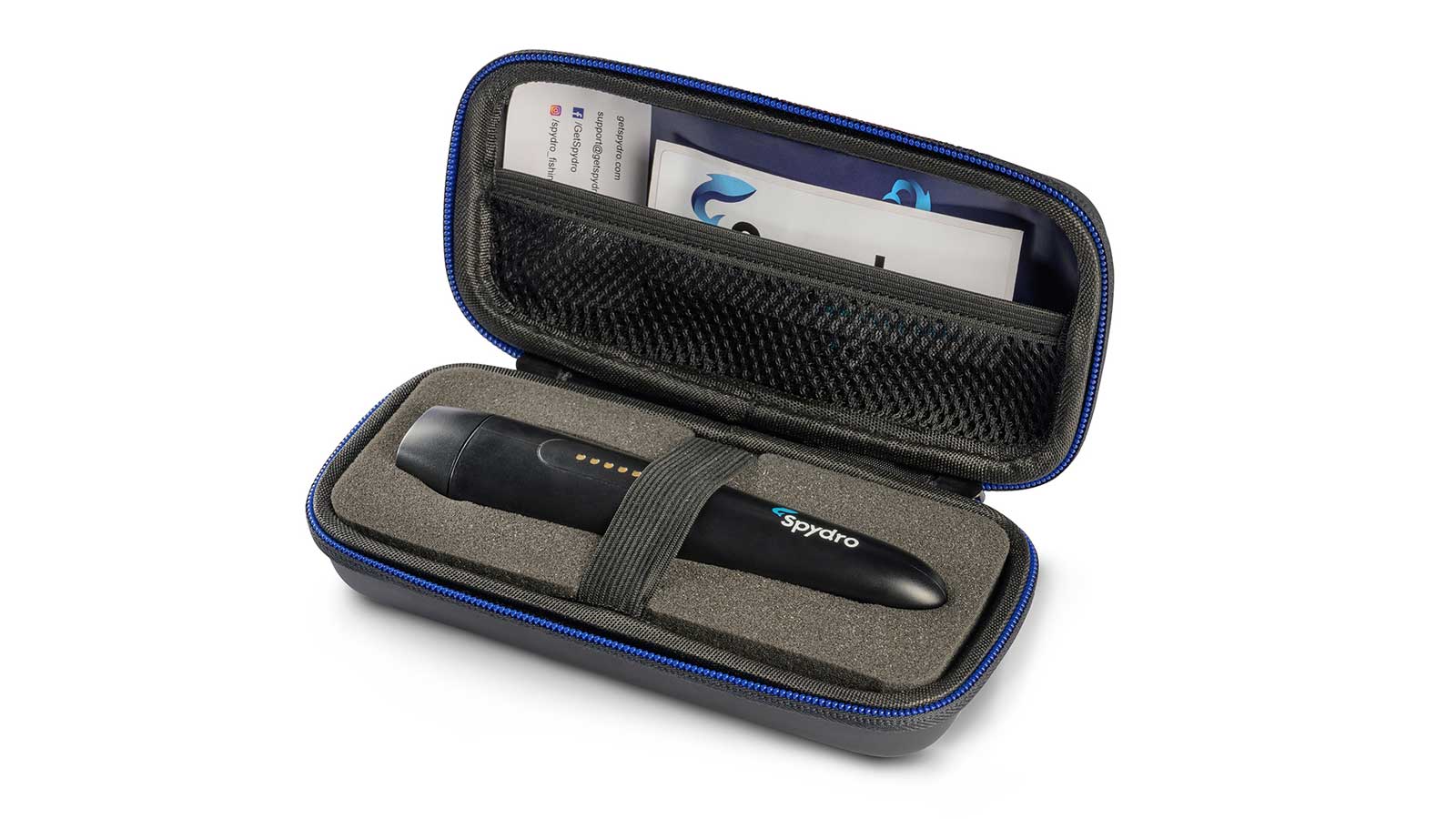

Spydro Contents

• Spydro® 32GB
• Magnetic Charging Cable
• Rubber weight holder
• Weight bar
• Floater
• User Manual

Spydro is the first smart fishing camera that captures amazing HD footage from the tip of the line. Its perfect hydrodynamic behaviour, advanced power management capabilities and intuitive hands-free operation truly empowers the fishing experience by revealing what’s going on underwater. Synced with our mobile-app it automatically creates a fishing diary available to analyse and share onsite. Stop guessing and start seeing with Spydro.

Notable Features   Full HD with Ultra-wide Lens Marine-grade by Design Hands-free Operation Ambient, Water-conditions Sensors Auto-generated Fishing Diary Advanced Stabilised Body Night Vision Bait & Squid Calling Light Magnetic Charger



Spydro Underwater Smart Fishing Camera - Your Ultimate Fishing Companion

Discover the revolutionary Spydro Underwater Smart Fishing Camera, a game-changing device designed to redefine your fishing experience. Whether you're a seasoned angler or a novice, Spydro will add a new dimension to your fishing adventures. Dive into the features and benefits of this unique fishing camera below.

Superior Design for Ultimate Performance

Marine-Grade Durability

Engineered for optimum performance in marine environments, Spydro's robust structure is designed to withstand the harsh conditions of the underwater world. Its marine-grade design ensures durability and longevity, even in depths of up to 450ft (~150m).

Hydrodynamic Stability

Spydro's unique shape ensures optimal hydrodynamic behaviour, allowing it to "float" gently without affecting the rig setup and feel. It's perfectly balanced, ensuring stability and ease of use in various fishing techniques, from trolling and jigging to bottom fishing and more.

Versatility in Fishing Styles

Spydro's keel can support up to 430 lbs of weight (~200Kg), making it suitable for various angling styles and techniques, including:

• Low/High-speed Trolling
• Casting and Jigging
• Bottom Fishing
• Ice Fishing
• Spearfishing
• Diving

Additionally, Spydro's design allows for the attachment of balancing weights to control the shooting angle and drag in relation to the lure, enhancing its versatility.

Secure and Easy Connectivity

A strong magnetic connector ensures safe charging and easy USB connectivity with any PC. Spydro's gold-coated pins are specifically designed to withstand harsh saltwater conditions, providing reliable and corrosion-resistant connections.

Fishing Catch Camera

Effortless Usability

Spydro's user-friendly design ensures an effortless experience. With its built-in SD card, there are no buttons or caps to fumble with. Mounting Spydro on the line is a breeze, and its core features are automated, allowing for hands-free operation.

Intelligent Sensing Capabilities

Spydro is equipped with a range of sensors to enhance your fishing experience:

Water Sensor: Spydro turns on automatically upon contact with water and shuts off 3 minutes after leaving the water. This feature can be manually adjusted to remain on in dry conditions.

Strike Detection: An accelerometer with a unique algorithm accurately distinguishes between regular water movement and real fish strikes.

Environmental Sensors: Spydro constantly records water temperature, salinity, and turbidity, logging this data with each recorded video.

Ambient Light Sensor: Spydro automatically adjusts its two front LEDs based on ambient light conditions, ensuring optimal visibility. It can also serve as a flashlight while preparing your rig.

Advanced Power Management for Extended Use

Spydro is powered by an advanced, ultra-light LiPo battery that offers 3.5 hours of continuous recording. Its WiFi automatically shuts off upon submersion, maximising battery efficiency and extending recording duration. Additionally, Spydro features two CPUs that can be customised for higher battery efficiency and tailored recording options to suit your specific fishing needs.

Feature-Rich Fishing Camera

Spydro's innovative design includes a wealth of features to enhance your fishing experience:

• Signalling Light: Indicates various device states, such as current recording or low battery.
• Squid Light: Generates a unique lighting sequence to attract squid attention.
• Firmware Updates: Spydro's firmware can be upgraded, ensuring users benefit from the latest improvements and features.

More from SwellPro

In addition to the remarkable Spydro Underwater Smart Fishing Camera, SwellPro offers a wide range of top-notch products and services tailored to meet the needs of diverse users. Our Splashdrone 3+ is a versatile waterproof drone perfect for capturing stunning aerial footage, while our Search and Rescue Drones are specially designed for lifesaving missions, helping locate and assist those in need. For those interested in falconry, our Falconry Drones offer a modern twist on traditional training methods, providing an innovative tool for training birds of prey.

For fishing enthusiasts, our Fisherman Drones extend your casting range and open up new possibilities for coastal fishing. We also offer a comprehensive selection of Drone Accessories to enhance and optimise your drone experience. And if your drone needs a tune-up or repair, our expert technicians at SwellPro are here to provide top-quality Drone Repairs, ensuring your drone is always in peak condition. Whatever your needs, SwellPro has the products and services to elevate your drone experience.

Order Online Today

The Spydro Underwater Smart Fishing Camera is an indispensable tool for every fishing enthusiast. Its marine-grade design, advanced sensors, efficient power management, and innovative features make it a must-have for anglers of all levels. Enhance your fishing experience and capture every exciting moment with Spydro – your ultimate fishing companion.



Specification

Supported HD modes: 1080p@30FPS | 720p@60FPS | 720p@30FPS Battery life: ~3.5 hrs of recording Dimensions: 6′ X 1′ X 1′ (15 cm X 3 cm X 3 cm) Weight: 3.1 oz. (90 gr) Built-in SD Card: 32GB WiFi range: up to 260 ft. (80m)

Compare

Video

Video Support

CONNECTING SPYDRO TO YOUR PC OR BOAT TERMINAL

Manual

View or download a product manual here

FAQ

1. What if there is no connection/internet/satellite service at sea, how can I connect to Spydro?
Spydro is a Wi-Fi hot spot. Simply put, Spydro creates a Wi-Fi connection that you connect to with a mobile device.
Through this connection Spydro sends you videos, notifications and live stream footage. There is no need for any service or satellite connection.

2. Do I need to edit my catch videos before sharing them?
No, there is no need to edit long underwater footage anymore!
Spydro is a smart fishing camera that, through its many smart sensors, detects fishing bites that might occur and begins recording (along with the addition of the 10 seconds previous to the bite). These videos are then transmitted to your phone for instant viewing and sharing.

Though, if you wish, Spydro has a mode allowing it constantly record. It’s a simple tap of the button on your phone to change between the many modes.

3. Does Spydro Livestream from underwater?
Unfortunately, no. Wi-Fi doesn’t work underwater. Instead, Spydro transmits the short action videos it captures to your mobile device as soon as it resurfaces.
So as you reel in, or change lures/bait you can learn from the videos Spydro just captured.

Though, Spydro can transmit live video to your mobile device if you use Spydro as a float/bobber. This allows you to get a live, bird’s eyed view of your fishing environment.

4. What happens if the line breaks?
To avoid this, use a heavier fishing line to connect Spydro’s tail to your rod, and a thinner leader from Spydro’s front to your lure/bait. This will ensure higher chances of the leader breaking instead of your main line, and thus keeping Spydro attached.

Also Spydro, if not accessorized with heavy weights, floats to the surface. So in the case of both lines snapping, it’s a matter of picking Spydro up from the water.

5. How many hours of recording can be saved on Spydro?
The unit comes with 32GB memory card that can store up to 8 hours of high resolution video

6. How do I turn Spydro on/off without any buttons?
Spydro turns on with the detection of water on its top sensor, it turns off when it’s out of the water so you never forgets to turn it on nor off.
In addition you can always turn off Spydro with a tap of a button on the Spydro mobile app.

7. What is the battery life on Spydro?
Spydro’s battery last 3.5 hours on a single charge

8. How deep can Spydro go?
Spydro’s maximum tested depth is 450 Feet

9. How far from my Lure should I place Spydro on my fishing line?
Normally Spydro is placed 2-5 feet from your Lure, on your line.

Overview

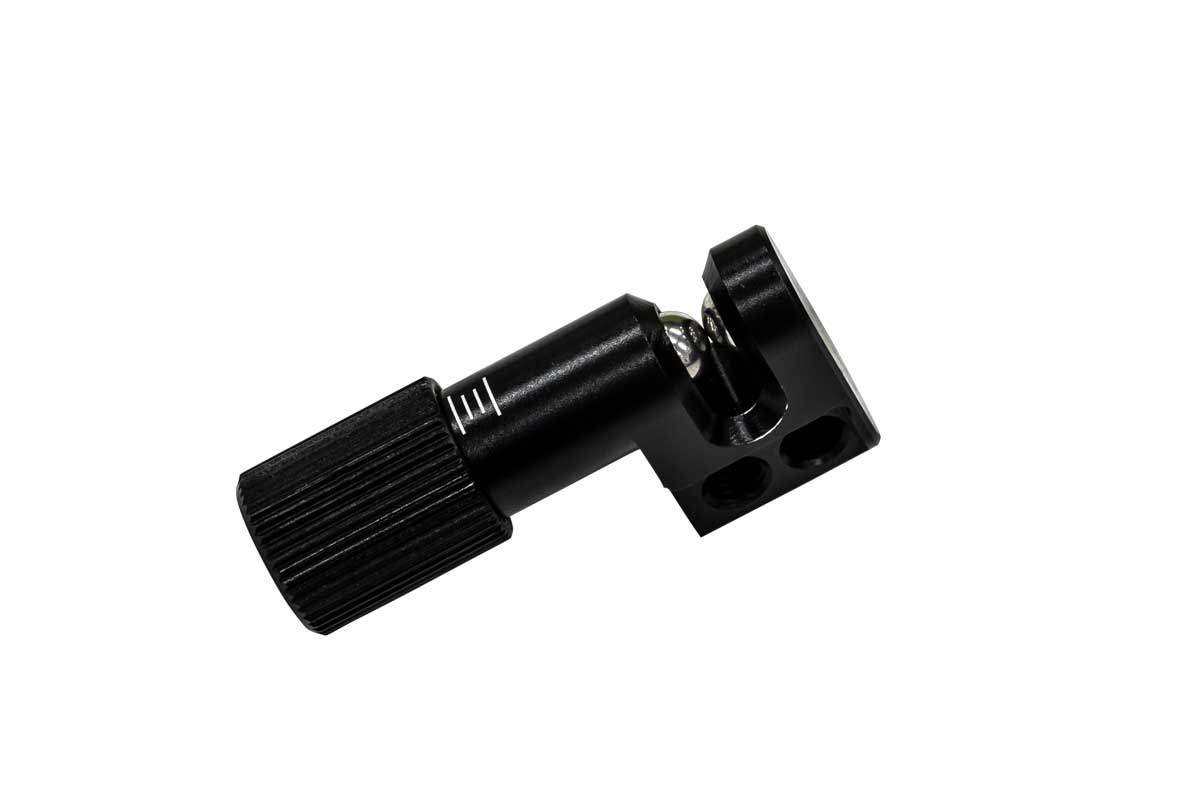

Spry Plus TrollSafe is an adjustable tension release device. The tension range of automatic release is 150 ~ 220g
(Spry / Spry Plus maximum safe hanging weight is 100g)
This can be adjusted freely. It is easy to install, used in combination with Spry Plus and is specially used for fishing in offshore, rivers, lakes and other environments.



With the high resolution image system of the Spry Plus, you can watch the fishing process in real time and take amazing photos or record videos at the same time. Taking you to a new fishing experience.



Lure fishing
By controlling the direction and speed of Spry Plus, the baits in the water can take on many kinds of forms, such as fleeing and struggling, and then attract the target fish to attack.

Hovering fishing
Hover in the air and wait for the fish to seize. When the fish reaches a certain pulling force after seizing the bait, the TrollSafe will automatically release the fishing line, and Spry Plus can return safely.

Long range baiting
It can be quickly baited to the target position in a long-distance, and the fast baiting can be realised by pulling the fishing line forcibly, at the same time, the baiting area can be greatly expanded.

Spec Sheet

Size: 27.5 * 17.0 * 10.0 mm; Weight: 8.5g Fish line specification: recommended wire diameter 0.5-0.77mm, bigger line, bigger tention. Safe carry weight: less than or equal to 100g. Compatibility: Spry / Spry Plus

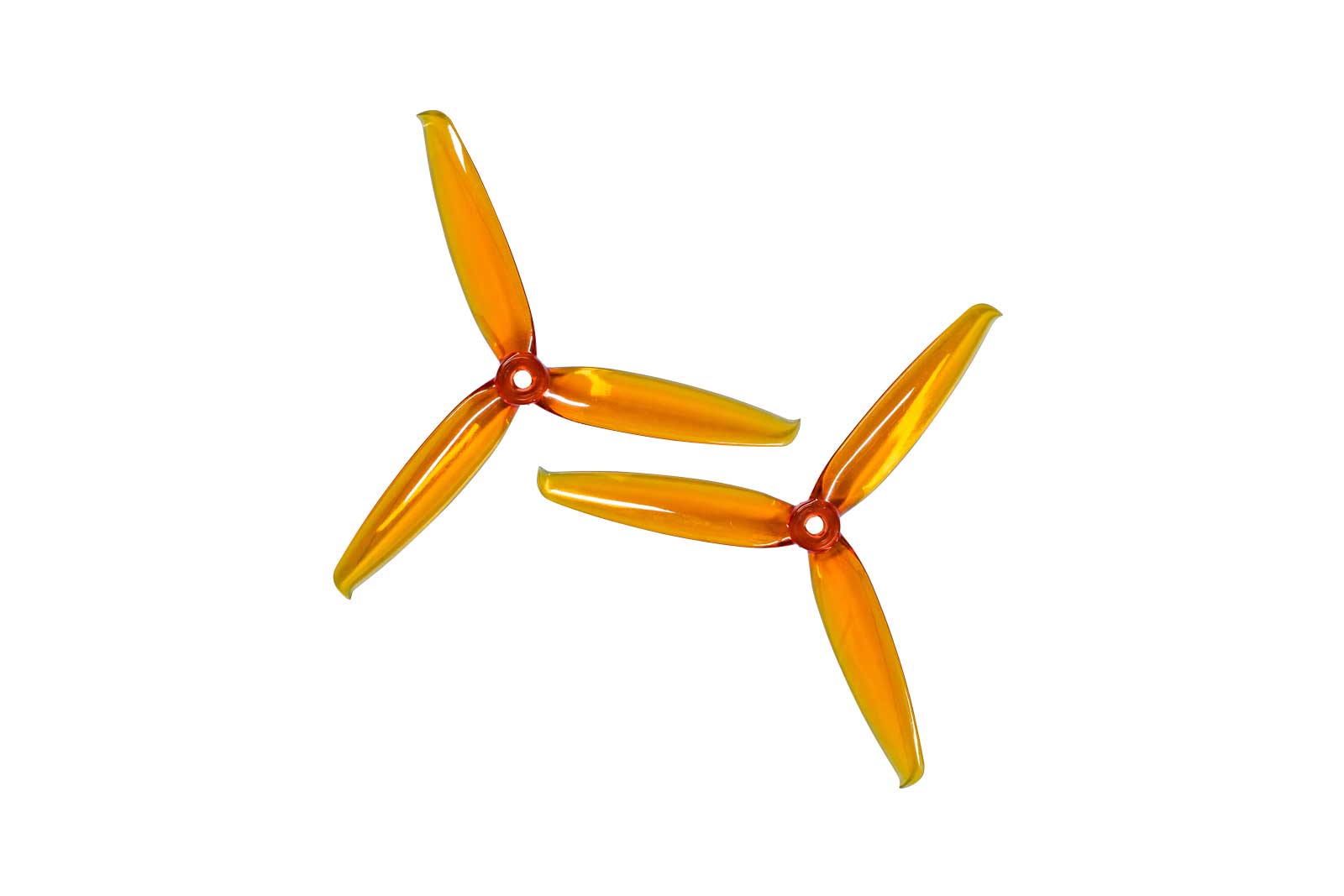

Overview

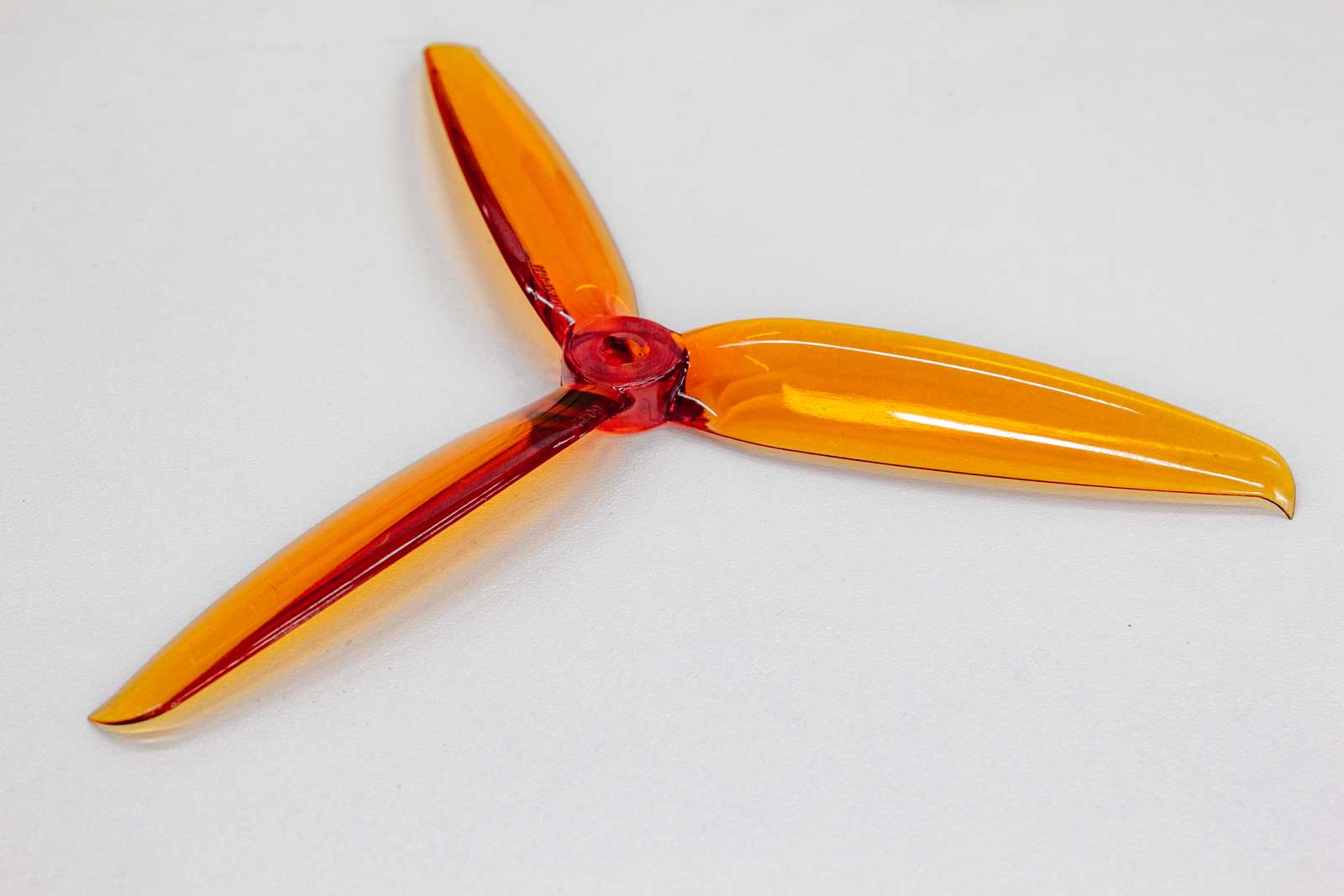

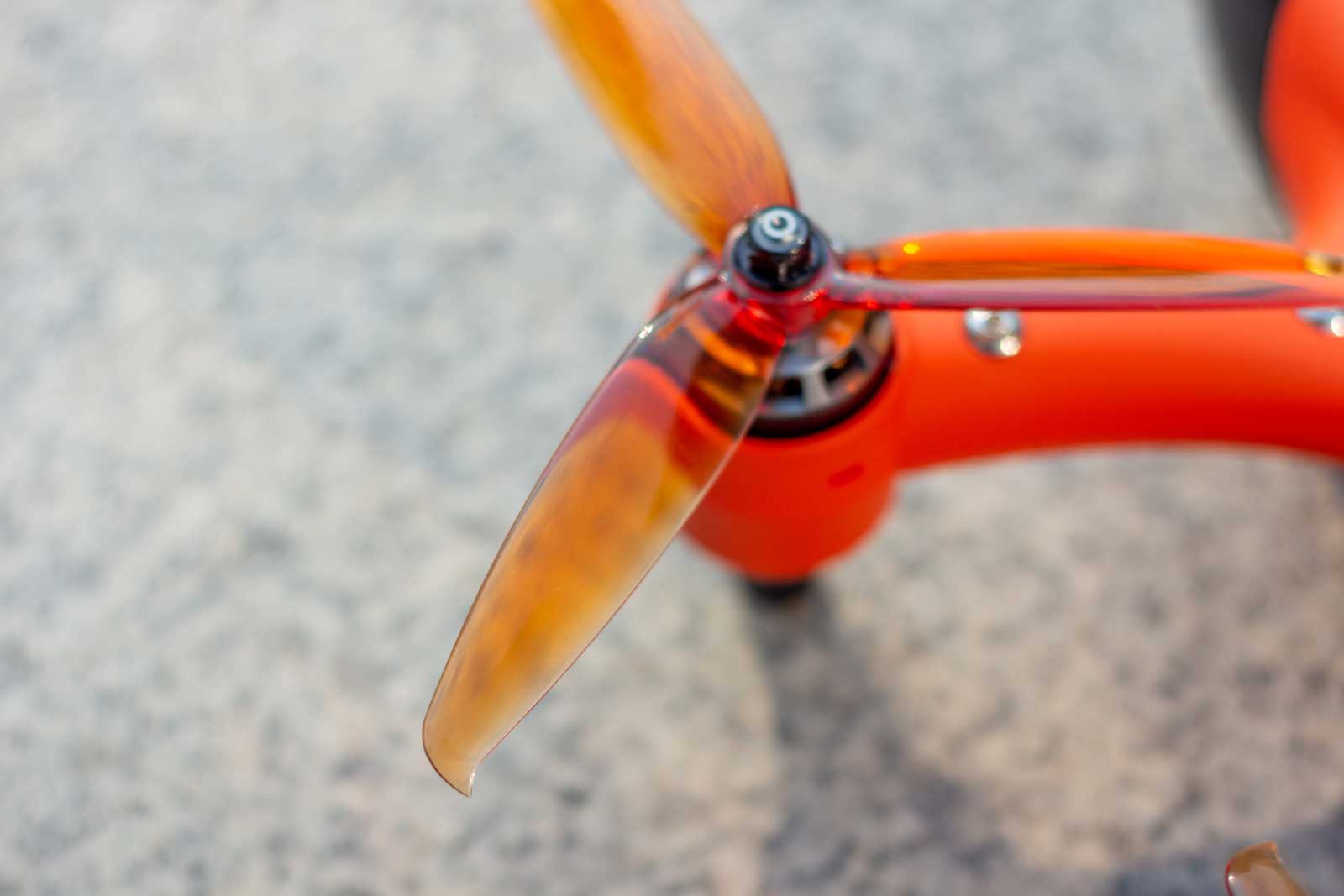

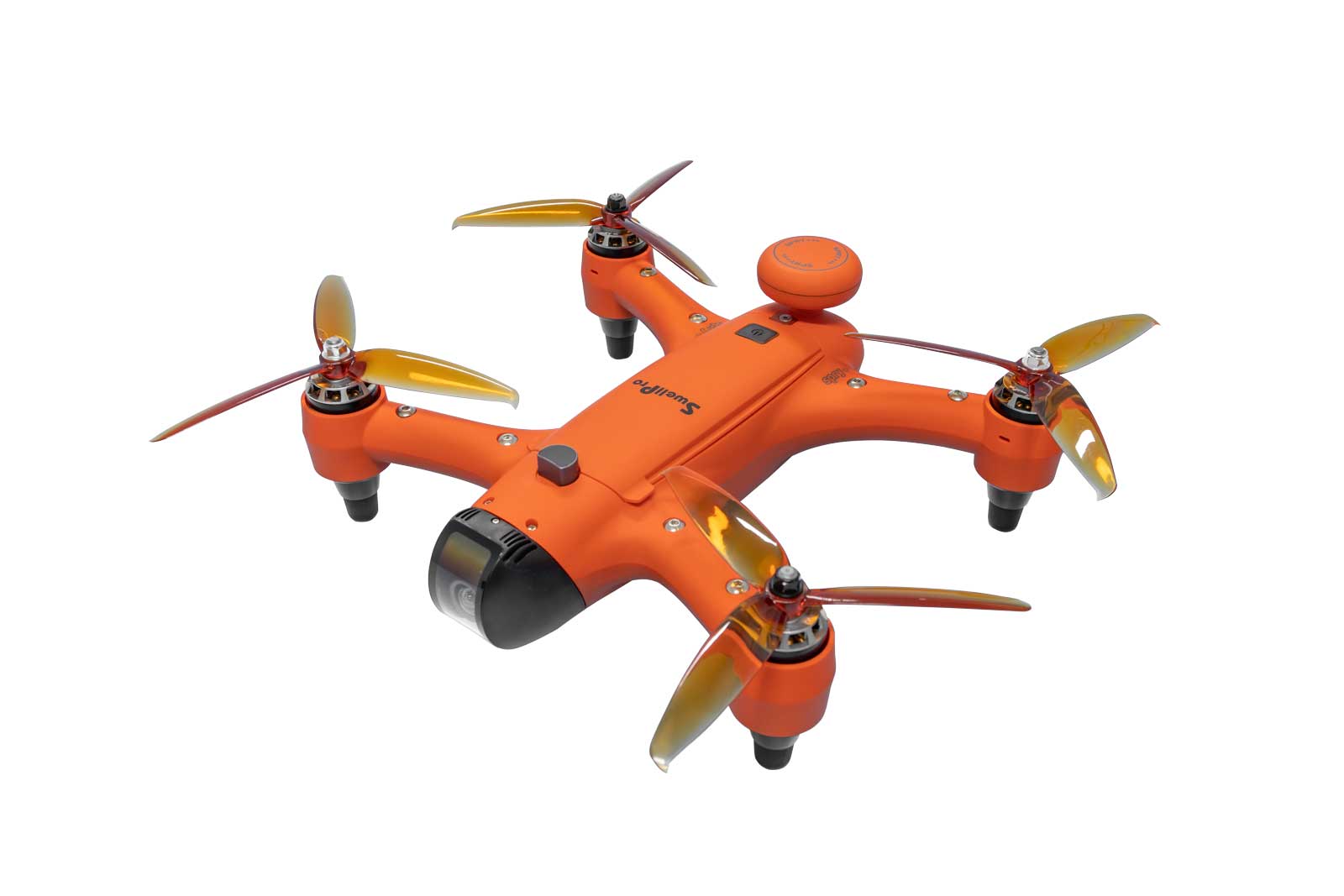

Specially designed three blade propellers for the Spry+. These props are compact, lightweight and durable. Add them to your Spry+ to effectively reduce noise while flying.

They're carefully balanced and strictly matched in production to make them easy to install and use. By applying precise processing technology and aerodynamic design, it provides powerful thrust for Spry+ and increases the flight stability.

The props come as a full set of four.

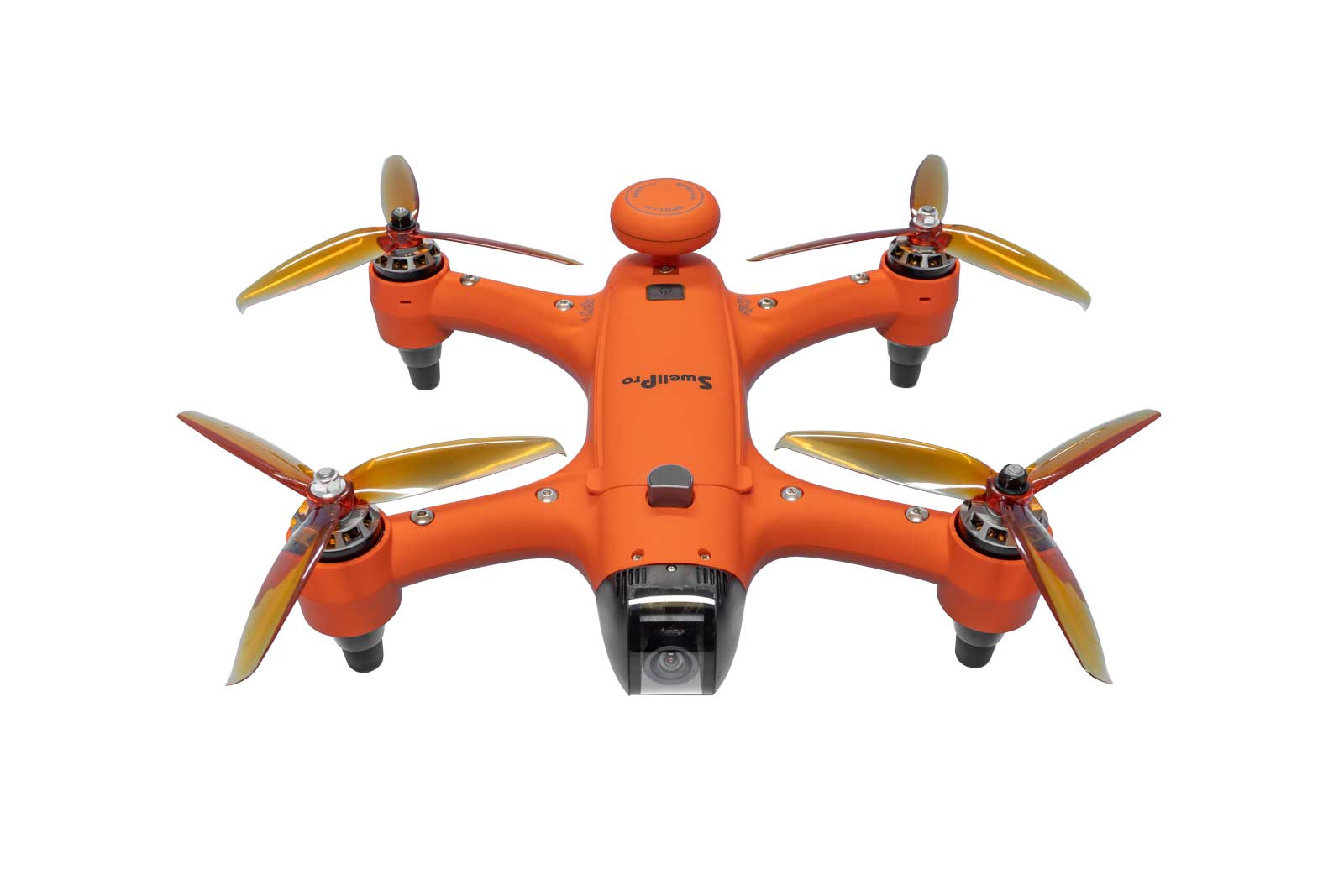

A Spry+ with three-blade propellers installed can be used for advanced filming, extreme racing, novice practice, and fancy flying, bringing you an extraordinary flying experience.

Spec Sheet

Diameter: 152mm Radius: 76mm Weight: 6.5g

Overview

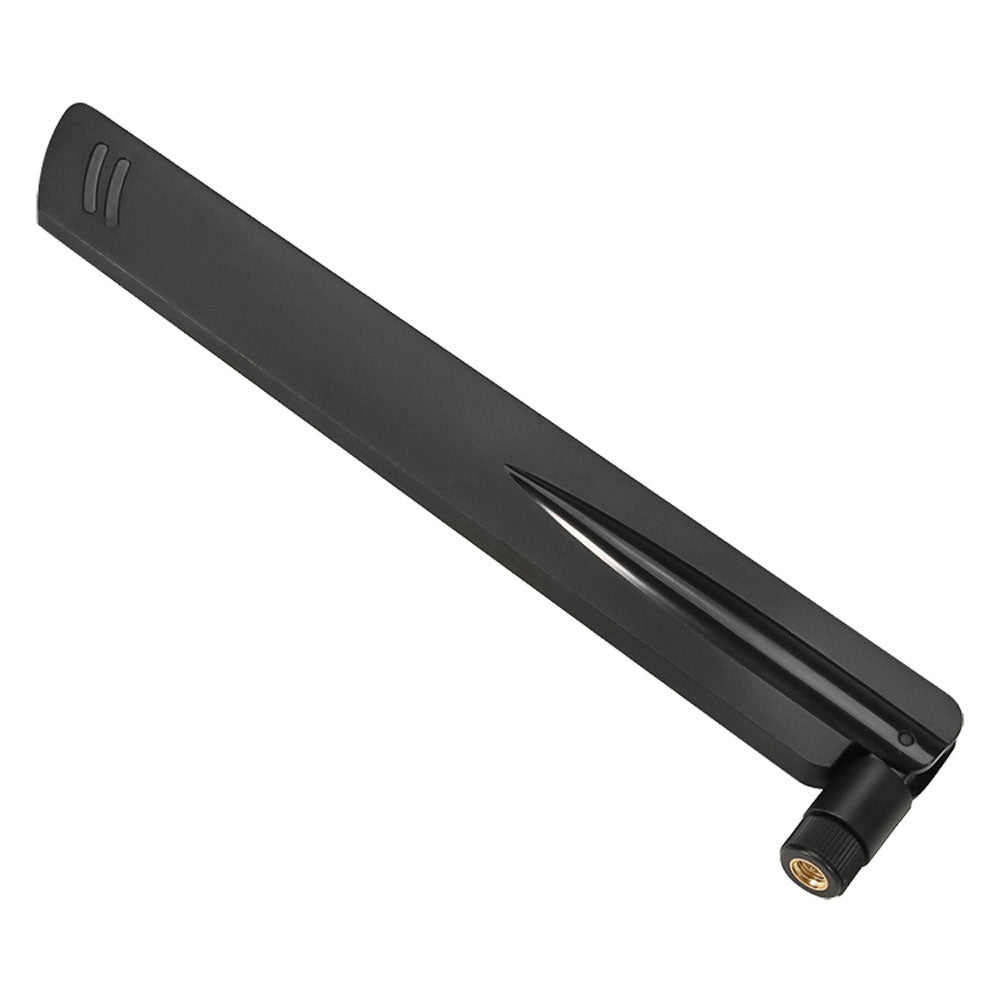

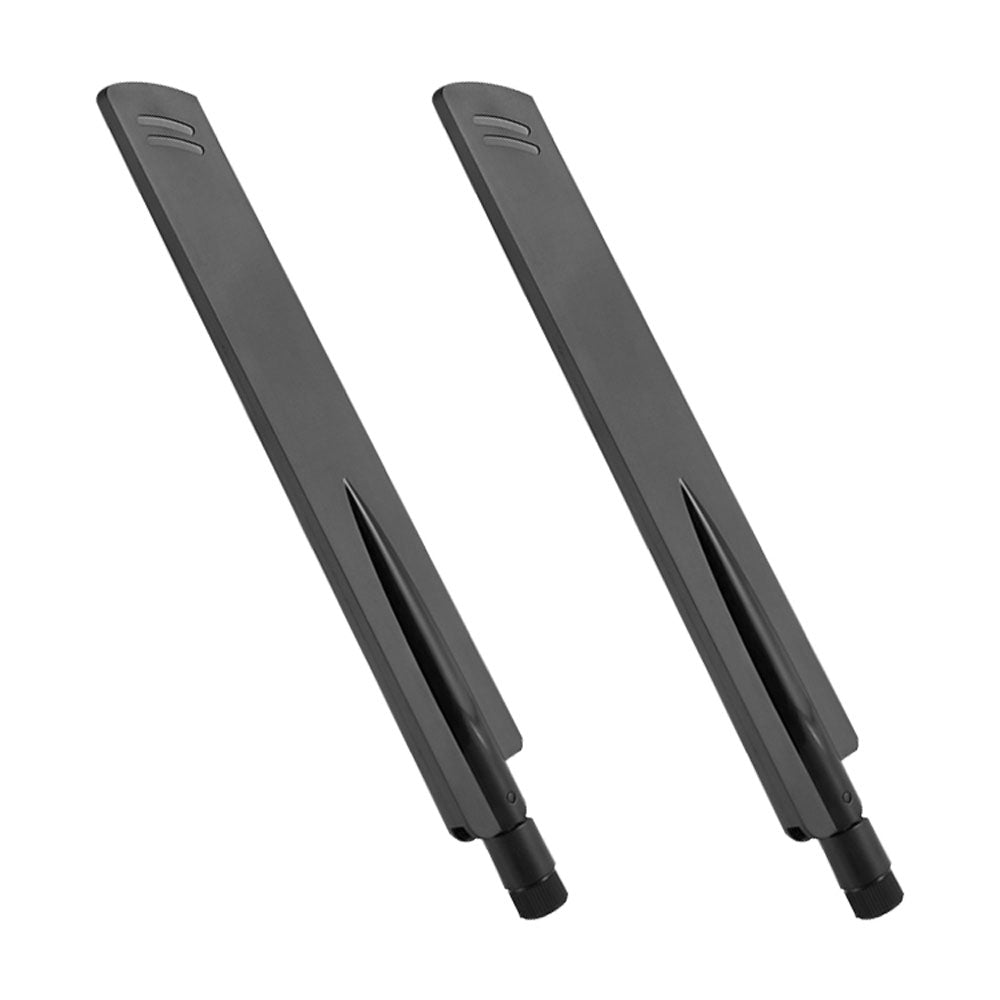

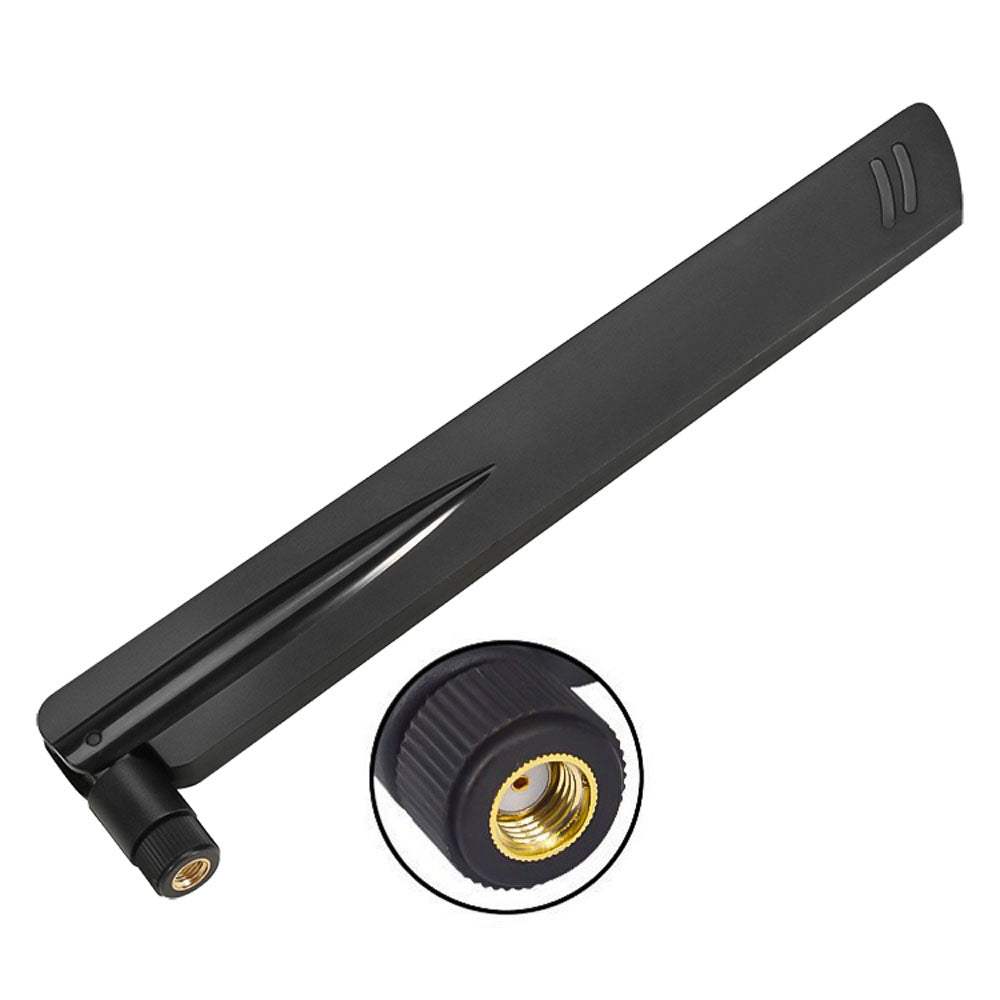

Replacement 7dbi Antenna 2.4/5.8Ghz to improve controller or video signal.

Overview

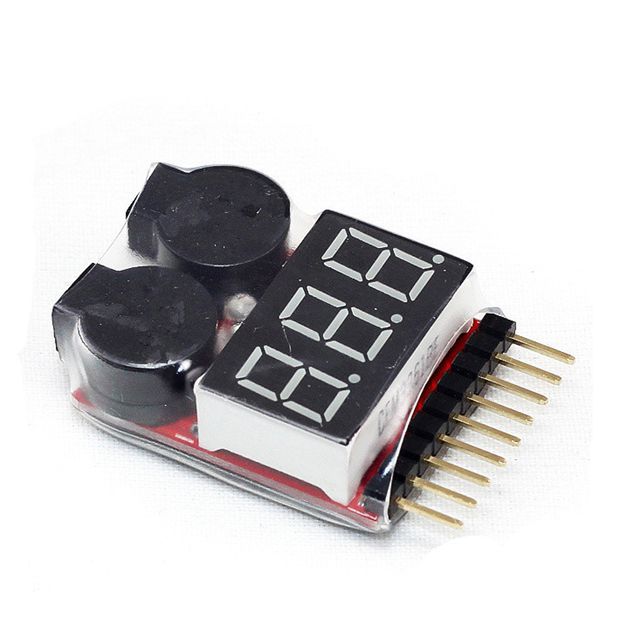

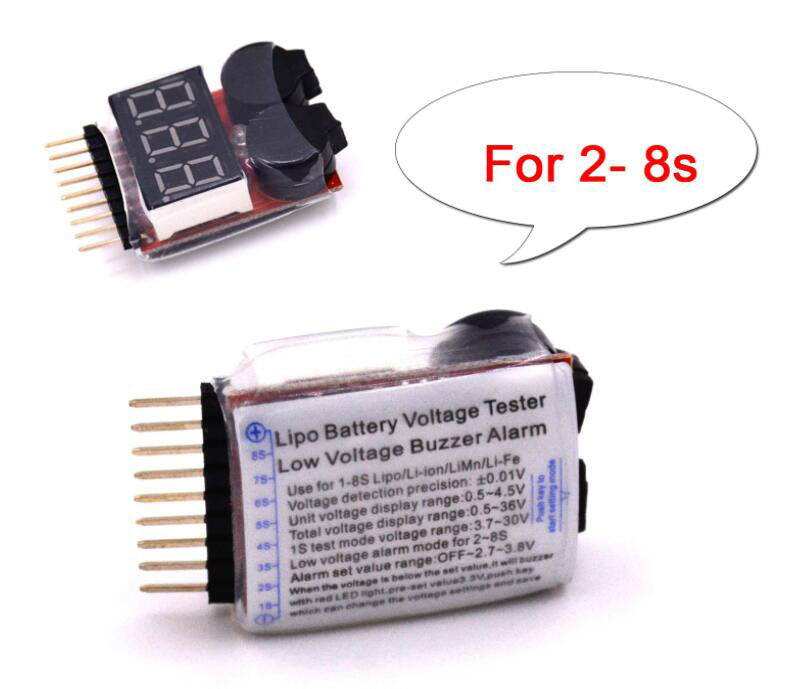

Check your lipo cells voltage. Voltage display function and low voltage alarm function. Protect the battery from overcharging or overdischarging.

Use for 1-8s Lipo/Li-ion/LiMn/Li-Fe. Test the working state of lithium battery. Automatic protects against reverse connection.

Specification: Voltage detection pricision: 0.01V Unit voltage display range: 0.5V-4.5V Total voltage display range: 0.5V-36V 1S test mode voltage range: 3.7v-30v Alarm set value range: OFF-2.7V-3.8V Low voltage alarm mode for 2-8S size: 4*2.5*1.1cm weight: 9g.

When the voltage is below the set value, it will sound the buzzer and display red LED light, pre-set value 3.3V.

Use the push key which can change the voltage settings and save.

Overview

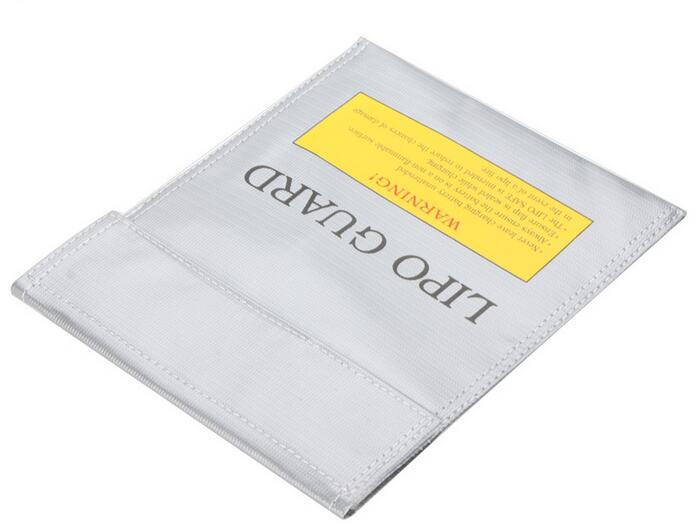

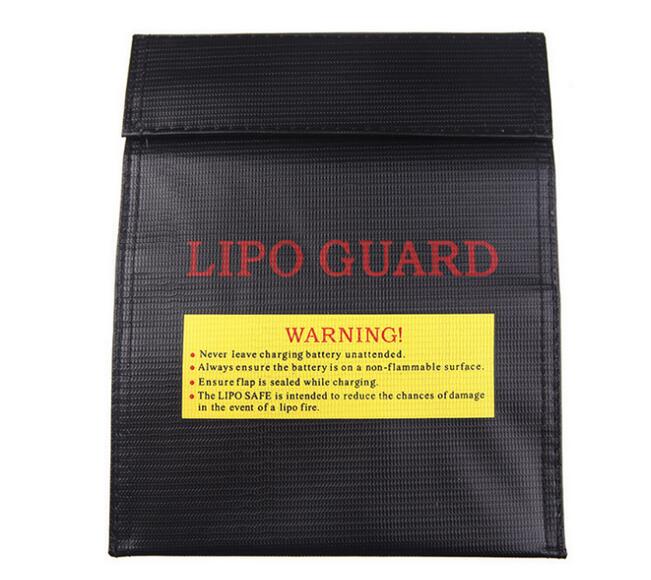

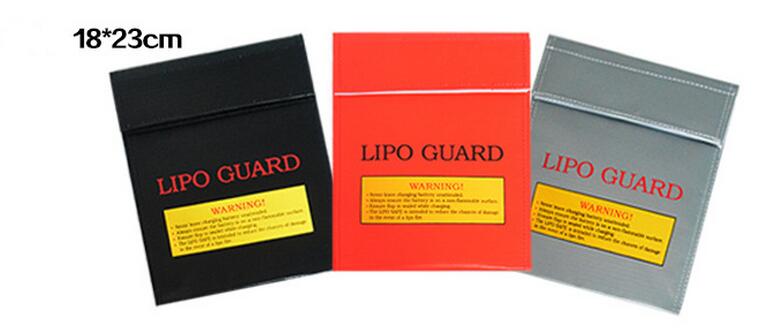

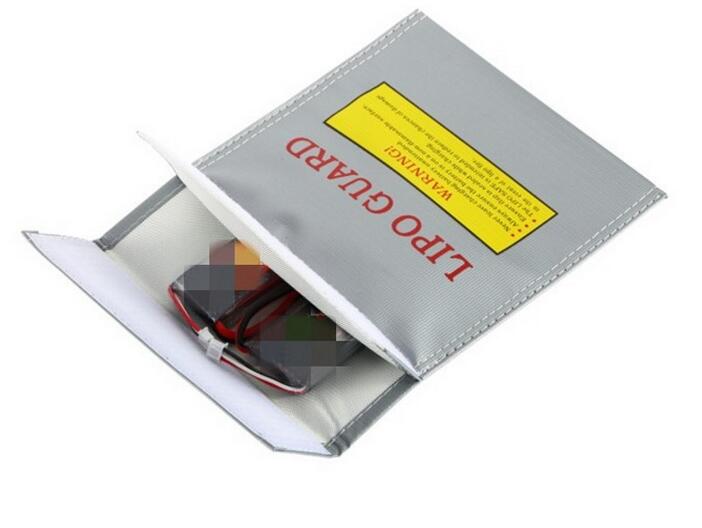

RC Lipo Lithium Polymer Battery Safety Guard Charge Bag.

The safest way to charge and store your lipos.

Protect your workshop, family and home from the hazards of lipo charging.

This is a fireproof bag, designed to stop and contain any fire caused by incorrectly charging poorly functioning lipo packs.

We always urge all of our customers to always practice extreme caution when charging lithium polymer packs. Never leave a charging lithium battery unattended. For safer charging and storage of batteries. Fireproof and Explosionproof.

Material : Metal + Plastic

Thickness : 0.6 cm / 0.24 Inch

Weight : 85g

Colors : Silver ; Black ; Red

Overview

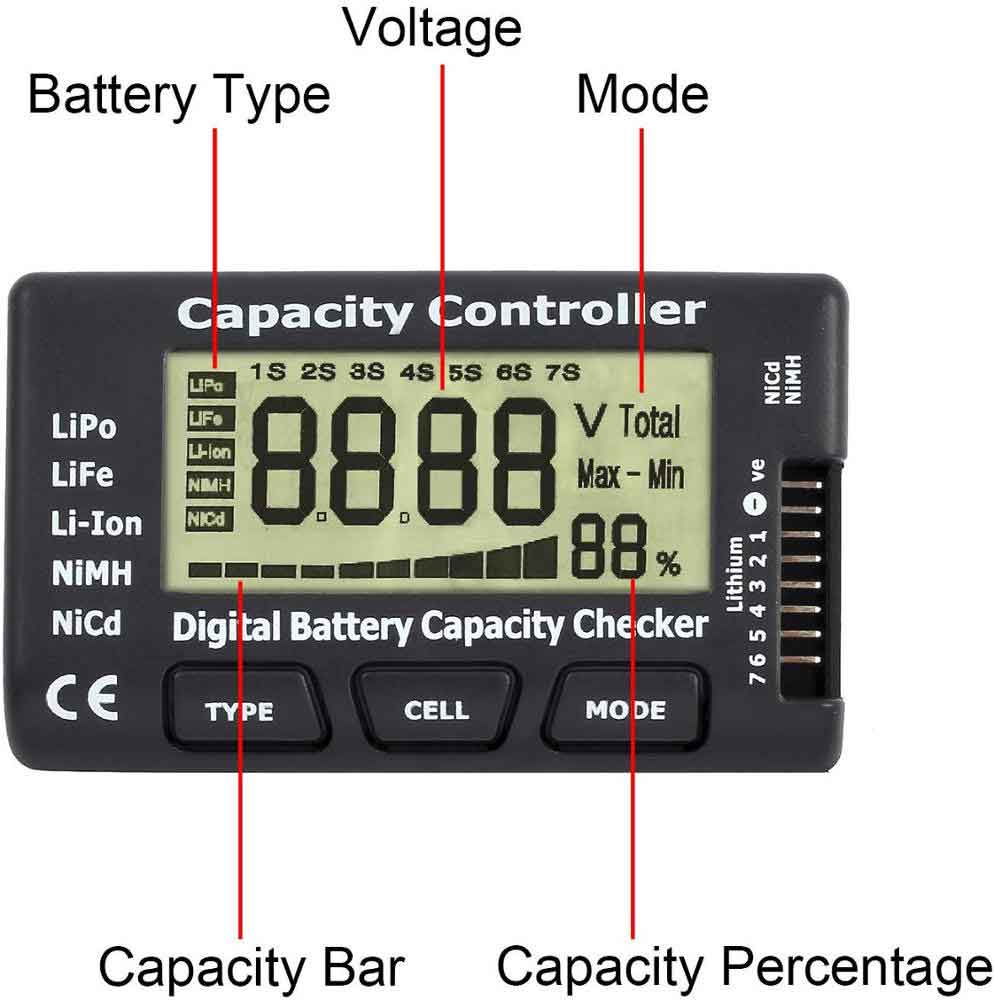

LCD Battery Capacity Voltage Checker High Quality, Safe and Durable. Can be used to individually check each cell of your battery.

Usage for: Lipo LiFe Li-ion NiMH NiCd Battery. CAMWAY Digital Battery Capacity Tester Works for Lipo/LiFe/Li-ion 2s-7s, and NiMH/NiCd 4s-7s.

Display Mode: Battery Cell Voltages, Total Voltages, Lowest Cell Voltage, Highest Cell Voltage Gap between Highest Cell Voltage and Lowest Cell Voltage, Remaining Battery Capacity(%)

Product Size: 8.5x5x1.7cm. Product Weight: 45g.

Explore the world of reliable battery management with SwellPro's Digital Battery Capacity Tester. Designed for efficiency and accuracy, this tester allows you to ensure the optimal performance of your batteries, enhancing the overall efficiency of your electronic devices.

Key Features

Accurate Capacity Measurement

SwellPro's Digital Battery Capacity Tester provides precise measurements, allowing you to assess your batteries' current capacity and health. With its digital technology, it ensures a high degree of accuracy and reliability.

Easy-to-Read Digital Display

Equipped with a clear digital display, our Battery Capacity Tester provides quick and easy-to-understand readings. This feature eliminates the guesswork and allows you to make informed decisions about your battery usage.

Wide Range of Compatibility

The SwellPro Digital Battery Capacity Tester is compatible with a wide range of battery types, making it a versatile tool for your electronic devices. From drones to remote controls and more, this tester is your go-to solution for managing your batteries.

Compact and Portable Design

Designed with portability in mind, SwellPro's Digital Battery Capacity Tester is compact and lightweight. Its small size makes it easy to carry around, ensuring you can test your batteries whenever and wherever needed.

Benefits

Prolong Battery Lifespan

By keeping track of your batteries' capacity and health, you can take appropriate action to prolong their lifespan. This leads to cost savings and reduces the frequency of battery replacements.

Optimise Device Performance

With accurate knowledge of your batteries' capacity, you can optimise the performance of your electronic devices. Avoid the inconvenience of sudden power loss and ensure the smooth operation of your gadgets.

How to Use

1. Connect your battery to the tester according to the instructions provided.
2. Switch on the tester and wait for the display to show the battery's current capacity.
3. Analyse the readings and take appropriate action based on the battery's capacity and health.

Order Today

SwellPro's Digital Battery Capacity Tester is an essential tool for anyone who relies on electronic devices. With its accurate measurements, easy-to-read display, and compatibility with a wide range of batteries, this tester is your trusted companion for maintaining optimal battery performance. Order your SwellPro Digital Battery Capacity Tester today and enjoy a seamless electronic experience, backed by accurate and reliable battery capacity readings.

Overview

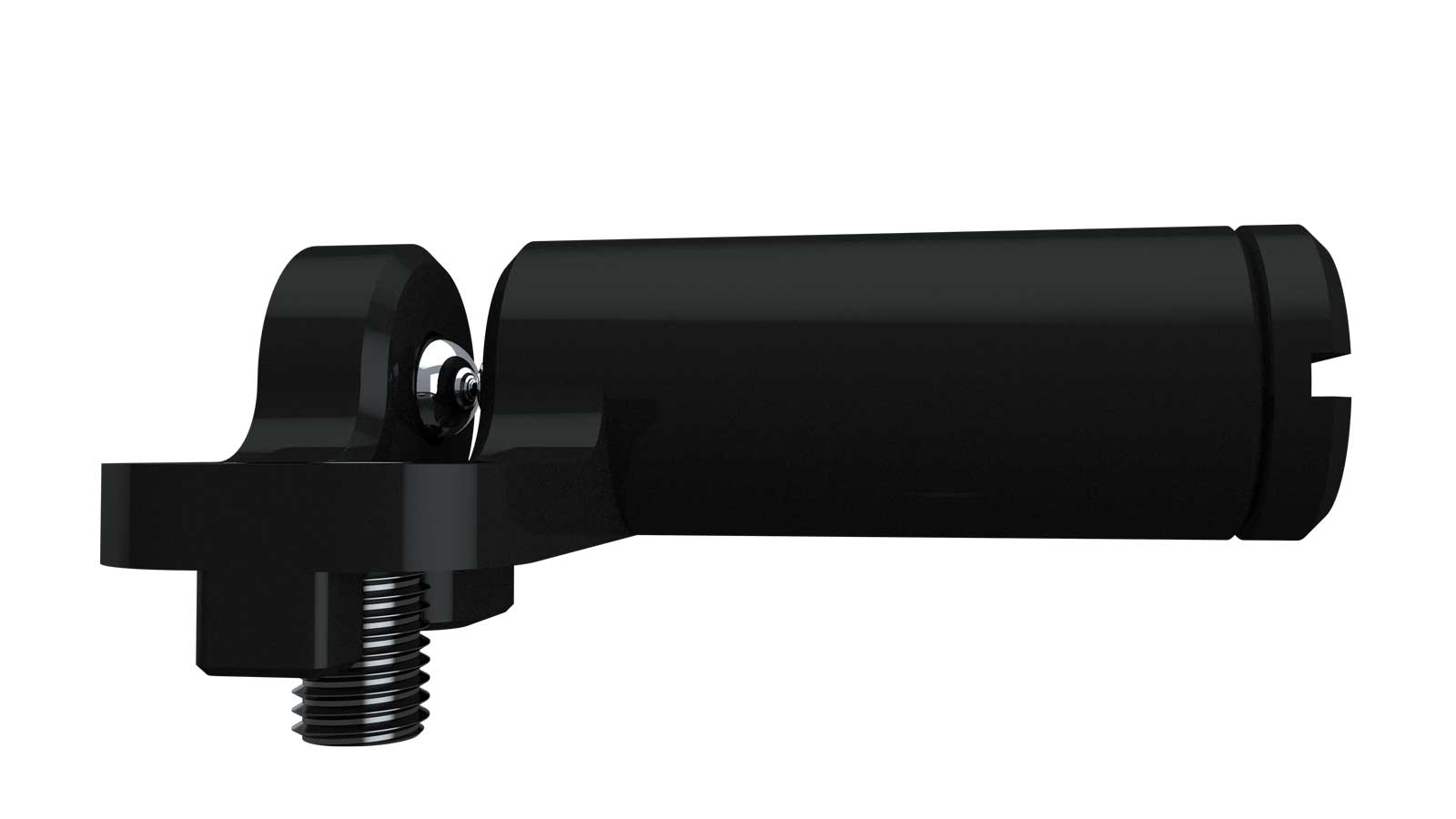

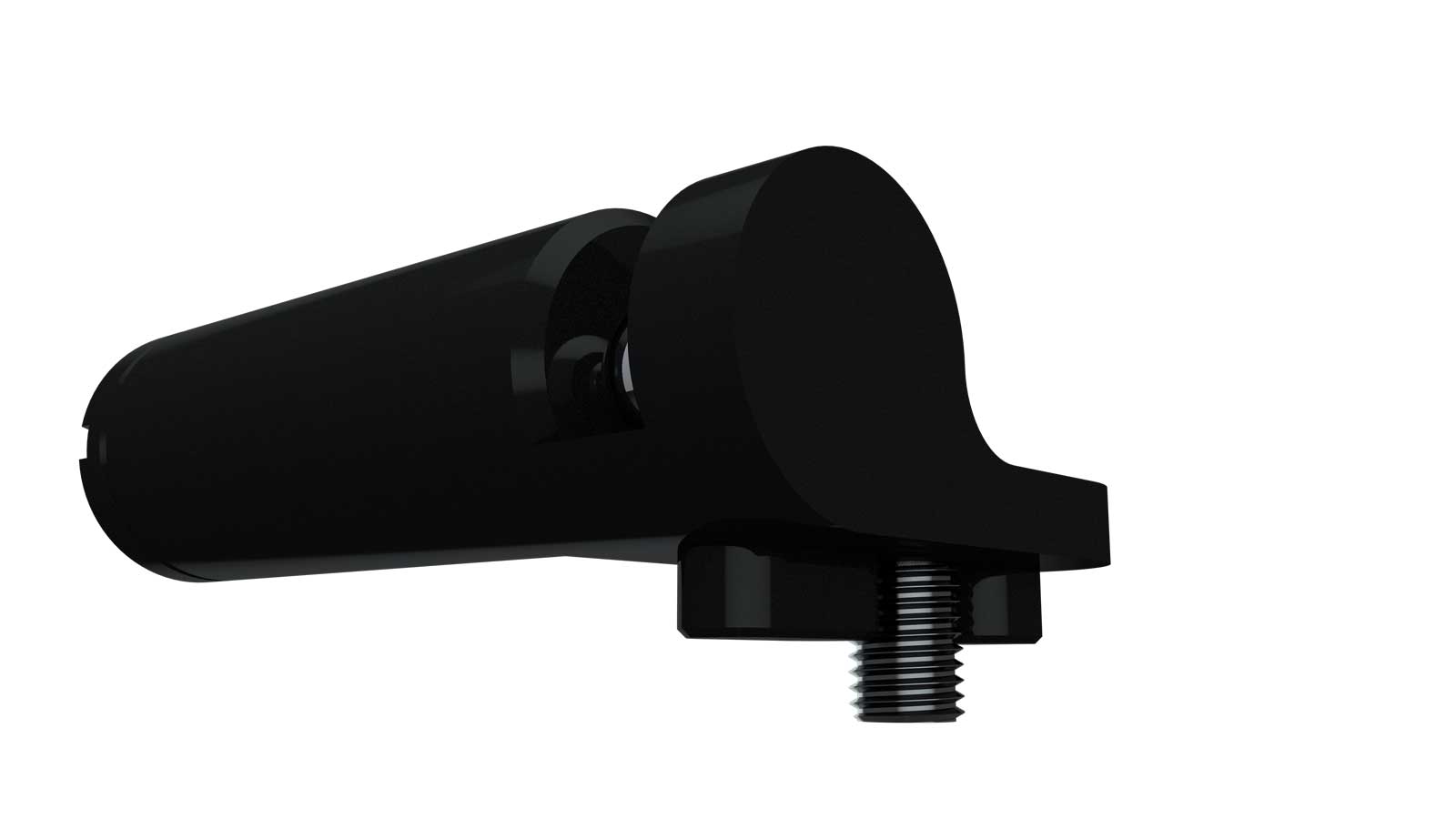

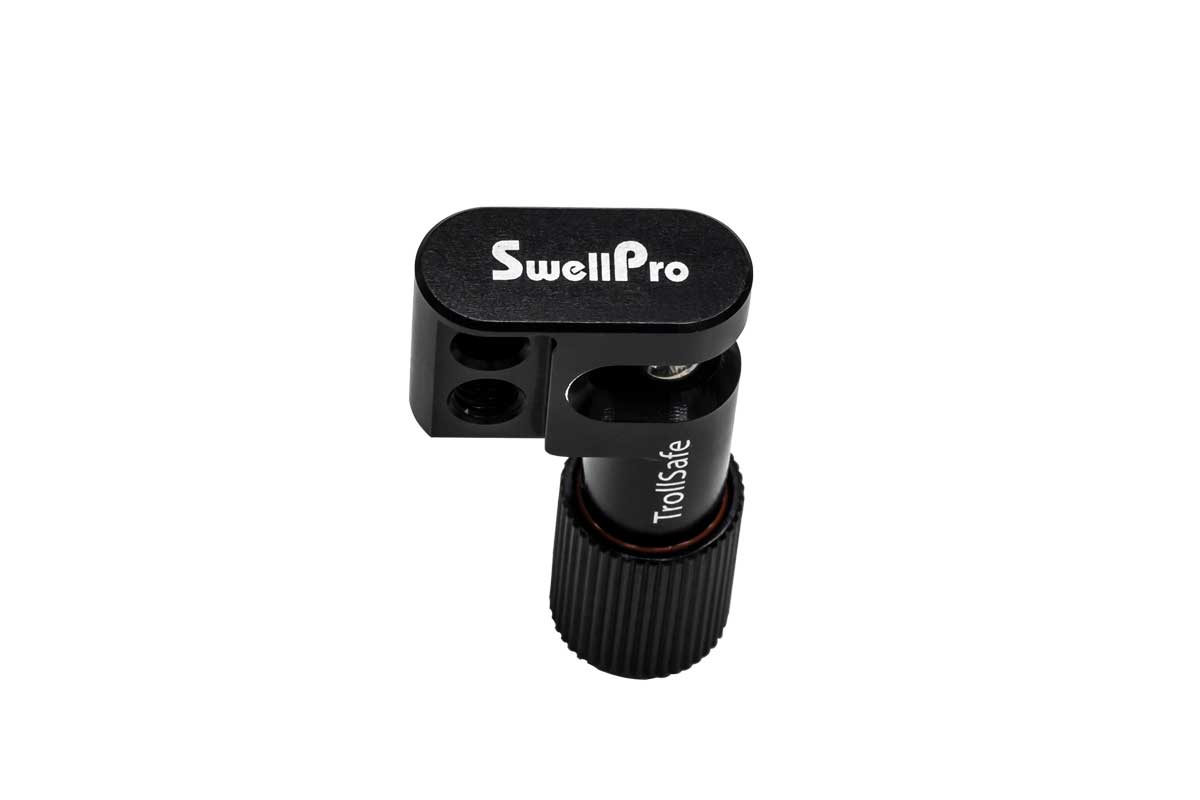

Trolling and safety bait release.

An adjustable tension release system for SwellPro Splashdrone 3+ or any of our payload release systems.

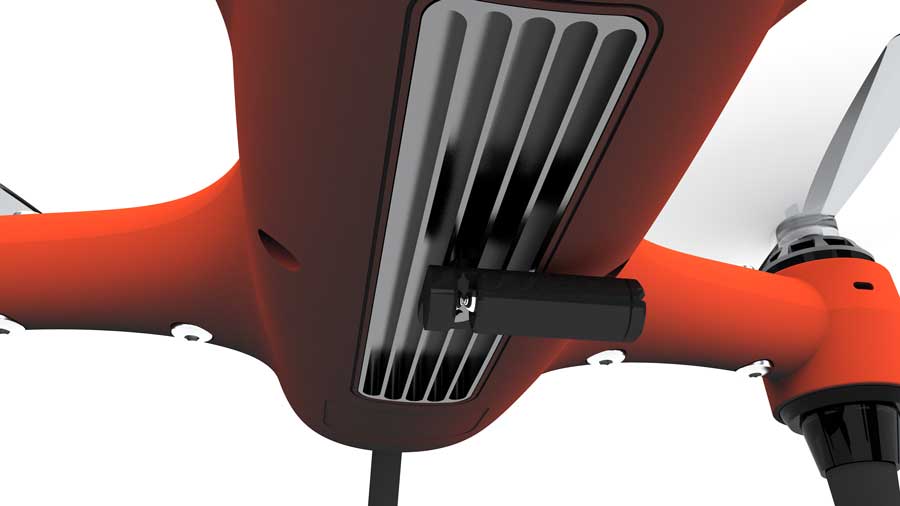

TrollSafe can be mounted directly onto the Splashdrone 3+ or a payload release (PL3) to do surf fishing. As a safety mechanism TrollSafe protects your drone in case of a line jam or if your payload or line gets hit by a bird or a wave. With TrollSafe you can also safely use your drone for trolling baits or lures in target locations - confident that the line will release if you get a strike.

TrollSafe can also be used as drone trolling and emergency line release system.

 View Or Download Instructions

Spec Sheet

Size 44mmx24mmx14mm Weight 16 Grams Release Tension ~500grams - 8000grams

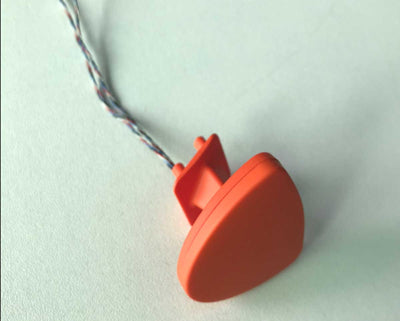

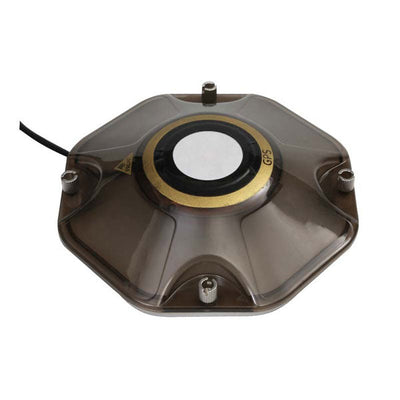

Easy to replace GPS Module unit. For use on the Spry + (please note picture currently shows the older model)

Overview

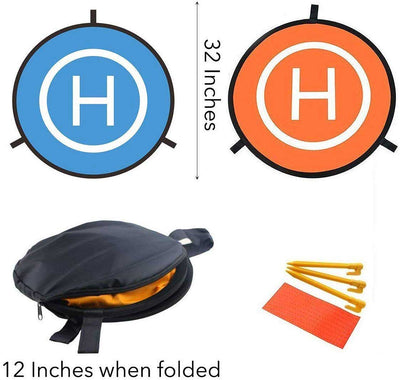

High Quality: Waterproof nylon pad with double sided high-precision printings makes it durable and won’t have colour fade easily.

Mess Free: With spacious landing pads, you can land your drone easily without deviation, also keep it clean on pad.

High Function: Reflective strips are used for night flying, which improves clear location for drone in darkness. 3 land nails fixed to the landing pad on the ground firmly helps the landing pad work perfectly in windy environments.

High Value: One pad with double printed sides(in Blue and Orange) makes you more options on different occasions. Also highlight the clear location of the landing place.

Large Capacity: Landing pad at 55cm/21.5in fits most drones.

SwellPro Landing Mats - Quality Landing Solutions for Drones

Superior Quality and Durability

Experience the pinnacle of durability with SwellPro's top-tier Landing Mats, designed to provide a robust landing surface for your drones. Our mats are meticulously crafted using high-quality, waterproof nylon materials to ensure they withstand the harsh elements of outdoor use. These mats are not only resilient against wear and tear but are also engineered for longevity. Each landing mat boasts double-sided, high-precision printings that exude a vivid and striking visual appeal. These fade-resistant prints are rigorously tested for colour retention, ensuring they remain vibrant and bold even after extensive use.

Precision Landings Made Effortless

SwellPro's Landing Mats redefine ease of use with their spacious and accommodating design. By offering a generous landing area, these mats allow for pinpoint precision in drone landings, eliminating deviation and ensuring your drone touches down exactly where you intend. This level of accuracy is indispensable for both novice and experienced drone pilots alike. Moreover, your drone is guaranteed to stay spotless, as it lands on the clean surface of the mat rather than on potentially dirty or uneven ground. Our landing mats are designed to ensure a mess-free, accurate, and controlled landing every time.

Exceptional Functionality and Versatility

SwellPro's Landing Mats are engineered with functionality at the forefront. These mats come equipped with reflective strips that greatly enhance visibility for night flying, a crucial feature for drone pilots who enjoy flying in low-light conditions. By improving the visibility of the landing area, these reflective strips help you clearly locate your drone in darkness, adding an extra layer of safety and convenience. In addition, each mat includes three sturdy ground nails, keeping the mat firmly anchored in windy conditions. These nails provide a stable and reliable landing surface, ensuring that the mat stays in place even in the most challenging environments.

Valuable and Adaptable Design

Our Landing Mats offer a two-in-one solution, with two distinct colours, blue and orange, printed on each side. This dual-colour design adds immense value by providing you with more options for different occasions and environments. Whether you prefer the calm, cool blue or the vibrant, eye-catching orange, our landing mats offer the versatility you need. The double-sided design not only offers a choice of colours but also clearly demarcates the landing area, making it easy to identify. The dual-colour design of our mats gives you two different looks in one high-quality, durable mat, maximising your investment and adding versatility to your drone flying experience.

Accommodating for Most Drones

SwellPro's Landing Mats are thoughtfully designed to accommodate a wide range of drone sizes. With dimensions of 55cm/21.5in, these mats are suitable for most drones available on the market, from smaller models to larger variants. By providing a generous landing area, these mats ensure that drones of all sizes are well-protected during landing. The Landing Mats act as a cushion, protecting the delicate components of your drone from potential damage caused by hard or uneven surfaces.

Easy Setup and Portability

SwellPro's Landing Mats are designed with convenience and portability in mind. Setting up your landing mat is a breeze, allowing you to quickly get your drone in the air. The mat effortlessly unfolds and can be anchored securely to the ground using the included ground nails. When you're done flying, the mat can be easily folded and packed away in the provided carrying case, ensuring hassle-free storage and transportation. The compact design and lightweight materials make it simple to carry the landing mat to your desired location, whether you're heading to a nearby park or travelling to a remote filming location. With SwellPro's Landing Mats, you'll always have a reliable landing surface at your fingertips, wherever your drone adventures take you.

Enhanced Drone Safety and Protection

SwellPro's Landing Mats not only make landing easier but also provide an additional layer of protection for your drone. The mat serves as a barrier between your drone and the ground, preventing direct contact with dirt, sand, grass, or other debris that could damage your drone or interfere with its sensors and cameras. By providing a clean and stable landing surface, our landing mats help minimise the risk of damage to your drone's propellers, motors, and other components. Additionally, using a landing mat reduces the wear and tear on your drone, extending its lifespan and ensuring optimal performance over time. With SwellPro's Landing Mats, you can fly confidently, knowing that your drone is protected during takeoff and landing.

Order Today

SwellPro's Landing Mats are a must-have accessory for drone enthusiasts, offering a range of benefits that enhance your drone flying experience. Their high-quality construction, precise landing capabilities, functional features, versatile design, compatibility with various drone sizes, easy setup, and enhanced drone protection make them an invaluable addition to your drone gear. Invest in a SwellPro Landing Mat today and experience the convenience, safety, and reliability that come with a premium landing surface for your drone. Elevate your drone adventures and protect your equipment with SwellPro's top-tier Landing Mats.

Overview

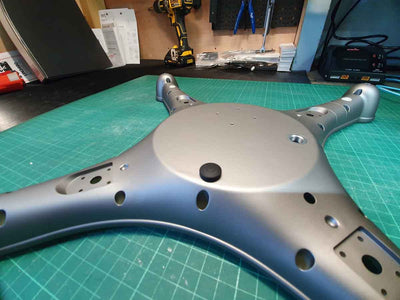

We can now upgrade your SD3+ or SD3 with the new and exciting external on/off switch.
You can choose to install the kit yourself and we will send the kit to you, together with easy to read instructions. Installing the kit yourself will void any warranty that you may have.

Alternatively you can send your drone back to our UK workshop and we will fit it for you.
Please enquire first if you would like to know current waiting times on this service.

Overview

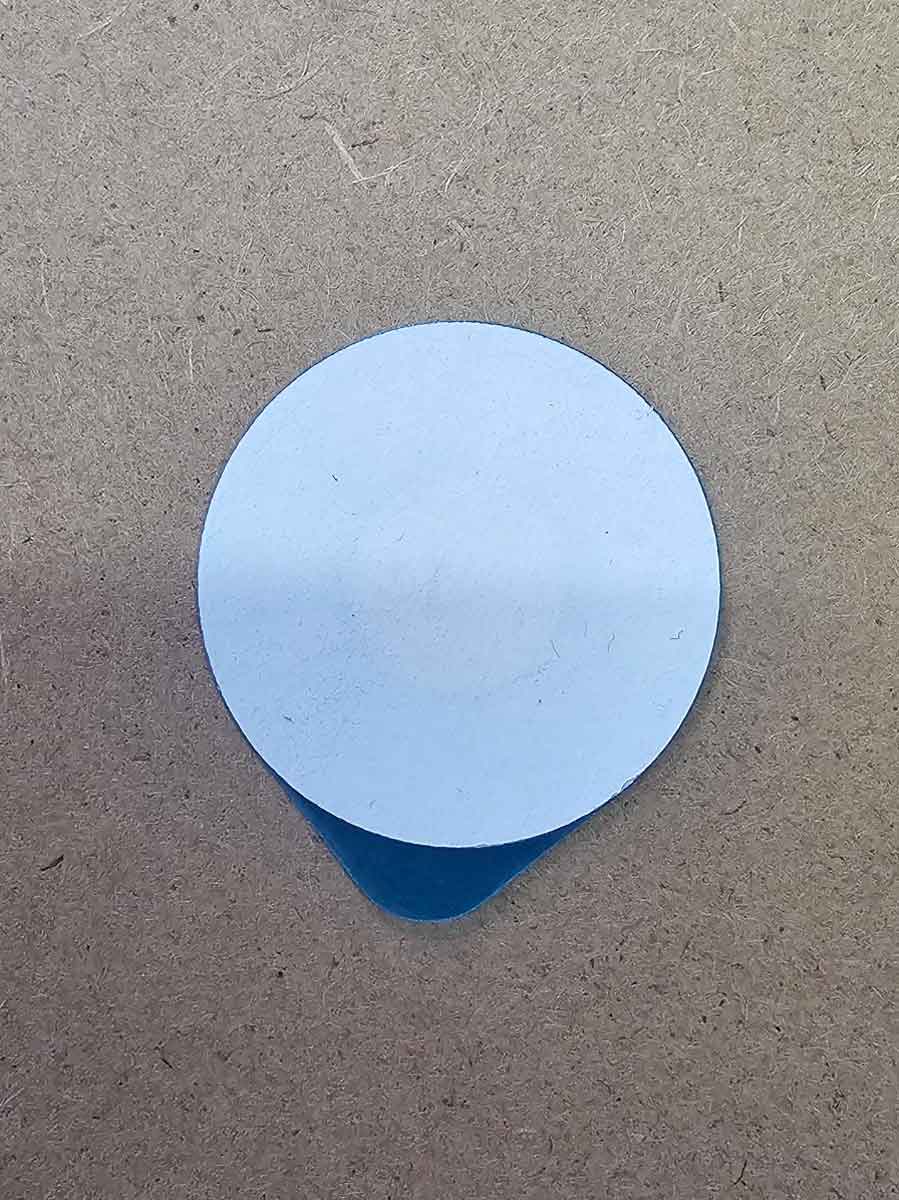

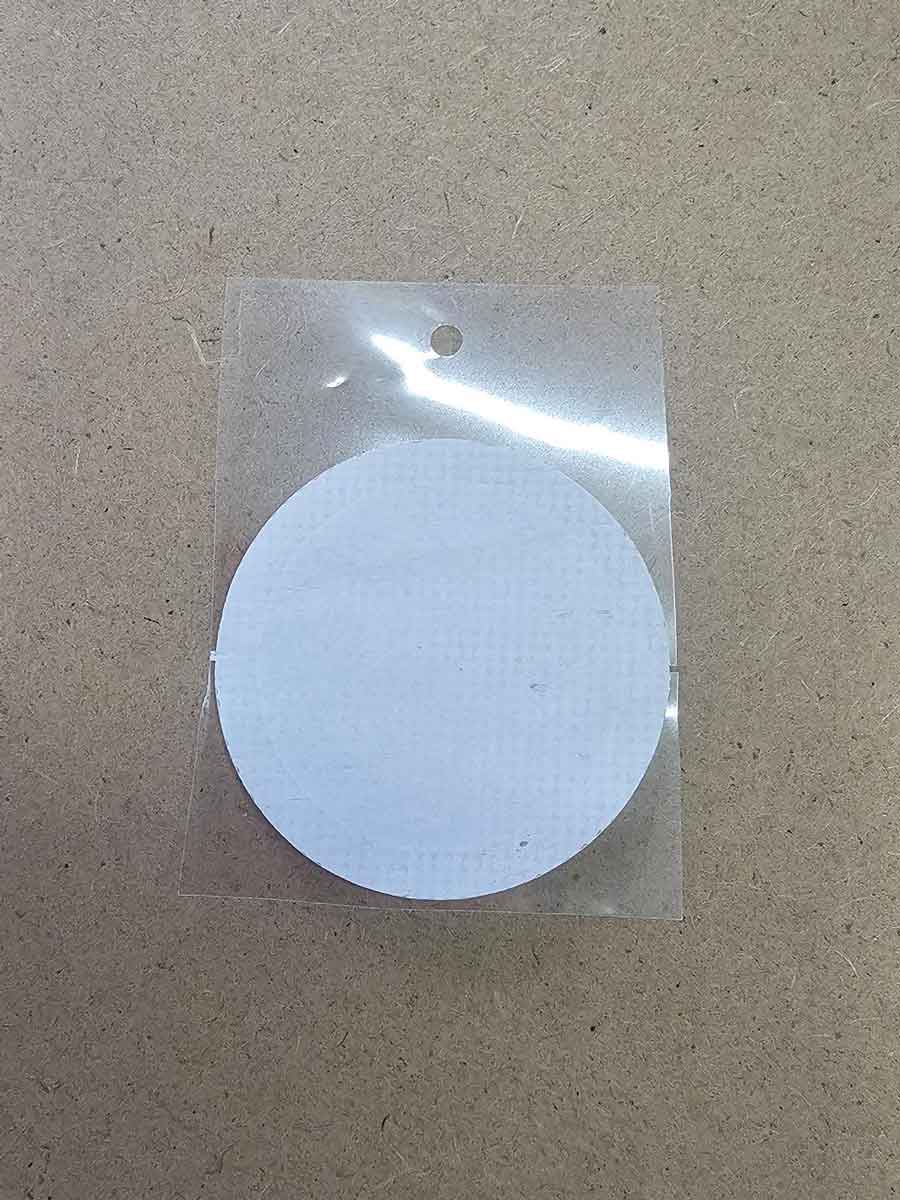

• Replacement waterproof membrane and protective decal.
• Specially made for ventilating.
• Dissipates heat and prevents the drone from overheated.



Placed on top of the drone's hatch lid, the membrane is specially made for ventilating.  The barometer will correctly sense the altitude. It is also used to dissipate heat and prevent the drone from overheating

Package Includes 1 set only. Please select the correct variation for your drone.

Product Description

The 620kv Waterproof Brushless Motor is specially designed for SplashDrone 3+ with strong power, stable performance, corrosion resistance, and can work in a variety of complex environments. This product is the replacement seats kit ONLY.

NOTE: PLEASE NOTE CW/CCW WHEN YOU PLACE  YOUR ORDER FOR YOUR MOTOR SEATS.

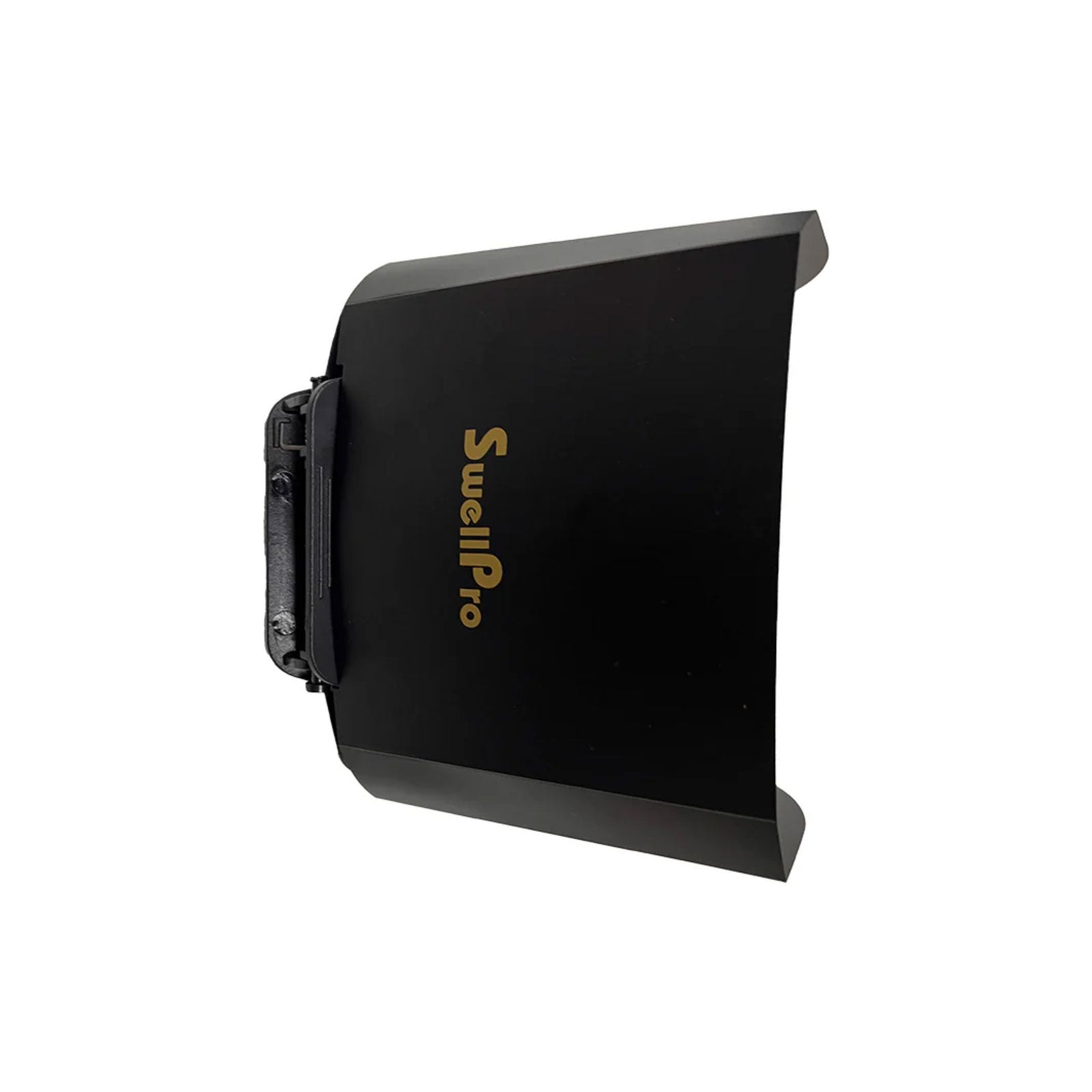

Overview

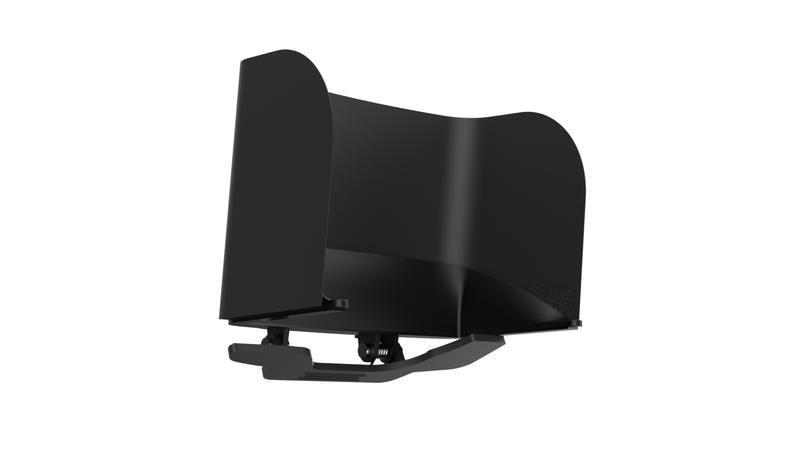

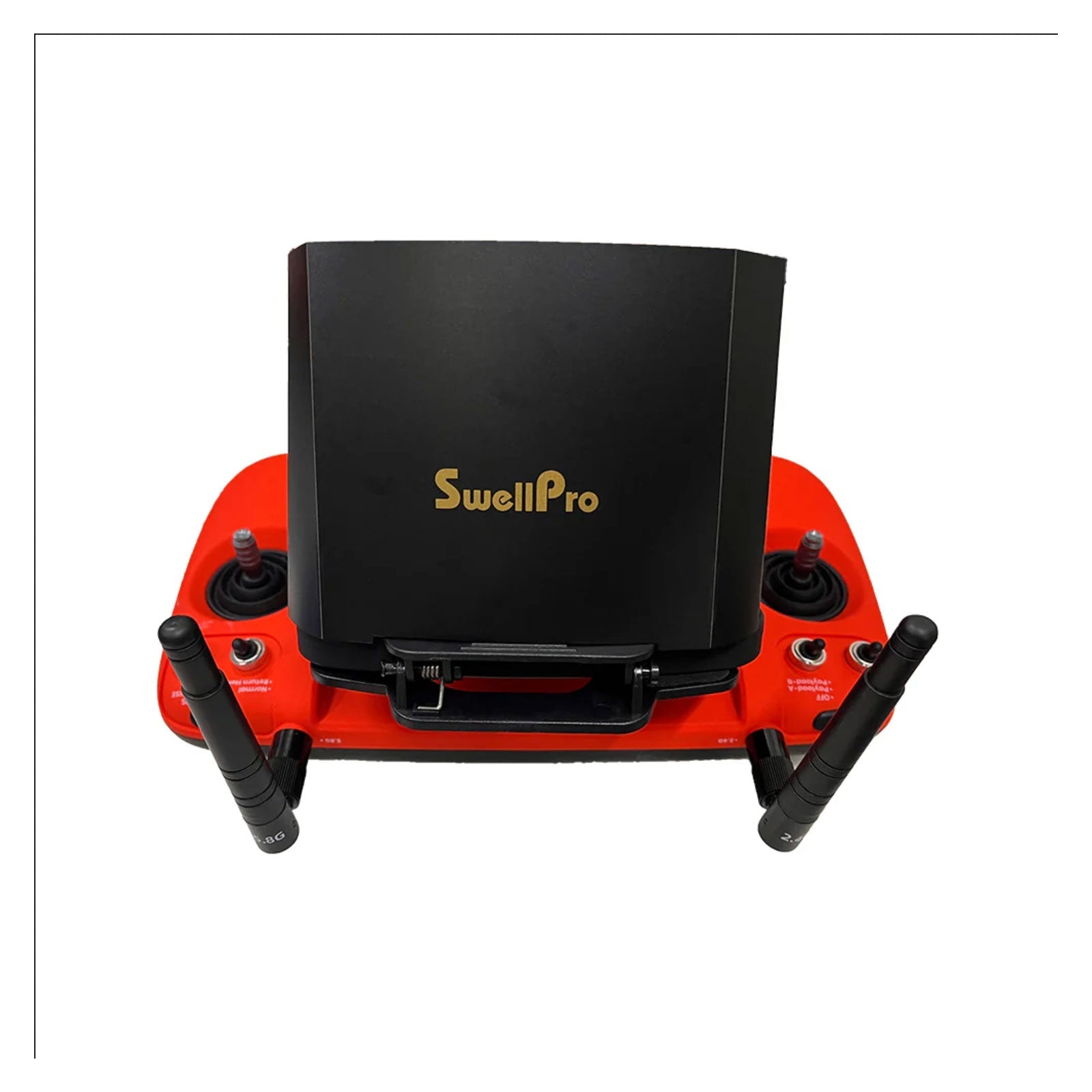

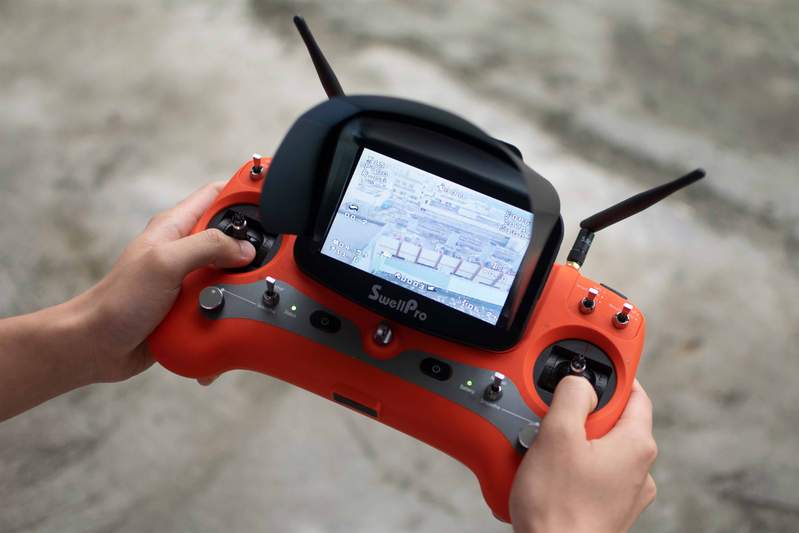

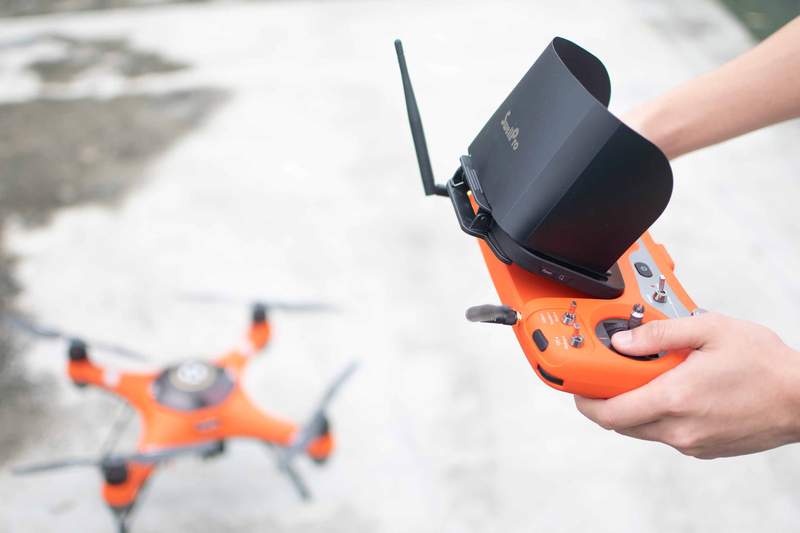

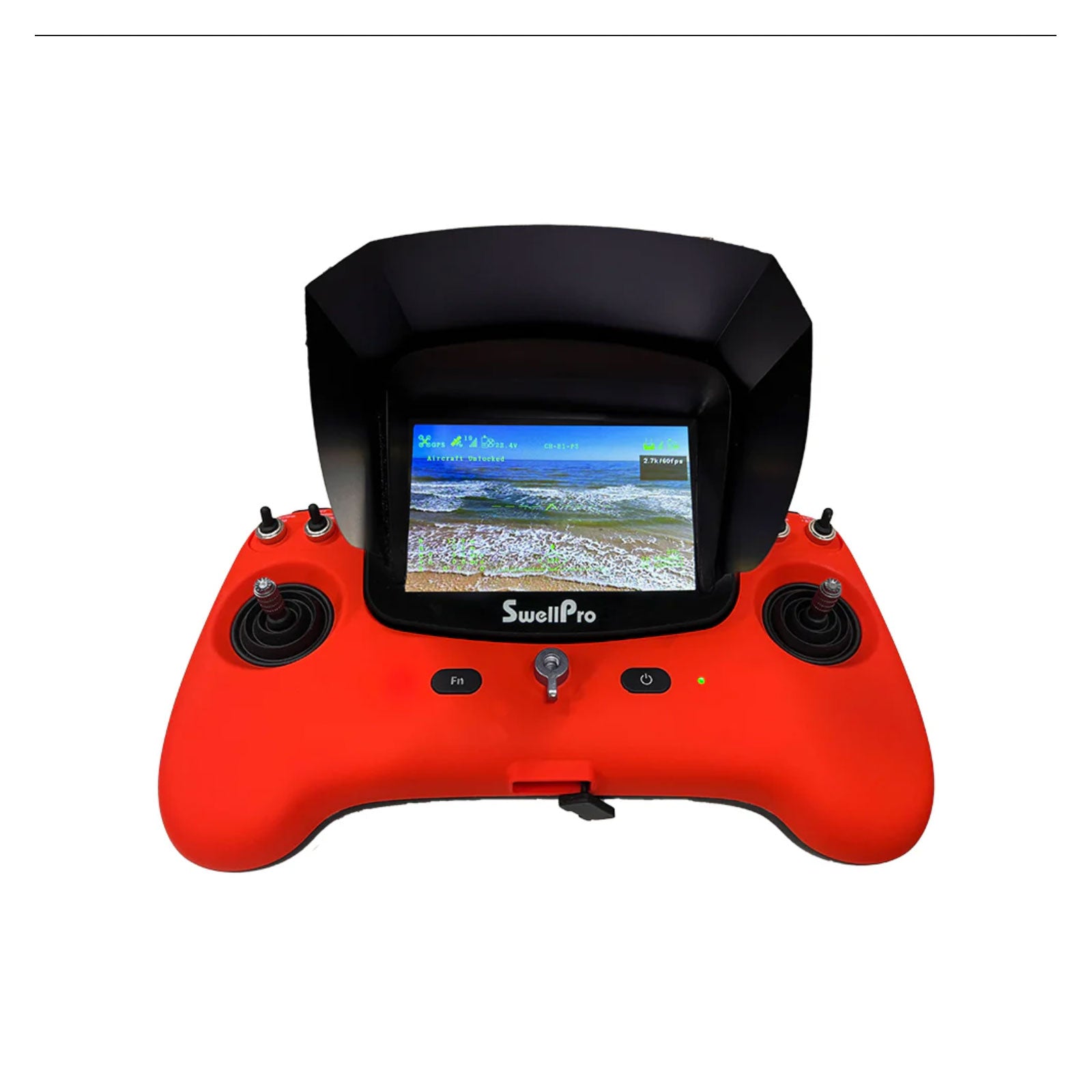

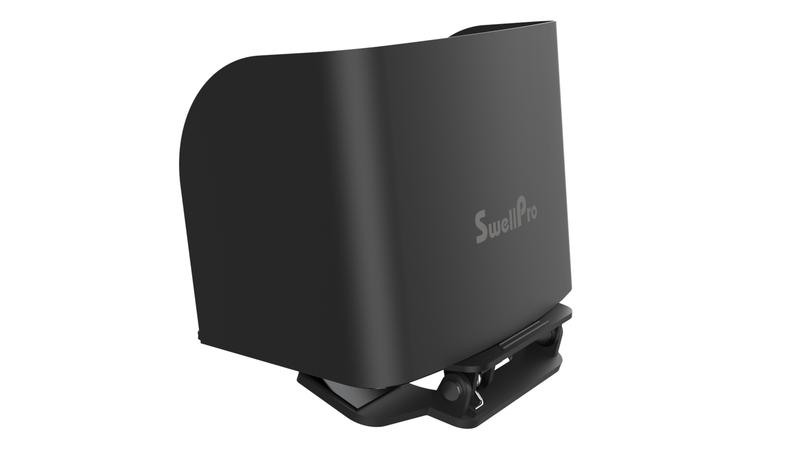

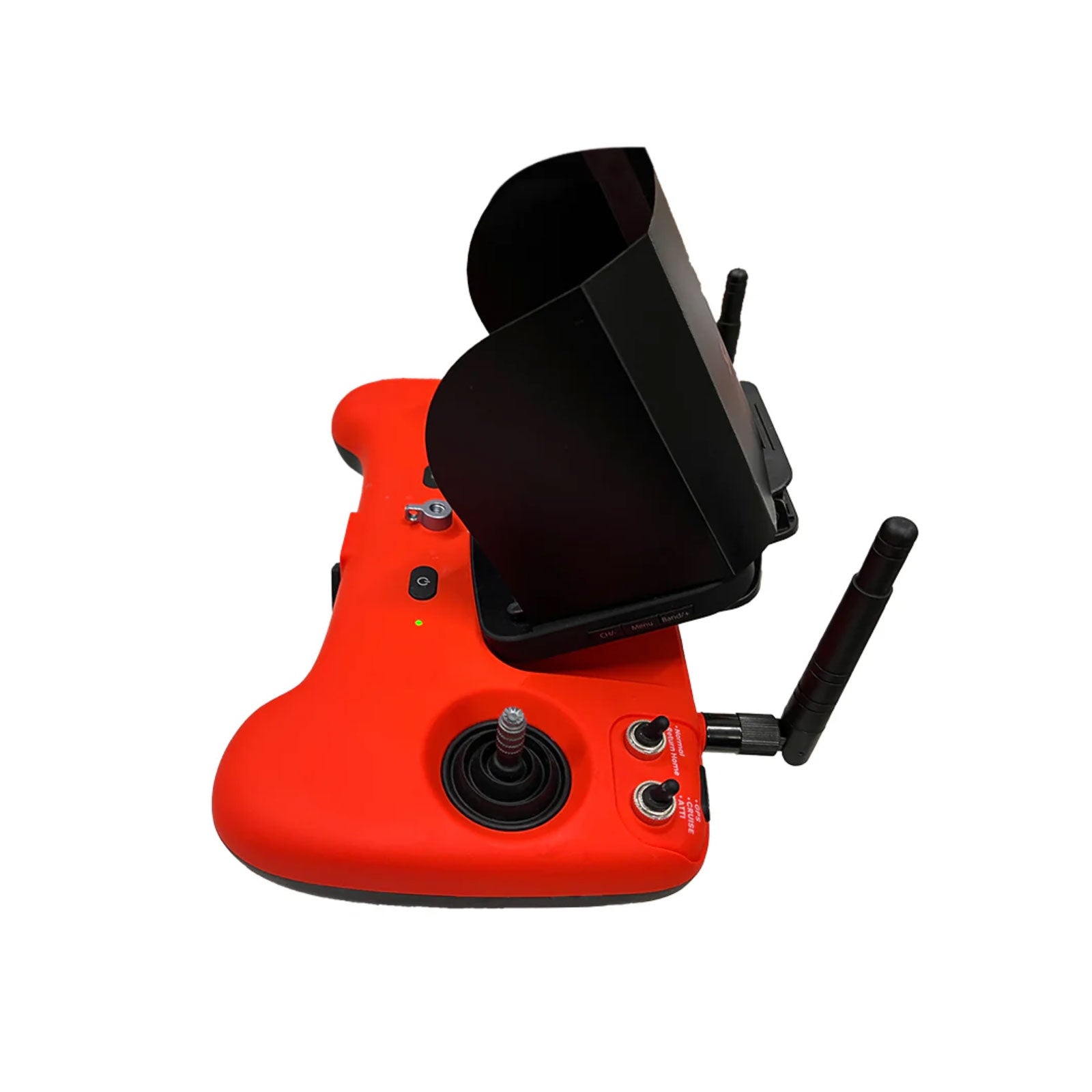

A PVC Sun Shade on the 5'' FPV Screen of the Remote Controller

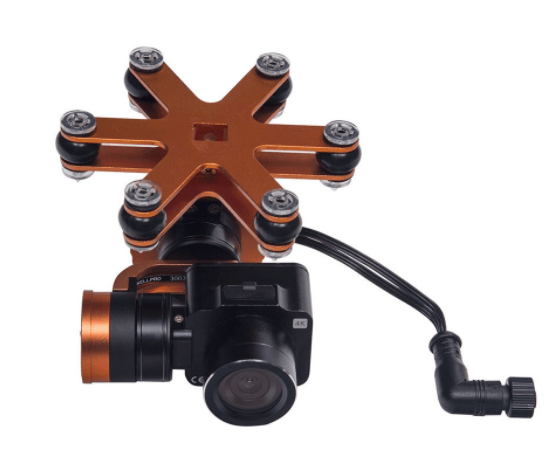

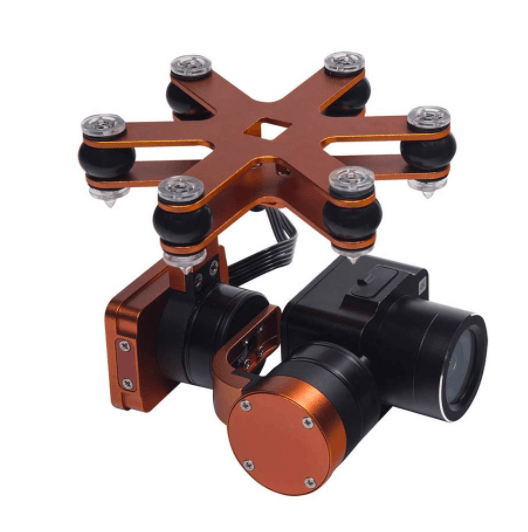

Product Description


1. Fully waterproof 4K camera, with integrated 2-axis gimbal provides you the unique ability to capture smooth and stable videos;
2. The new camera shoots 4K 25FPS video and 14 megapixel still photo;
3. Quick attach and release requires only a single screw;
4. With built-in Micro SD card reader;
5. IP67 wateproof level allows for filming underwater;
6. Only compatible with Splash Drone 3.

Boat Show

Over 50% discount on tickets for 2021 Southampton Boat Show.

Please note this is an e-ticket. Once your order is placed we will email you your e-ticket. You can scan your e-ticket at the gate using a smart phone.

The ticket is valid for any one day between the 10th and 19th of September.

You can find our stand by entering Gate F and turning left - our stand number is E032.

Entry requirements for visitors:



·       Visitors will be required to undertake a lateral flow test within 48 hours prior to arriving at the show ·       Visitors will need to order their lateral flow test kits in advance of the show. They can be ordered for free by clicking here, or you can pick them up in person at your local pharmacy (England only) ·       Once you’ve taken your test, please log the result on the government website here. Your test result will then be available via the NHS App, email, or text ·       To enter the Southampton International Boat Show, all visitors will be required to present a negative lateral flow test result (this can be displayed on the NHS App, via email or text) upon arrival at the gate ·       Any visitor who fails to present a negative lateral flow test result when required will not be allowed to enter the show

View & Download The Event Map

Overview

Replacement Glass Dome

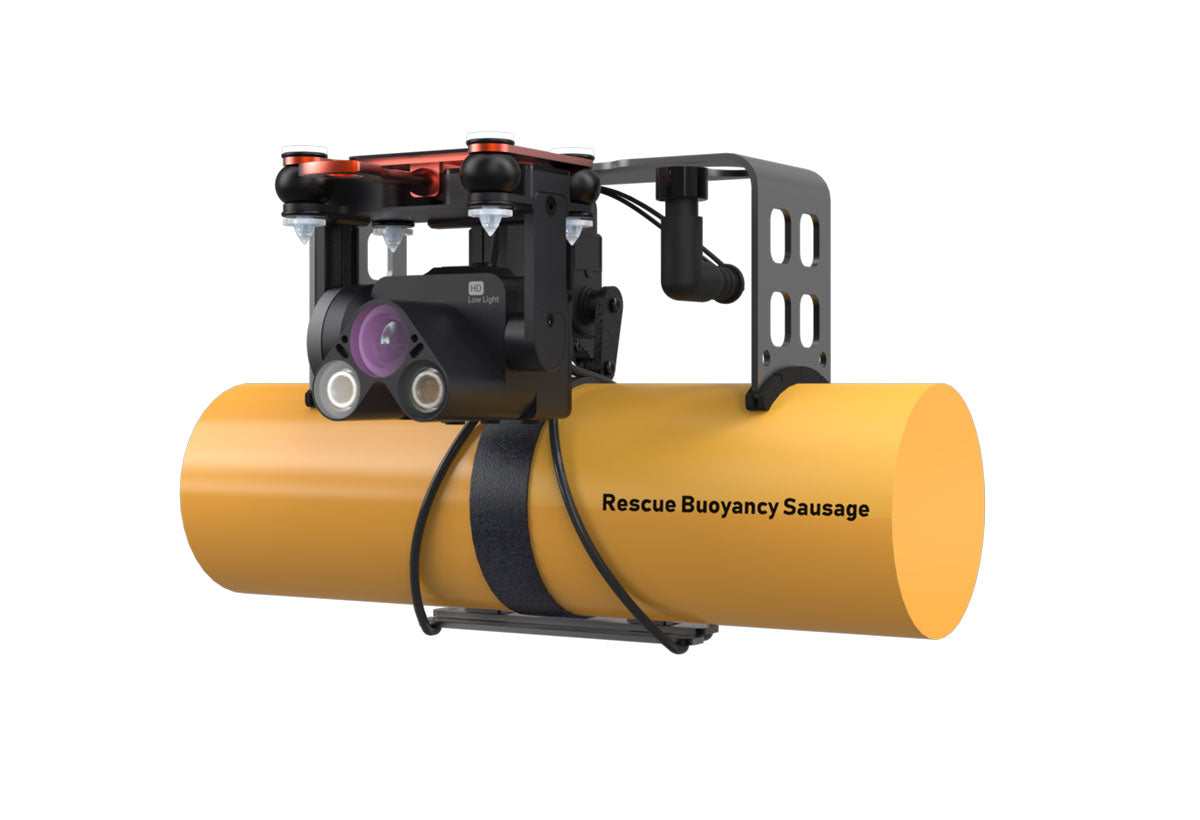

Overview

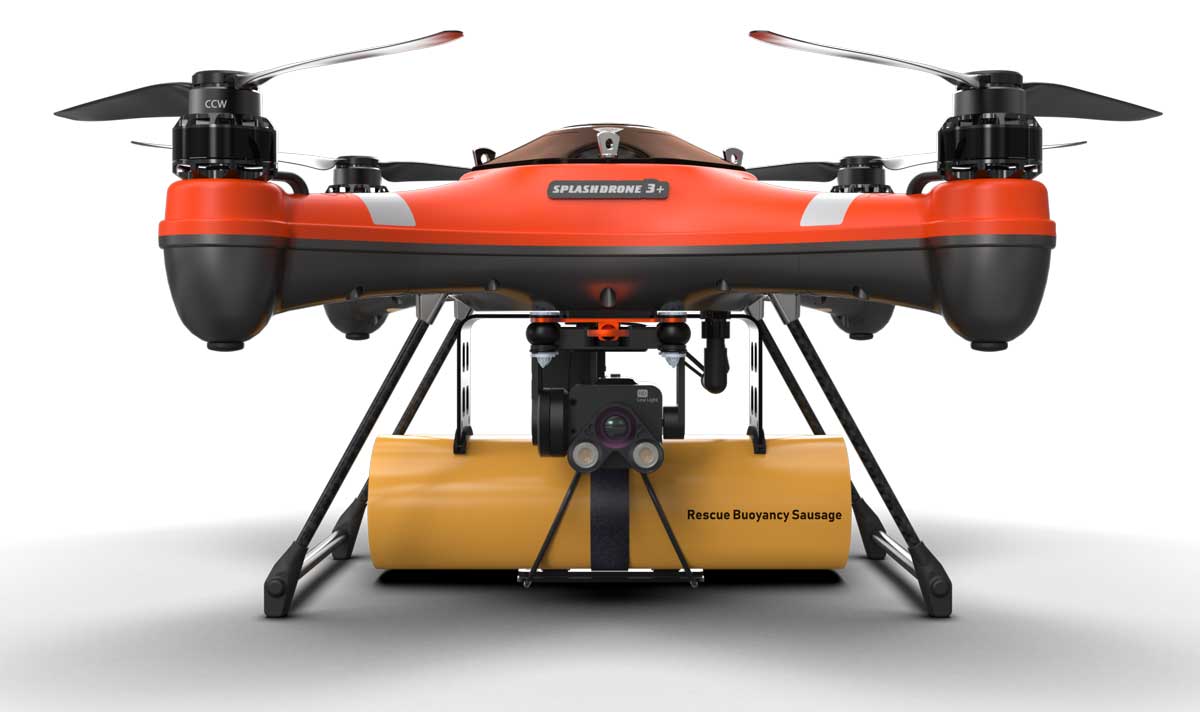

Designed for lifesaving as well as Search and Rescue operations in low-light conditions, the SAR2 payload release module incorporates a full-HD low-light colour camera, remote control and tilt gimbal as well as a specially designed rescue buoyancy sausage for life saving and rescue operations. Get live as well as recorded video footage from the drone and accurately locate your rescue target before remotely dropping the rescue sausage or other payloads up to 1.2kg.



Search & Rescue (attachment for the SplashDrone 3+)

By adding a waterproof payload release module or a specially designed waterproof rescue unit to the SpashDrone 3+, you have a cost-effective, robust, waterproof rescue solution.

Three bundles are available for Search & Rescue operations.

Save Lives Faster

Increase the effectiveness of your Search & Rescue efforts by adding a SplashDrone 3+ to your team.

Many drones are not suited to the rigors of harsh rescue environments. The SplashDrone 3+ is the world’s first and most robust waterproof flying platform built to perform search missions in rain, snow, and flooded area and over the ocean.

The waterproof quick-release payload mechanisms can take up to 1.2kg of life-saving equipment to people in need. Two purpose-built rescue buoyancy modules are available for ocean and lake rescue in normal and low-light conditions.

The SplashDrone 3+ can not only assist first responders with better situational awareness and fast delivery of life saving equipment or supplies by air, but can also be used by amateurs to deliver rapid assistance without risking themselves.



Applications:

• Quickly survey disaster zones from above, help rescuers assess the situation and plan missions.
• Search for missing or injured people in a disaster area, storm, flood or ocean.
• Deliver life-saving equipment to victims at a distance.



Benefits:

• Easily access hard-to-reach areas.
• Execute missions in all weather.
• Help protect rescue team members from potential risks.
• More time-saving than on-foot searches, speeds up the efforts to locate victims.

• Dramatically reduce the cost of missions compared to manned aircraft search.
• Drop life-saving equipment to help victims out of immediate danger and buy more time for rescue teams to arrive.
• Able to land and take-off from salt and fresh water as well as flying in rain, sleet and snow.
• Stable flight in gusts of wind.
• High propulsion system and solid design with a payload capacity up to 1.2 kilogram.

• Remote and precise payload release by remote controller.
• Record high-resolution video through the onboard camera in the payload release mechanism.
• View real-time video feed on the remote controller or on goggles.
• Controllable by mobile APP to conduct autopilot missions such as waypoints navigation and orbits.
• Able to automatically return to the starting point and automatically land after mission completed.


Spec Sheet

Main Specs
Waterproof Level：	IP67
Take-off Weight：	1KG
Size：	255*155*140mm
Line length：	100mm
Weight：	836g(Included Life jacket）
Number of lifebuoys that can be mounted	1
Camera Specs
Image Sensor:	1/2.8'' CMOS
TV Mode：	NTSC PAL
Video Resolution:	1920x1080@30/60fps
Photo Resolution:	1945 (H) × 1097 (V)
Max video stream:	222.75 Mbps
Lens FOV:	D 100° H 77° V 56°
Aperture:	f/1.0
Video Format:	AVI
Photo Format:	JPEG
Supported Memory Card Micro SD:	Class 10 or UHS-1 or higher, up to 32Gb

Overview

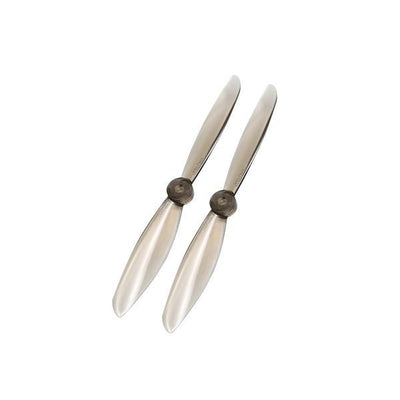

Specially made for Spry
Excellent performance
Lightweight and durable
Easy to mount and detach

Diameter × Thread: 6.0 × 4.5 inches

Overview

• Extended flight times (17 Minutes)
• Low battery alarm
• Capacity: 3600 mAh
• Energy:33.88 Wh

Specifications

Capacity: 3600 mAh
Voltage: 12.1V
Battery Type: LiHv 3S
Net Weight: 220 g
Energy:33.88 Wh
Charging temperature range: 40°F to 104°F (4°C to 40°C)

Product Description

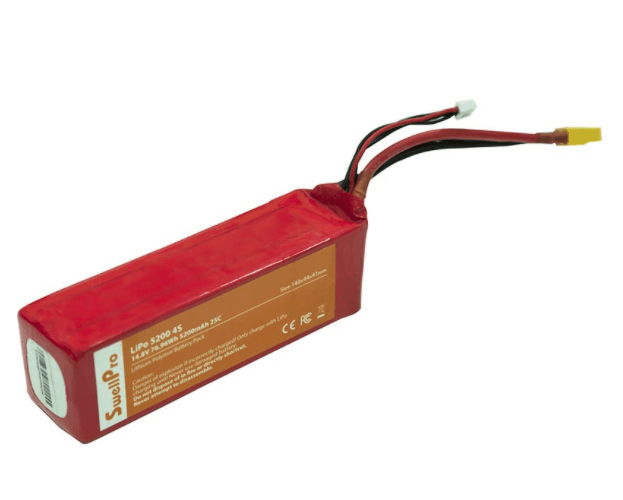

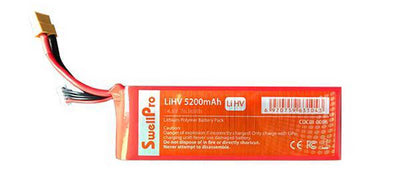

The new 4S High-Voltage battery (4S-LiHV) is specially designed for SplashDrone 3/3+, which has perfect size that will fit the drone. The high density material can load much more power than normal battery, it can make the flight time of the SplashDrone 3/3+ up to 25 minutes without mount module.

Note:

1. Only use the standard Swellpro SplashDrone 3+ High-Voltage balance charger to charge this battery, other 4S charger might not able to fully charge this battery).

2.Since the SplashDrone 3+ platform supports different kind of mount modules, the flight time will vary according to the mount module.

3.The actual flight time might become less according to the time and battery maintenance status, read the drone manual to know how to maintain the drone battery.



Product Description

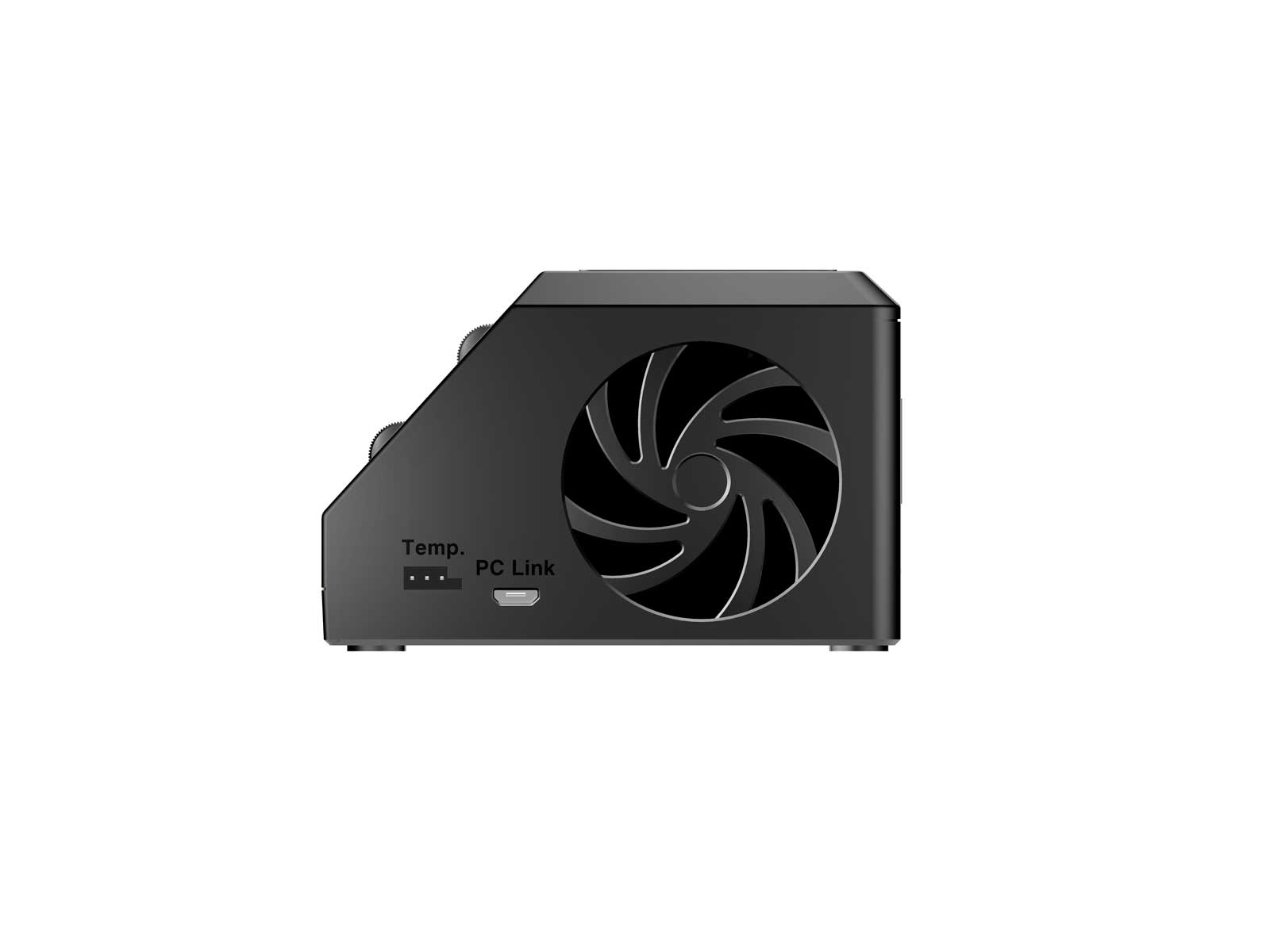

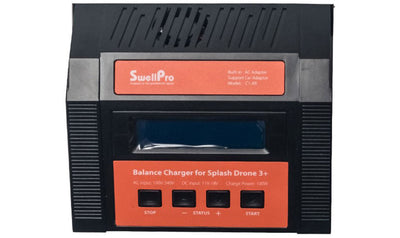

The new 4S High-Voltage battery charger is specially designed for SplashDrone 3+ new High-Voltage battery (4S-LiHV) and the 2S remote battery.

It is has fast charging ability, and easy to use. Just plug and charge.



(Note: It doesn't support the old SplashDrone 3 battery, pls don't use this charger to charge the normal 5200mAh battery, it might damage the battery)

Product Description

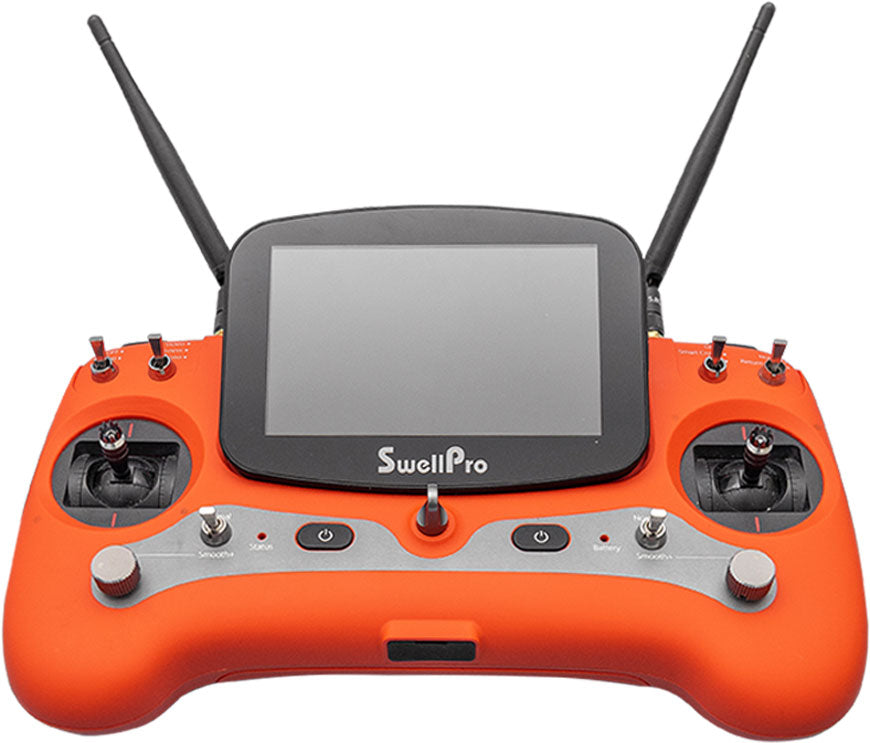

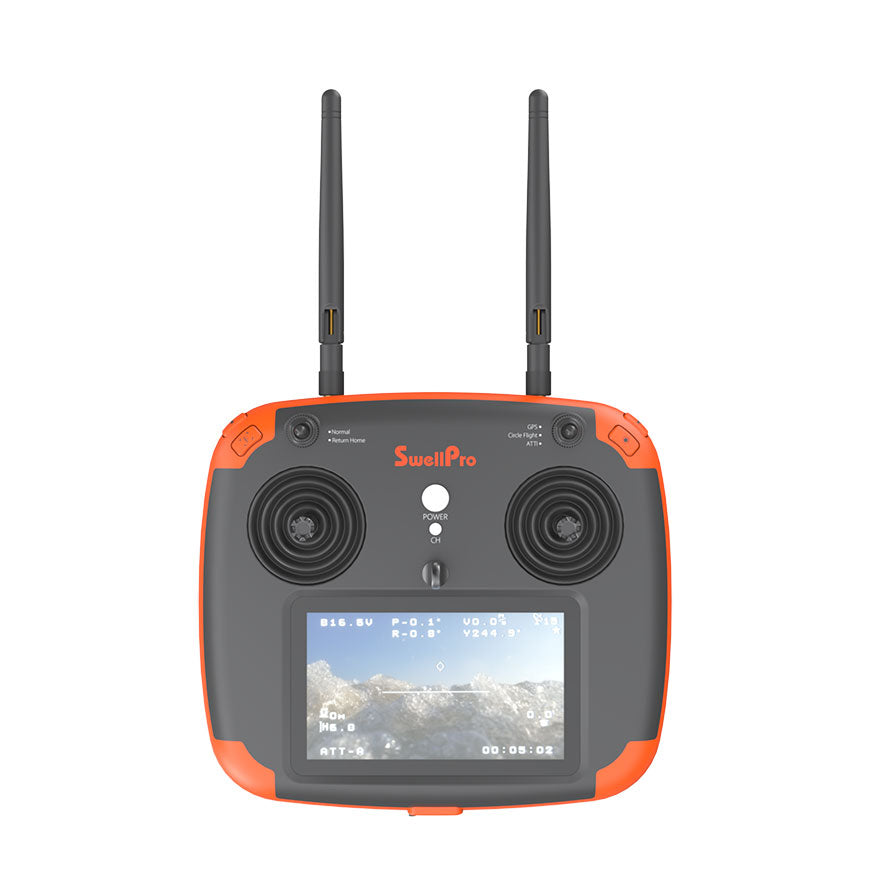

The SplashDrone 3+ comes with a custom designed, fully integrated remote controller. Redesigned controls maximize ease-of-use and efficiency, while a fully integrated, high-brightness 5" FPV screen clearly displays live video and overlaid (OSD) flight data without the need for any additional equipment. Flight control, payload release and camera controls are all at your fingertips.

Cruise Mode

Switch the remote controller into the Cruise mode and you will be able to pan (yaw) and fly the SplashDrone 3+ simultaneously with a single joystick, making  your flight path smoother for more cinematic footage.

Smooth+ Control

Go from joystick to fine knob control of drone rotation, direction or orbit - great for smooth videos and accurate flight.

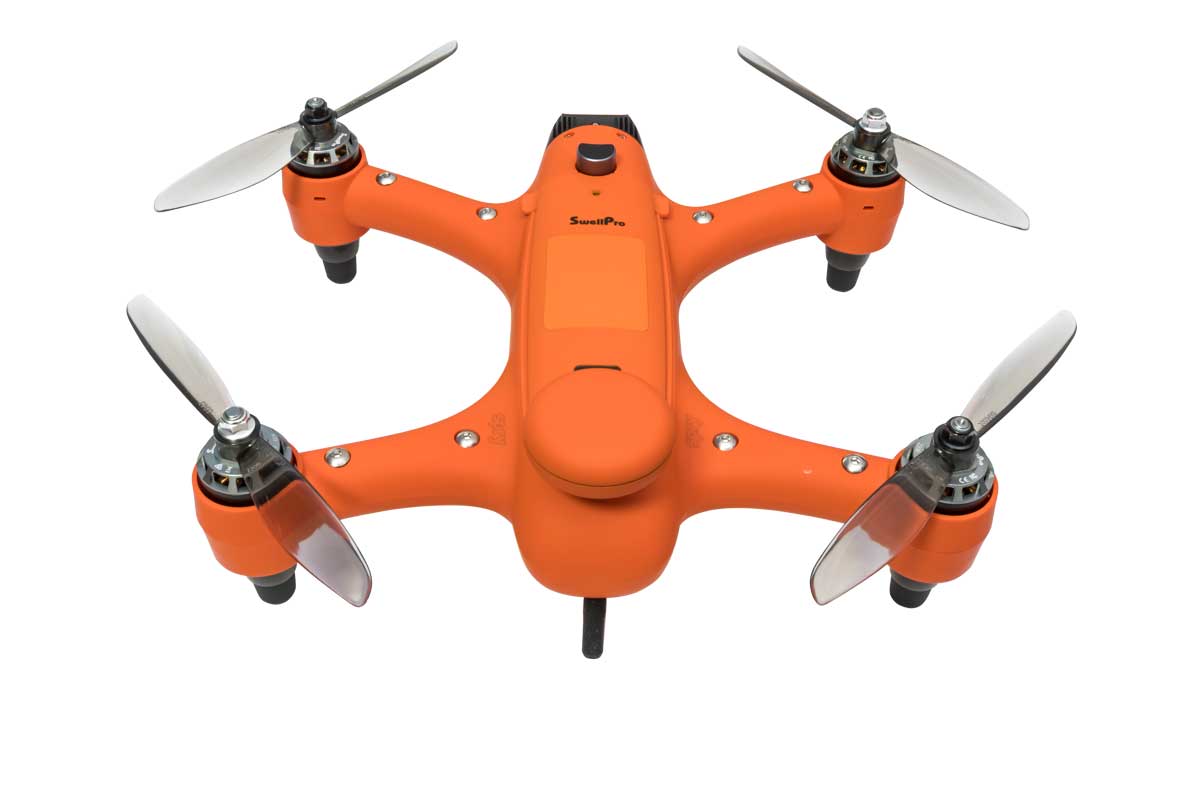

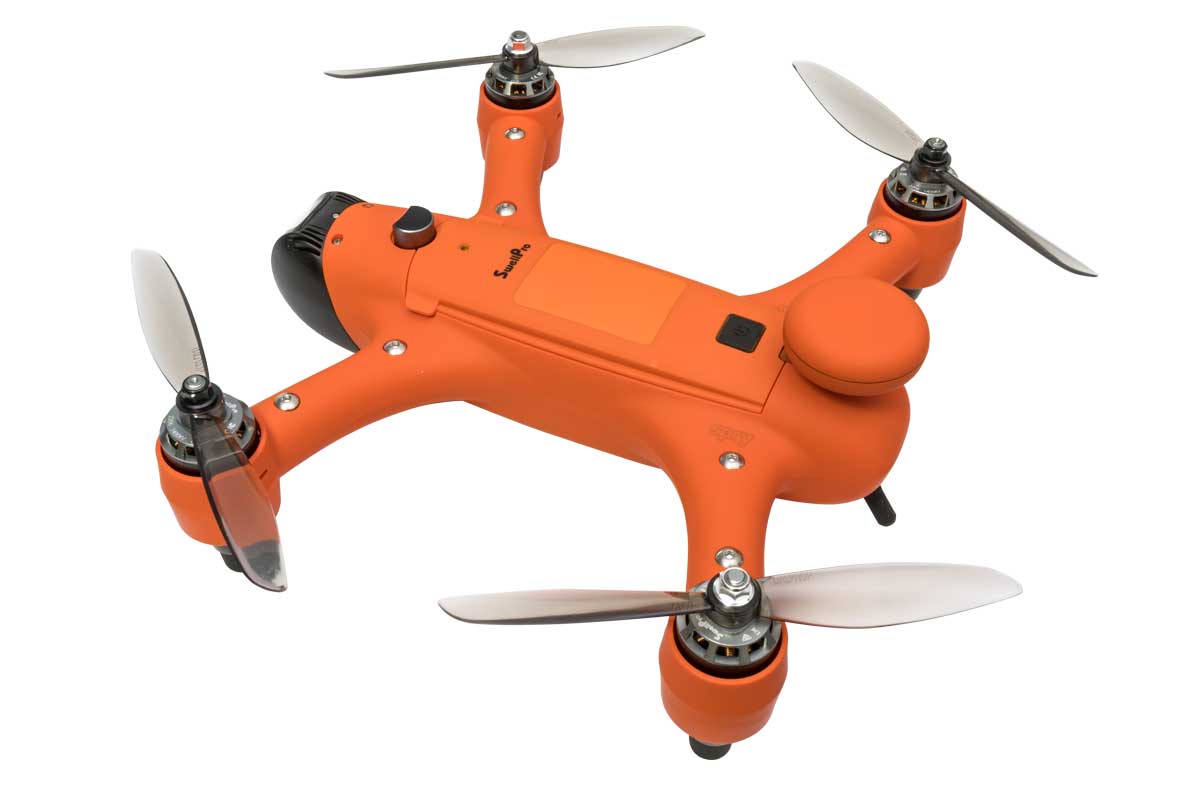

Overview

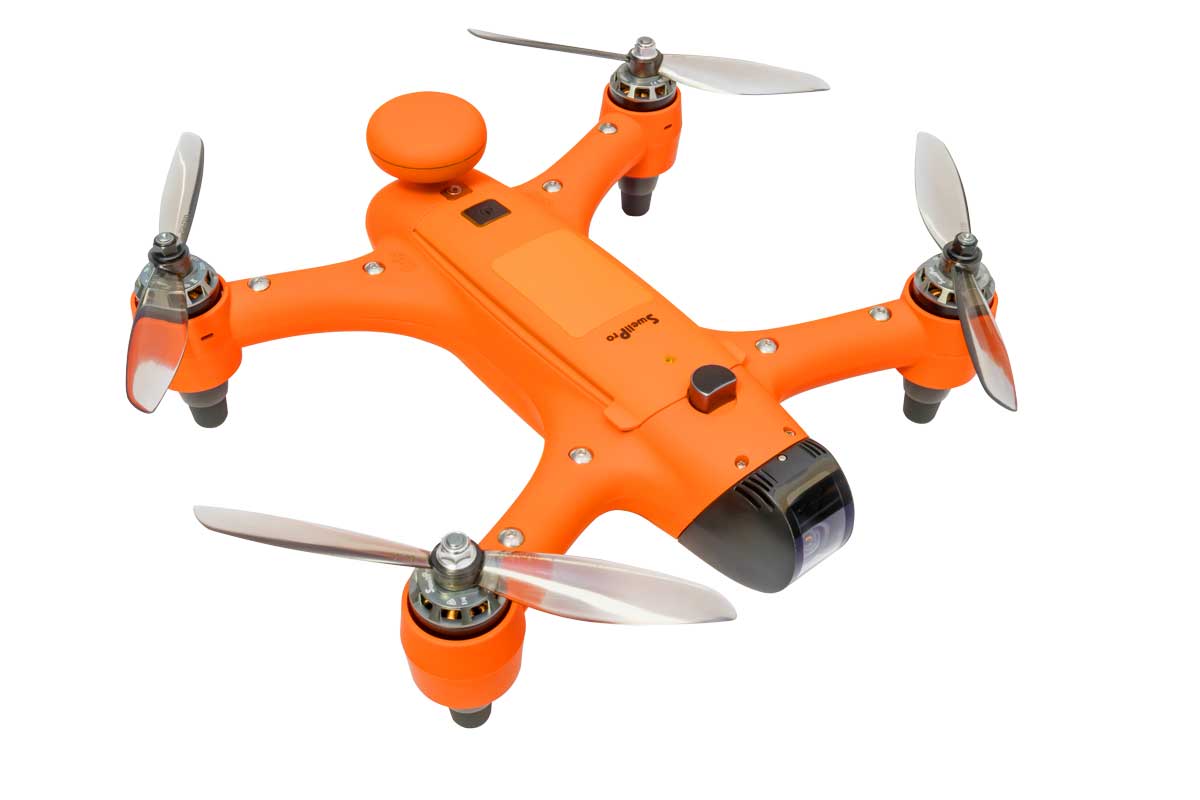

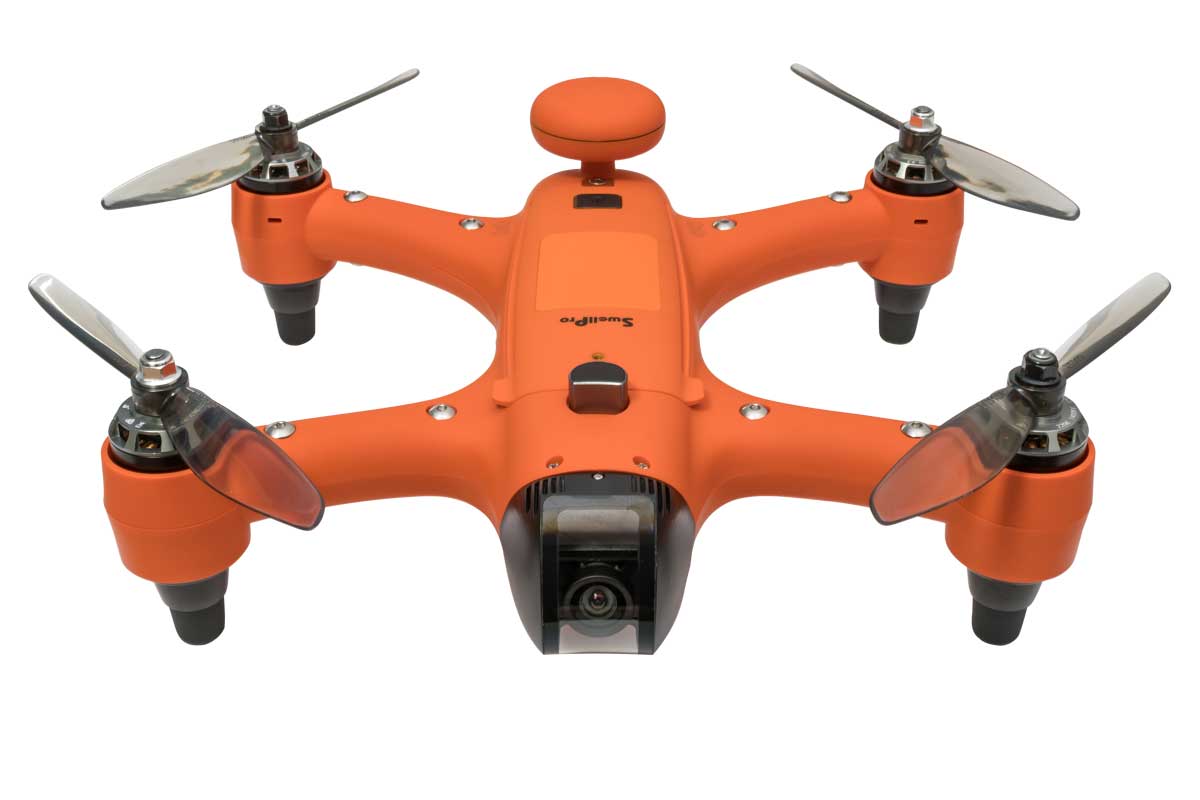

Waterproof Aircraft

100% Waterproof IP67 Rated

The Spry drone is engineered to be waterproof and buoyant. Purpose-built for action in the harsh marine environment with specially coated motors and corrosion resistant materials throughout. Land and take off from the water with total peace of mind.

Compact & Portable

The Spry is compact, rugged and ready to join you on the water. The Spry comes complete with a custom, lightweight carry case so it’s easy to take with you on your next adventure.

High Agility

The Spry is designed from the ground up to achieve a new compact shape, which is streamlined for reduced drag and turbulence as well as being tough.

High-thrust motors and high-power ESCs push the speed limit of the Spry to over 65 KM/H in manual mode, easily take off from water, perform 3D flips and even dive briefly underwater.

The Spry + drone is a dynamic drone for filming Boating, Surfing, Wakeboarding, Jet-skiing, Kayaking and Water skiing from a whole new perspective.

Easy to Fly

Fast, waterproof but easy and fun to fly. Fly in GPS mode for automatic hover and hold control or switch to ATTI flight mode for a more direct piloting experience. Circle mode automatically keeps the drone facing a central point as it orbits.

The Science of Design

---

Aerodynamic Frame

The Spry is designed from the ground up to achieve a new compact shape which is streamlined for reduced drag and turbulence.



Heat Dissipation

An array of aluminum heatsinks keeps your hot new drone cool by dissipating heat to the outside of the sealed frame.



Landing Bumpers

Four rubber bumpers absorb vibrations when the Spry lands on the ground.



Hatch Lid

Swellpro's exclusively designed hatch ventilates the airframe while preventing water entry. The lid’s design also prevents water on the skin of the drone from entering the fuselage when the lid is opened.



External Switch ON/OFF

An external waterproof switch allows you to power on or off the spry without opening the hatch lid.



Fly Small, Dream Big

Download User Manual

Please note this is not a toy and we cannot sell to under 16's.

Controller

First-ever Waterproof Remote Controller

Relax and enjoy total freedom while filming, as your Spry remote controller can be used in the rain, sea spray and even dunked shortly in the water. The joysticks, built-in live monitor and all buttons are protected against spray and still work smoothly and precisely.



Camera

Get the Big Picture

---

Adventure in 4K

Being small doesn't mean you have to compromise image quality. The Spry’s onboard camera utilizes a Sony 1/2.3'' CMOS sensor paired with a lens that minimizes fisheye distortion for natural looking images.

With the Spry, record stunning 4K video at 30 frames per second and a max bit rate of 64mbps, or take crisp 12MP photos.



Stabilization

The Spry combines a vertical axis mechanical gimbal with electronic image stabilization to provide smooth and fluid video capture. Your action footage will look good straight out of the camera – ready for sharing.

Camera Dome

The Spry‘s 4K camera is completely enclosed in an optically-engineered glass dome to provide high transparency without distortion. A specially designed shade surrounding the dome filters out excessive glare to balance the harsh highlights often found on the water and snow.

Features

Smart Features

---

Follow Me

The latest movement algorithms are built-in to make the auto follow-me function smarter and more sensitive. Spry will follow you at a set distance and height - whether you are moving forward or backward, leading or chasing. The camera always keeps you in the frame - no matter where your next move is. Achieve awesome footage single-handed.

Follow Orbit

Just flick a switch and the Spry will change from follow to orbit mode, smoothly capturing a 360-degree orbital pan of the action. Track a moving subject and change between follow and orbit for slick action videos.

Two orbits mode allow you to capture the action from all angles.  Choose the radius and speed of orbit and the Spry will track around a point of interest. Turn on Follow Me mode and the Spry will keep the remote controller’s position in the middle of its circle - even if it is moving.

Return to Boat

When you’re out on the water, you need a drone that keeps up with you. Most drones will return to their launch point if they lose reception. When the Spry flies out of range or you want it to return to you, the drone will automatically return to the position of the remote controller – wherever you are. With our "Return to Me" feature, your Spry will return to you even on a moving boat.

ACRO flight mode – for VERY ADVANCED PILOTS ONLY


In this mode, the aircraft's gyroscopes, GPS, barometers and other sensors are not used to stabilize flight. The aircraft is in full manual control. Flight speed and flight attitude are directly controller by the pilot. In this mode, the aircraft will not hover unless the pilot maintains a balanced throttle. Flight speed will be particularly fast. The drone can do a variety of flips, including on the surface of the water and other acrobatic actions.

Enhanced Controls

Even more smart features are available by pairing your mobile device to the remote controller with the Spry APP control.



• One Key Launch
• Autonomous Navigation
• Tap-to-Fly
• Orbit Flights
• Auto-Return

High-thrust motors and high-power ESCs push the speed limit of the Spry to over 40 MPH in manual mode.

The Spry drone is a perfect filming tool for

• Boating
• Surfing Wakeboarding
• Jet-skiing Kayaking Water skiing

Spec Sheet

Drone

• Aircraft Waterproof Level: IP67
• Diameter (motor to motor): 270mm
• Dimensions (LxWxH): 233.5 x 249 x 90mm
• Weight: 780g (with battery)
• Propulsion Motors: Brushless 2206 1420KV
• Motor Control ESC: 30A
• Propellers: #6045
• Aircraft Battery: 3S 2800mAh HiLV
• Battery Weight: 222g
• Charging Time: 90 Minutes
• Video Transmitter: 5.8G 8CH
• Video Transmission Power: 200mW
• Flight Time: 15~17 mins
• Max Flying Range: 800m
• Max Flying Altitude: 200m
• Max Flying Speed: 18m/s (65 km/h)
• Max Climbing Speed: 4m/s (240m/min)
• Max Following Speed: 10m/s (36 km/h)
• Spatial Positioning System: Dual Satellites - GPS/GLONASS
• Hovering Precision: ±0.5m
• Wind Resistance: < 10m/s
• Working Temperature: -10C°~ 40C°
• Proprietary Flight Controller: Yes
• OSD integrated (On Screen Display): Yes
• Mobile APP control: Yes
• Flight modes: Auto-take off, Auto-hover, Follow me, Return to remote controller location, Orbit fly, tap fly, Autonomous navigation

Remote Controller

• Waterproof Level: IP67 (float on water)
• Weight: 560g (including battery)
• Frequency Band: 2405 ~ 2475HM
• Number of Channels: 8ch
• Controlling Range: 0.8 KM
• Receiver Sensitivity (1%PER): -105dbm
• Working Current: 120 mA
• Battery Capacity: Built in 2S 2000mAh LiPo
• Working hour: 2hours
• Charging Time: 90 Minutes

FPV Monitor

• Frequency Band: 5645 ~ 5965HMZ
• Screen Size: 4.3 inch
• Resolution: 800 x 480 Pixels
• Brightness: 600 cd/m²

Camera

• Image Sensor: SONY 1/2.3” CMOS, 1200M
• Lens: F4.53mm f/2.65
• FOV: 92.6°
• ISO Range: 100-1600
• Photo Resolution: 12MP (16:9)
• Video Resolution: 4K 30FPS (3840*2160) | 2.5K 60FPS (2560*1440) | 1080P 30/60/120FPS (1920*1080) | 720P 240FPS (1280*720)
• Max Video Bitrate: 64mbps
• Photo Format: JPEG
• Video Format: MOV MP4
• Storage: Class 10 high speed or UHS-1 Micro SD card and above specifications Micro SD card, maximum support 64GB

Video

Product Description

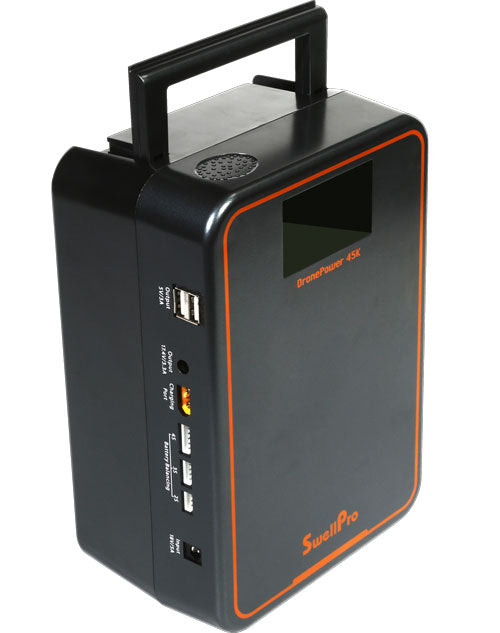

Drone Power 45K

The World’s Largest Capacity Drone Power Bank

One Stone for All Birds

DronePower is a universal power bank for the most common 2S/3S/4S Lithium-technology drone batteries as well as DJI-series smart batteries and USB devices. It comes with dedicated charging cables for DJI Phantom 3/4, Mavic and Spark series. There are also outlets for batteries of other model aircraft and racing quadcopters.

Supercharge Your Creativity

The SwellPro DronePower 45K packs a huge 45,000mAh of charging capacity into a compact, convenient and intelligent power station to fast charge your drone batteries.

Add the world's highest capacity powerpack to your flying kit and enjoy up to 15 charges for your Mavic, 9 charges for your Phantom, or 8 charges of your Splash Drone without going near a power point.

Just like having a bag full of spare batteries!

Charge in a Flash

The intelligent, high power output of the DronePower 45K power bank enables you to fully charge a hobby lipo drone battery 50% faster than a standard mains charger.

Smart Management System and Overload Protection

Your batteries and your DronePower are protected against overcharging, over temperature and faults by the DronePower’s inbuilt intelligence.

The LCD display screen indicates the real-time status of the power station and the battery being charged. When the battery is fully charged, the DronePower will automatically stop the charge process to protect your precious lithium cells.

Anywhere, Anytime

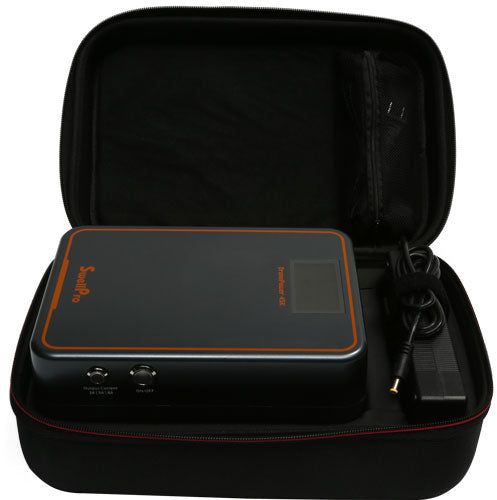

The SwellPro DronePower 45K is by far the smallest and most lightweight power station for its capacity. Its ultra-portable design incorporates a convenient handle and a carrying case to get you mobile.

Spec Sheet

Capacity:	45000mAh/666WH
DC Input: 18V/5A	18V/5A
Smart Battery Charging Output:	17.4VDC @3~8A
Standard Battery Output:	7.4~16.8VDC @3~8A
USB Output:	5VDC @3A
Dimension:	228x160x103mm
Weight:	7.9LBS/3.6 KG
DronePower Recharge Cycles:	500+
DronePower Recharge Time:	Approx. 6 hours
DronePower Operation Temperature:	0°C ~ 40°C

Product Description

Product Description

This is a replacement GPS module and cover for Splash Drone 3/3+ if yours gets damaged.

1.The cover has a cambered surface, which helps decrease the wind resistance on the fuselage during high speed flight.
The stability and hovering performance are greatly improved.

2. Lift up the GPS module, enlarge the effective area for better satellite collection;

3. Better shielding the GPS module against the inner magnetic interference, dramatically decreased the toilet bowl effects.

4.The stainless fasten screws and silicone gasket are locked on the top cover, no more headache of loosing the screws.

5.Better NANO membrane design that brings better stability and hovering performance.

Product Description

The 620kv Waterproof Brushless Motor is specially designed for SplashDrone 3+ with strong power, stable performance, corrosion resistance, and can work in a variety of complex environments.

NOTE: PLEASE NOTE CW/CCW WHEN YOU PLACE  YOUR ORDER FOR YOUR MOTOR.

Product Description

5.8 GHZ panel antenna for splash drone 3+ effective surface. Improve range of video signal.

Product Description

All in one smart battery balance charger for Splashdrone 3.  Built in power adaptor, directly charged by the balancing lead, one key charge the battery, support 2S,3S and 4S Lipo battery, fast and stable.

The charger starts charging. The four LED will indicate the battery capacity:

1 LED light means battery capacity percentage is 25%,

2 LED lights: 50%,

3 LED lights: 75%,

4 LED lights means battery is fully charged.



SPECIFICATION:

AC Input Voltage:100V-240V

Charge Power:50W

Charge Current:4.0A

Balance Current:300mA

Lipo Battery Cell Count: 2 -4 Cells

Indication : 4xLED

Charge Mode :Balance Charge

Dimension : 98x98x36mm

Weight :278G

Overview

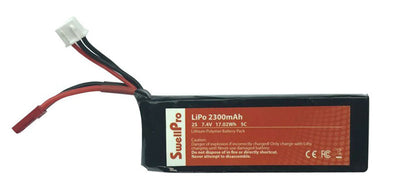

The 2300mAh 2S 10C high discharge LiPo Battery for Splash Drone 3/3+ version remote controller.

1. Size: 110x35x15mm
2. Weight: about 250 grams
3. Voltage: 7.4V
4. Capacity: 2300mAH
5. Discharge Current: 10C continuous discharge

Product Description

The Splash Drone quick-release landing gear is made by carbon fibre tubes, rubber joints and CNC machined alloy screw parts.

With this quick-release landing gear, you can easily switch your Mariner from FPV fly into waterproof fly with or without a camera.



Product Description

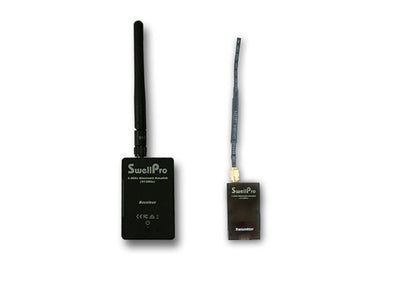

The SplashDrone 3+ autonomous ground station module is a radio link, which integrated with FM 433mHz/915Hz radio frequency and bluetooth technology. It is a bridge to the mobile phone and the drone. Works with the Swellpro Fly APP.

This product enables features on the Splash Drone 3+ such as

• Follow Me
• Mission Planning
• Circling Flight
• Tap To Fly
• Lost Drone Location Beacon

Product Description

1. Integrated remote controller with redesigned controls to maximize ease of use and efficiency;

2. Fully integrated high quality 5" FPV screen;

3. See live video and OSD data without any additional equipment;

4. Sleek and ergonomic design;

5. 40 channels diversity receiver.

Product Description

With the PL2, people can use SplashDrone 3+ to do airdrop work, like dropping fishing bait when doing beach fishing, or dropping Life Buoy for Search & Rescue.

1. Payload Capacity: 1KG.

2. Size: 120X70X38mm

3. Weight: 134g

4. Sensor: PC7070 NTSC/PAL

5. Pixels: 656x492pixels(NTSC)

6. Resolution: 800TVL (720P)

7. FOV: 110°NTSC

8. DC IN: 12V(+/-10%)



Spec Sheet

Payload
Waterproof Level:	IP67
Take-off Weight：	1KG
Size：	120X70X38mm
Line length：	340mm
Weight：	134g
Camera
Sensor:	PC7070 NTSC/PAL
Pixels：	656x492pixels(NTSC)
FOV：	110°NTSC
DC IN：	12V(+/-10%)

Product Description

The 5200mAh 14.8V 25C 4 Cell Lipo Battery is specially designed for the Splash Drone. Compact size, longer flight time and good quality. Up to 15 minutes fly time with full AUTO configuration (Gimbal, camera, live video etc). Up to 20 minutes when it’s empty loaded. We can not ship these on their own.

 TECHNICAL SPECIFICATION:

1. Size: 140 x 44x 41 mm
2. Weight: about 510 grams
3. Voltage: 14.8V
4. Capacity: 5200mAH
5. Discharge Current: 25C continuous discharge

PACKAGE CONTENT:

5200 Lipo battery×1

 Product Description

1. Can be used to carry long fishing line and drop baits at a long distance.
2. Attach fishing line into the rig, fly out the drone to planned location and drop baits on target place with remote controller.
3. With high payload capacity up to 1kg. it is much safer than a DIY fishing rig.
4.The rig is centralised under Splash drone's frame for equal loading.
5. After spotting the best fishing area, installing the rig just take a few seconds.
6. The rig is directly powered by Splash drone's battery through a waterproof quick-released plug.
7. It is capable of dropping bait within 1km away.
8. It is completely compatible with Splash drone without interference to the radio connection, video transmission and GPS precision.
9. 100% waterproof and anti-corrosion.
10. Made from high precision CNC aluminum and stainless steel.
11. Sleek and simple design, only weighs 134g.

12. The payload release rig also allows Splash drone to do jobs like delivering lifesaving equipments such as life jackets and floats for search and rescue.

Overview

The sunshade reduces glare and enhances screen visibility when flying the Fisherman Max or Fisherman 3 in bright sunlight. It's lightweight, durable, and easily clips onto the controller's screen.

Material: PC

Weight: 70g / 0.15lbs

Size: 130*98*125 mm / 5*3.8*4.9 inch
